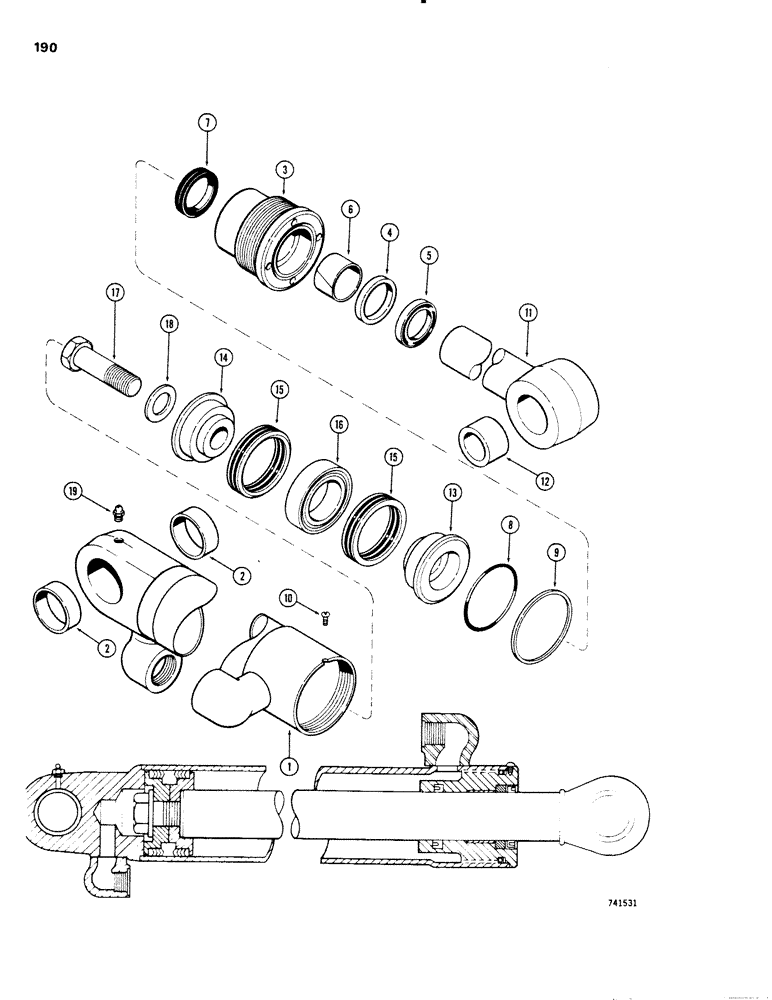

Запчасти Case W20 (190) - G33592 AND G33593 TILT CYLINDERS, GLAND IS STAMPED WITH CYLINDER PART NUMBER (08) - HYDRAULICS

G33592

HYDRAULIC CYLINDER

CYLINDER - tilt, R.H., 4" dia. x 28-3/8" stroke (102 mm x 721 mm)

1шт.

G33593

CYLINDER

- tilt, L.H., 4" dia. x 28-3/8" stroke (102 mm x 721 mm), Includes: Ref. 1 - 19

1шт.

1

G32840

TUBE,41.44" L

- G33492 cylinder

1шт.

1

G32841

TUBE

- G33493 cylinder, Includes: Ref. 2

1шт.

2

D44543

BUSHING,63.75mm ID x 76.2mm OD x 19.3mm L

- tube

2шт.

G34331

GLAND

ASSEMBLY, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND

1шт.

4

NSS

NOT SOLD SEPARAT

RING- center bearing

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal KIT, P/N G34594

1шт.

6

G34322

BEARING

- center

1шт.

Part of Seal KIT, P/N G34594

1шт.

7

D36971

RING

SEAL - piston rod

1шт.

Part of Seal KIT, P/N G34594

1шт.

Part of Piston Rod SEAL, P/N G100778

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O"RING - gland

1шт.

Part of Seal KIT, P/N G34594

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal KIT, P/N G34594

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, #8 - 32 NC x 1/4"

1шт.

11

G33594

PISTON

ROD - piston, 2" dia. (51 mm), Includes: Ref. 12

1шт.

12

D43223

BUSHING

- piston rod

1шт.

13

G33159

PISTON

- split (rod end)

1шт.

14

D46930

PISTON

- split (bolt end)

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston ("V" type)

2шт.

Part of Seal KIT, P/N G34594

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

18

G32351

WASHER

- hardened

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

G34594

SEAL

KIT - seal, Includes: Refs. 5-9 and 15.

1шт.

G100778

SEAL

- piston rod (Service option - extreme heat or cold) Includes Ref. 7.

1шт.
