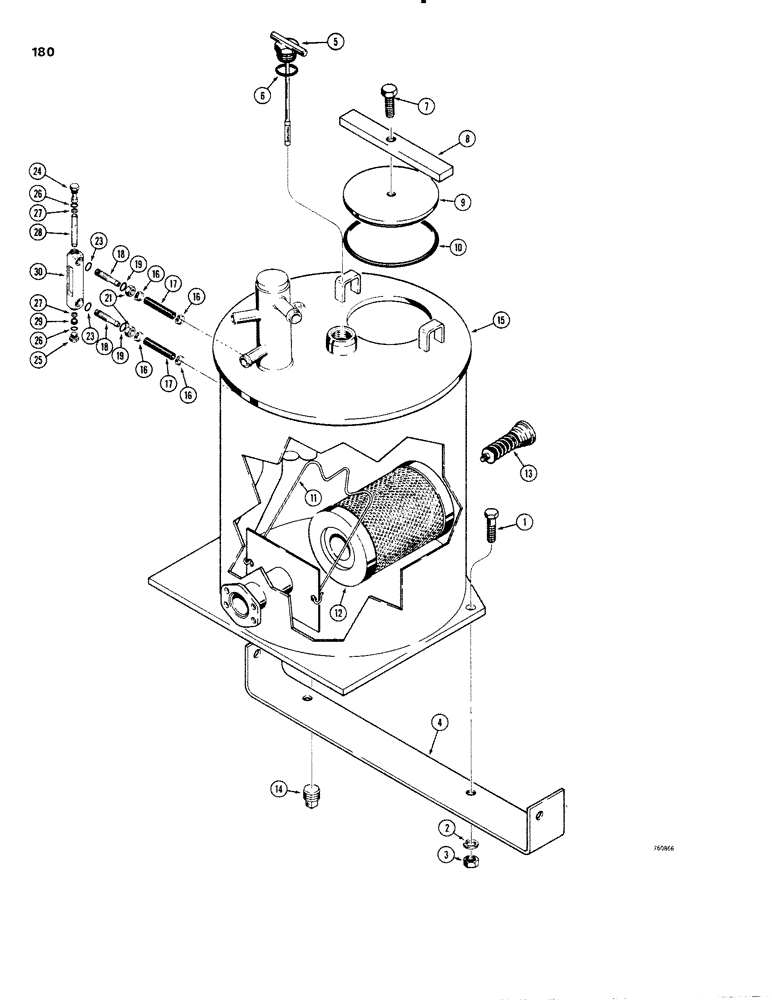

Запчасти Case W20 (180) - HYDRAULIC TANK AND RELATED PARTS (08) - HYDRAULICS

1

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

5шт.

2

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

3

25-1010

NUT,5/8"-11, G5

5шт.

4

L51640

BRACKET

SUPPORT - hydraulic tank

1шт.

L76607

TANK - assembly, Includes: Ref. 5 - 15

1шт.

5

L16680

GAUGE

- oil level

1шт.

6

218-5012

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

SEAL - O-ring

1шт.

7

113-419

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5, Full Thd

Hex, 1/2"-13 x 2 1/2", G5, Full Thd, Cover holddown

1шт.

8

L50741

BAR

- cover holddown

1шт.

9

L55406

COVER

- hydraulic tank

1шт.

10

L55410

O-RING,0.275" Thk x 7.22" ID, -442, Cl 5, 75 Duro

1шт.

11

L51089

SPRING

- filter holddown

1шт.

12

L50384

FILTER, ELEMENT

FILTER - hydraulic tank

1шт.

13

L50383

VALVE

- relief, bypass

1шт.

14

221-677

DRAIN PLUG,Sq Hd, 3/4" NPT

PLUG - magnetic drain

1шт.

15

NSS

NOT SOLD SEPARAT

TANK - hydraulic

1шт.

16

214-252

HOSE CLAMP,#08, 0.5" - 0.91", Type F Worm

CLAMP - hose

4шт.

17

L76605

HOSE,0.38" ID x 3.00", SAE 30R2 Type I

0.38" ID x 3.00", SAE 30R2

2шт.

18

L76606

FITTING - hose barb

2шт.

L70550

ELECTRICAL GAUGE

GAUGE - sight, Includes: Ref. 20 - 30

1шт.

20

NSS

NOT SOLD SEPARAT

STUD - mount (Not used - not shown)

2шт.

21

131-402

NUT,PAL, 1/2"-20

NUT - hex. 1/2" - 20 NF

2шт.

22

92-8

LOCK WASHER,1/2"

(Not used - not shown) 1/2"

2шт.

23

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

2шт.

24

NSS

NOT SOLD SEPARAT

CAP - top

1шт.

25

NSS

NOT SOLD SEPARAT

CAP - bottom

1шт.

26

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

2шт.

27

D75819

GASKET

2шт.

28

D75845

SIGHTGLASS

SIGHT - glass

1шт.

29

NSS

NOT SOLD SEPARAT

INSERT

1шт.

30

NSS

NOT SOLD SEPARAT

BODY

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.
