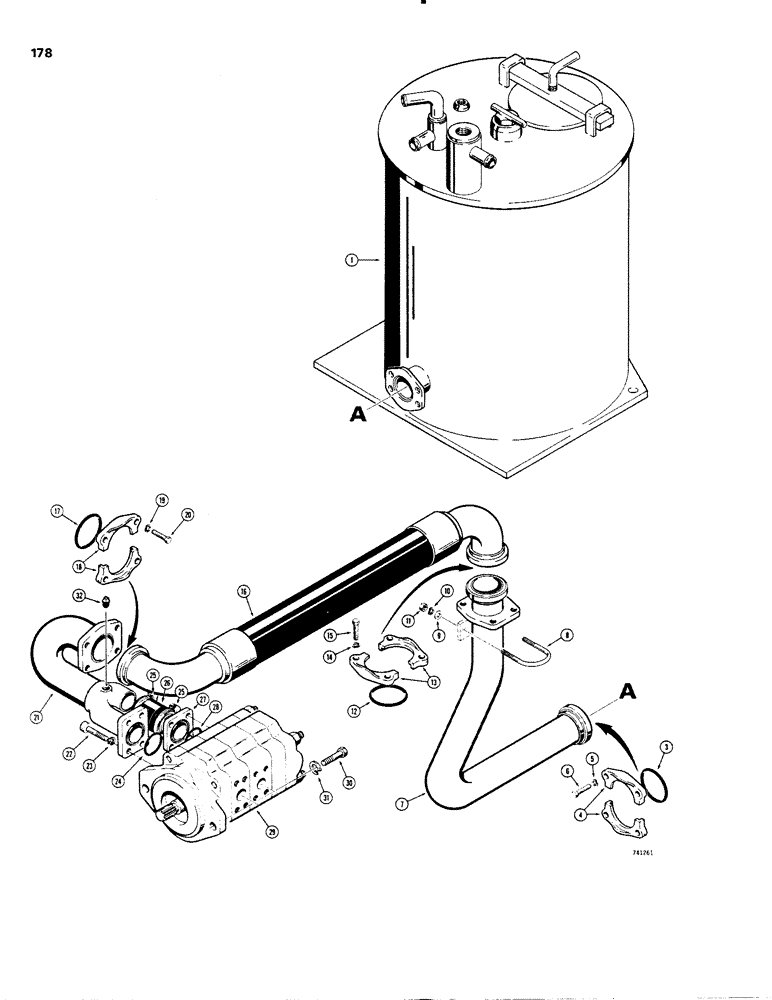

Запчасти Case W20 (178) - BASIC HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
TANK - hydraulic, parts list figure 180
1шт.
3
A14506
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
SEAL - "O"ring
1шт.
4
A14141
FLANGE
- split, tube
2шт.
5
92-8
LOCK WASHER,1/2"
4шт.
6
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
4шт.
7
L52268
TUBE,15, 9.75" L
- suction, at tank
1шт.
8
L59227
BOLT (SPREADER)
CLAMP - "U" bolt, tube
1шт.
9
95-6
WASHER,3/8"
- standard wrot, () 3/8"
2шт.
10
92-6
LOCK WASHER,3/8"
2шт.
11
25-116
NUT,Hex, 3/8"-24, G5
- hex., 3/8" - 24 NF
2шт.
12
A14506
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
SEAL - "O"ring
1шт.
13
A14141
FLANGE
- split, tube
2шт.
14
92-8
LOCK WASHER,1/2"
4шт.
15
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
4шт.
16
L51630
HOSE
- hydraulic, Serial Range: tank-pump
1шт.
17
A27996
O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro
SEAL - "O"ring
1шт.
18
L14386
CLAMP
FLANGE - split, tube
2шт.
19
92-8
LOCK WASHER,1/2"
4шт.
20
13-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5
HHCS - 1/2" - 13 NC x 1-3/4"
4шт.
21
L47345
TUBE
- suction
1шт.
22
61-816
HEX SOC SCREW,1/2"-13 x 1"
SCREW - hex. socket head (1/2" - 13 NC x 1")
8шт.
23
92-8
LOCK WASHER,1/2"
8шт.
24
A14506
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
SEAL - "O"ring
1шт.
25
214-260
HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm
2шт.
26
A15675
INTAKE AIR HOSE,50.80 mm ID x 63.50 mm, SAE 20R1
HOSE 2.00" ID x 2.50", SAE 20R1 - Low pressure
1шт.
27
L17812
FLANGE
- tube
1шт.
28
A14515
O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro
SEAL - "O"ring
1шт.
29
L26895
PUMP
ASSEMBLY - hydraulic, parts list figure 192
1шт.
L26895R
REMAN-HYD PUMP
W20 CASE WHEEL LOADER W/POD CAB - NEW YORK STATE SPECIAL
1шт.
L26895C
CORE-HYDRAULIC PUMP
Return Number
1шт.
30
13-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd
2шт.
32
221-12
PLUG,Sq Hd, 1/4"-18
- 1/2" NPT
1шт.
Выбрано товаров: 33
