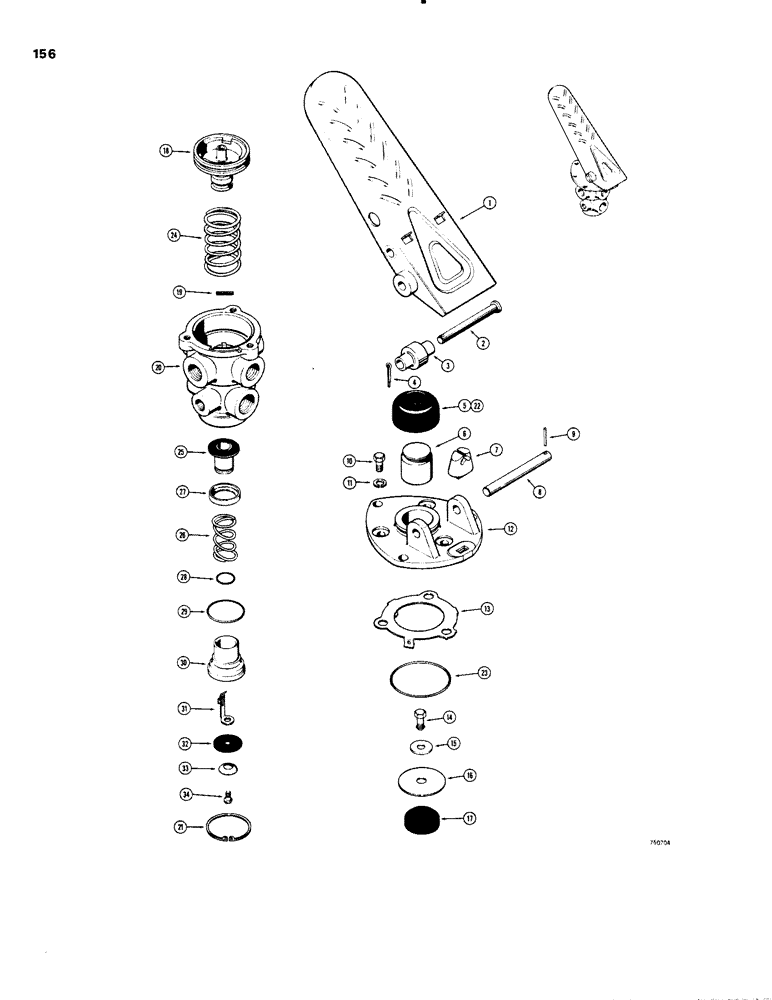

Запчасти Case W20 (156) - L44173 TREADLE AND BRAKE VALVE (07) - BRAKES

L44173

VALVE

TREADLE AND VALVE ASSEMBLY - brake, Includes: Ref. 1 - 34

1шт.

1

L32927

PEDAL

TREADLE - brake valve

1шт.

2

L31367

PIN

- roller, treadle valve

1шт.

3

L32676

ROLLER

- treadle valve

1шт.

4

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

5

L32730

BOOT

- treadle, brake (Included in L31806 repair kit)

1шт.

6

L32925

PLUNGER

- treadle, brake

1шт.

7

L31362

BUTTON

- stop, treadle (Brake)

1шт.

8

L31465

PIN

- fulcrum, treadle (Brake)

1шт.

9

138-59

LOCK PIN,1/8" x 7/8", Slotted

PIN, , Fulcrum pin 1/8" x 7/8", Slotted

1шт.

10

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

(Plate to brake valve) Hex, 5/16"-18 x 3/4", G5, Full Thd

3шт.

11

92-5

LOCK WASHER,5/16"

3шт.

12

L32924

PLATE ASSY.

PLATE - mounting, brake treadle

1шт.

L31360

VALVE

ASSEMBLY - brake, Includes: Ref. 13 - 34

1шт.

13

L31382

- valve

1шт.

L31380

PISTON

ASSEMBLY - valve, Includes: Ref. 14 - 18

1шт.

14

L31384

LOCK BOLT,Hex, 1/4" - 20 x 5/8"

BOLT - locking, special

1шт.

15

L31387

WASHER

- compression, spring

1шт.

16

L31386

SEAT

- spring, piston

1шт.

17

L31385

SPRING

- rubber, piston

1шт.

18

L31383

PISTON

- valve

1шт.

19

L31459

FILTER

- vent

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

21

D27833

SNAP RING,1.625", Int, #162

Ring, Snap, , washer 1.625", Int, #162

1шт.

L31806

KIT

- repair, valve, Includes: Ref. 22 - 34

1шт.

22

L32730

BOOT

- treadle, brake

1шт.

23

L31381

O-RING,2 1/8" ID x 2 3/8" OD x 1/8"

SEAL - "O"ring, piston

1шт.

24

L31379

SPRING

- return, piston

1шт.

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - inlet and exhaust, Includes: Ref. 25 - 34

1шт.

25

L31375

VALVE

- inlet and exhaust

1шт.

26

L31378

VALVE SPRING

SPRING - valve

1шт.

27

L31376

RETAINER

- valve

1шт.

28

L31377

O-RING,5/8" ID x 3/4" OD x 1/16"

SEAL - "O"ring, valve

1шт.

29

L31374

O-RING

SEAL - "O"ring, exhaust check valve

1шт.

30

L31370

SEAT

- check valve, exhaust

1шт.

31

L31371

SPRING

- preload, inlet valve

1шт.

32

L31372

DIAPHRAGM

- valve

1шт.

33

L31373

WASHER

- diaphragm, valve

1шт.

34

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- machine, slotted head (#8 - 32 NC x 3/8")

1шт.
