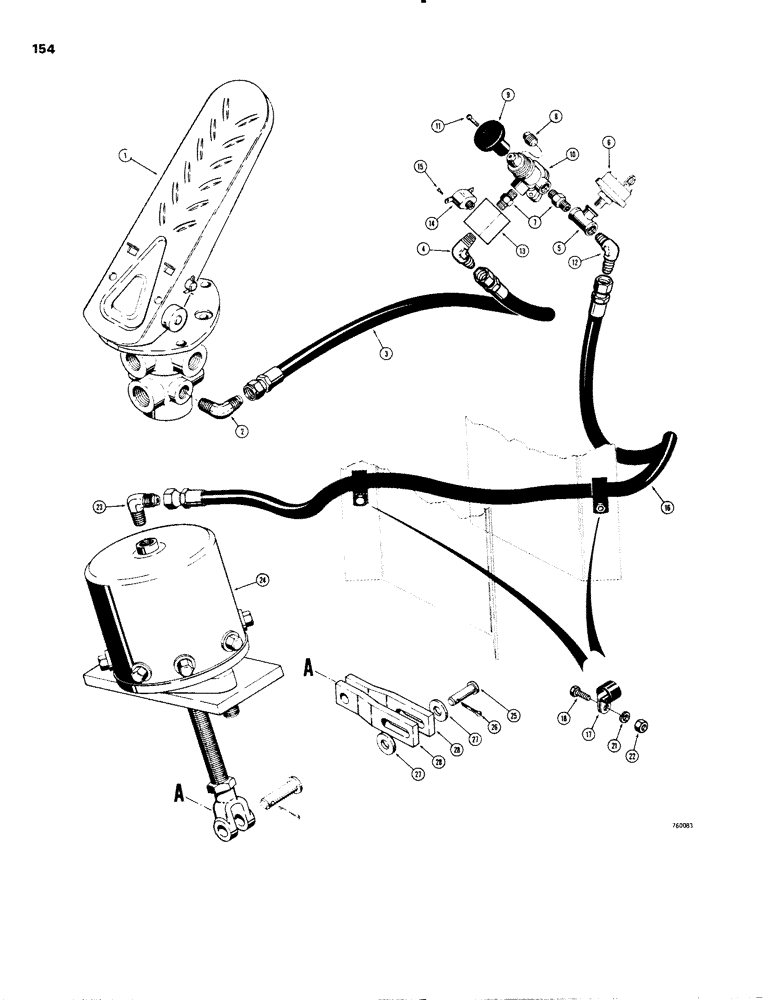

Запчасти Case W20 (154) - BRAKE SYSTEM, EMERGENCY BRAKE VALVE TO SAFETY CHAMBER (07) - BRAKES

1

L44173

VALVE

TREADLE ASSEMBLY - brake, R.H., parts list figure 156

1шт.

2

218-419

ELBOW - 90 degree, male

1шт.

3

L48029

HOSE

- pressure gauge, 40" long (1016 mm)

1шт.

4

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 40 degree, male

1шт.

5

221-421

TEE,1/8" NPT

- pipe, () 1/8" NPT

1шт.

6

L57937

SWITCH

SENDING UNIT - air pressure

1шт.

7

217-1071

HYD CONNECTOR,1/4" - 18NPTF x 1/8" - 27 NPTF

CONNECTOR - straight, male

2шт.

8

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, square head (1/8" NPT)

1шт.

L52178

VALVE

ASSEMBLY - emergency brake, Includes: Ref. 9 - 11

1шт.

9

L35267

KNOB

- brake

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

11

169-146

SCREW,Phil Fil Hd, #8 - 32 x 3/8"

RHMS - phillips, #8 - 32 NC x 3/8"

1шт.

12

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree

1шт.

13

L13273

UNION TEE

TEE - special, emergency brake line

1шт.

14

L48480

SWITCH

- pressure

1шт.

15

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- #8 - 32 NC x 1/4"

2шт.

16

L48120

HOSE

- safety chamber, 82" long (2083 mm)

1шт.

17

49838

CLAMP

- hose mounting

4шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

21

92-6

LOCK WASHER,3/8"

2шт.

22

25-106

NUT,3/8"-16, G5

- hex. 3/8" - 16 NC

2шт.

23

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

24

L48127

CHAMBER

ASSEMBLY - safety, parts list figure 160

1шт.

25

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, 7/16" dia.

1шт.

26

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

27

95-7

WASHER,7/16"

- standard wrot () 7/16"

2шт.

28

L48108

LINK

- safety chamber to transmission brake

2шт.
