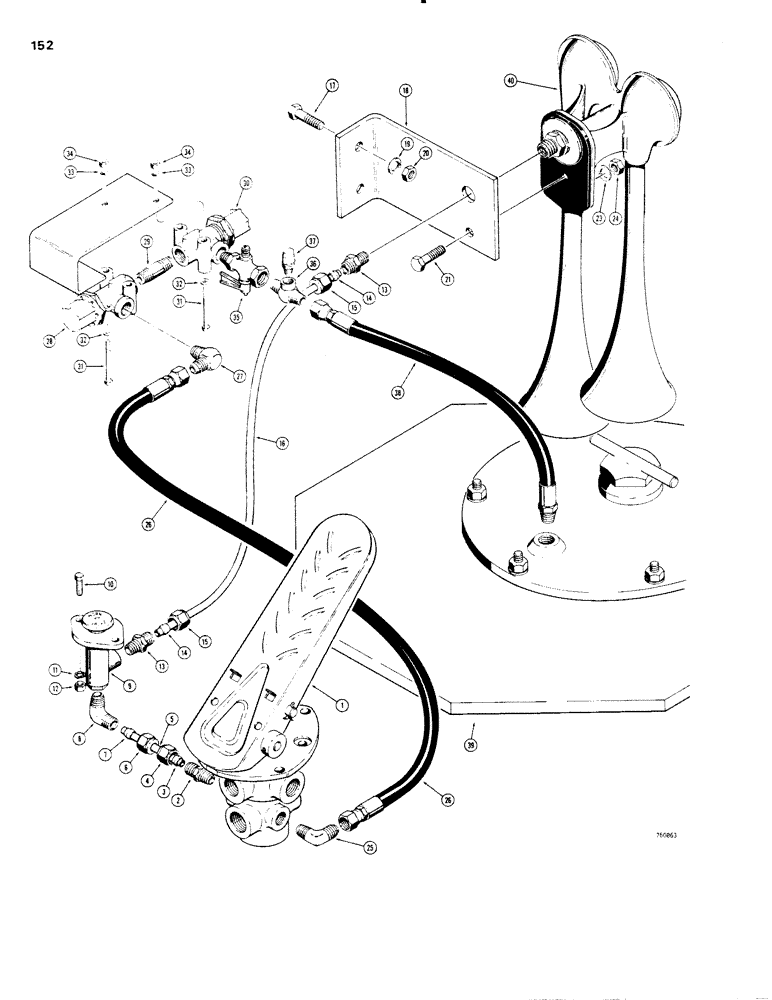

Запчасти Case W20 (152) - BRAKE SYSTEM, TREADLE TO HYDRAULIC TANK AND HORN (07) - BRAKES

1

L44173

VALVE

TREADLE AND VALVE ASSY. - brake, parts list figure 156

1шт.

222-2630

FITTING,7/16"-24 x 1/4" NPT, Comp

- compression, straight, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - compression

1шт.

5

L48193

TUBE,0.25" OD

- treadle to horn valve

1шт.

222-2645

ELBOW,90 Degree, 7/16"-24 x 1/4" NPT, Comp

FITTING - 90 degree, compression, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

NUT - compression

1шт.

7

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

8

NSS

NOT SOLD SEPARAT

BODY

1шт.

9

L12647

VALVE

- horn, air, parts list figure 164

1шт.

10

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

25-104

NUT,1/4"-20, G5

2шт.

222-2625

FITTING,7/16"-24 x 1/8" NPT, Comp

- compression, straight, Includes: Ref. 13 - 15

2шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

15

NSS

NOT SOLD SEPARAT

NUT - compression

1шт.

16

L48191

TUBE,0.25" OD

- horn valve to horn

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

18

L48196

BRACKET

- mounting, horn

1шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

21

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

25

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- male, 90 degree

1шт.

26

L48025

HOSE

- 23" long (584 mm)

1шт.

27

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, male

1шт.

28

L13530

VALVE

- pressure protection, parts list figure 164

1шт.

29

217-201

PIPE,Nipple, 1/4" NPT x 15/16"

NIPPLE - pipe, 1/4" NPT x 7/8" long (Brass)

1шт.

30

L48129

VALVE

- regulator, pressure, parts list figure 162

1шт.

31

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

32

95-4

WASHER,1/4"

- plain () 1/4"

2шт.

33

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

34

25-104

NUT,1/4"-20, G5

2шт.

35

L53739

VALVE

- air shut-off

1шт.

36

L48132

FITTING

- tee, air supply

1шт.

37

D38663

VENT

VALVE - relief

1шт.

38

L48026

HOSE

- 16" long (406 mm)

1шт.

39

REF

INSTRUCTION

TANK - hydraulic

1шт.

40

L76560

HORN

ASSEMBLY - air, parts list figure 164

1шт.
