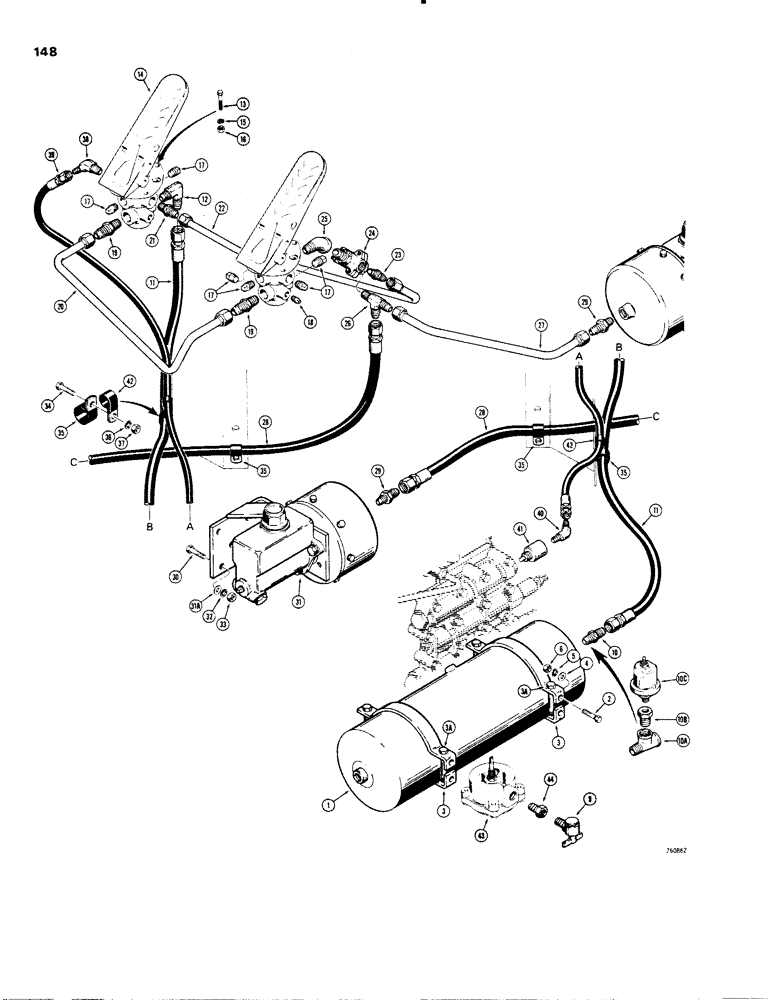

Запчасти Case W20 (148) - BRAKE SYSTEM, RESERVOIR TO TREADLES, MASTER CYLINDERS AND CLUTCH CUTOUT (07) - BRAKES

1

L14823

TANK

RESERVOIR - air, brake system

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

3

L12632

BRACKET

- mounting, reservoir

2шт.

3a

17-696

BOLT,Sq Hd, 3/8" - 16 x 6", Gr 2

- sq. head, 3/8" - 16 NC x 6"

4шт.

4

95-6

WASHER,3/8"

- plain () 3/8"

4шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

9

E71648

VALVE

- drain, moisture

1шт.

10

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight

1шт.

10a

221-693

TEE,1/2" NPT

- 1/2" x 1/2" x 1/2" NPT

1шт.

10b

221-54

BUSHING

- reducing, 1/2" x 1/8" NPT

1шт.

10c

L57176

SENDER UNIT

SENDER - air pressure

1шт.

11

L48030

HOSE

- 82" (2083 mm)

1шт.

12

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degree

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

14

L44173

VALVE

TREADLE AND VALVE ASSEMBLY - brake control, parts list figure 156

2шт.

15

92-5

LOCK WASHER,5/16"

6шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

6шт.

17

221-4

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG - pipe, square head (1/2" NPT)

6шт.

18

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

19

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight

2шт.

20

L48137

TUBE,0.625" OD

- connecting, R.H. to L.H. treadle

1шт.

21

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - male, straight

1шт.

22

L48187

TUBE,0.5" OD

- treadles to master cylinders

1шт.

23

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - male, straight

1шт.

24

L48128

VALVE

- double check, air

1шт.

25

221-1404

ELBOW,45 Degree, 1/2"-14, NPT

- street, 45 degree (1/2" NPT)

1шт.

26

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

Male 3/4"-16, 37º x 3/8"-18, NPTF Run

1шт.

27

L48113

TUBE,0.5" OD x 20.3, 11.6" L

- tee to front master cylinder

1шт.

28

L48030

HOSE

- 82" (2083 mm)

1шт.

29

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

FITTING - straight, male

2шт.

30

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

4шт.

31

L40663

CYLINDER

MASTER CYLINDER - brake, front and rear, parts list figure 158

2шт.

31a

95-6

WASHER,3/8"

- flat () 3/8"

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

35

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- hose to frame brackets

4шт.

36

92-6

LOCK WASHER,3/8"

4шт.

37

25-106

NUT,3/8"-16, G5

- (3/8" - 16 NC)

4шт.

38

218-1096

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/2"-14, NPTF

- male, 45 degree

1шт.

39

L48061

HOSE

- 52" (1321 mm)

1шт.

40

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

male 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

41

L12627

CYLINDER

- clutch cutout

1шт.

42

49838

CLAMP

- hose

2шт.

43

L76564

PLUG, DRAIN

DRAIN - automatic

1шт.

44

221-1053

BUSHING

- reducing, 3/8" x 1/4" NPT

1шт.
