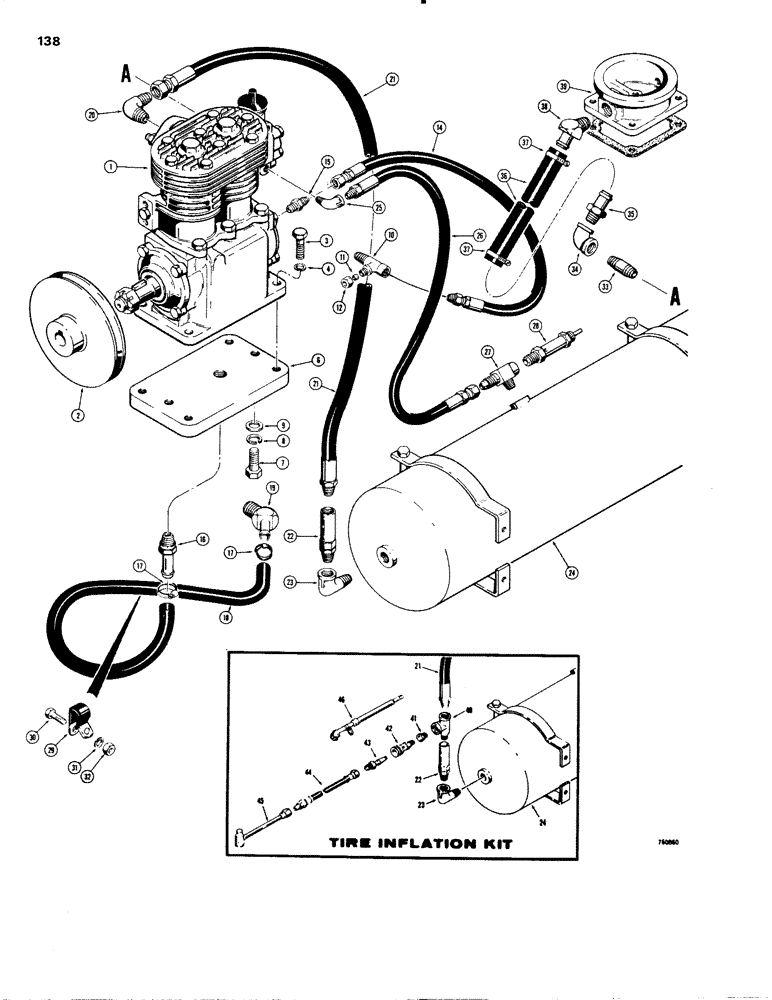

Запчасти Case W20 (138) - BRAKE SYSTEM, AIR COMPRESSOR MOUNTING, RESERVOIR AND RELATED PARTS (07) - BRAKES

1

L57774

COMPRESSOR

- air, brake (Parts list figures 140 and 142)

1шт.

2

L57805

PULLEY

- drive, compressor

1шт.

3

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

Compressor to plate Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

4

92-7

LOCK WASHER,7/16"

4шт.

6

L71527

PANEL

PLATE - mounting, compressor

1шт.

7

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Mounting plate to front engine mount Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

8

92-8

LOCK WASHER,1/2"

2шт.

9

195-2060

WASHER - plain (1/2")

2шт.

222-82

TEE,1/2"-12 Male x 1/8 NPT Fem Run x 1/8 NPT Br

ASSEMBLY - flex tube, 1/4" tube, Includes: Ref. 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

TEE - flex tube

1шт.

11

222-102

SLEEVE,1/4" Tube

1шт.

12

87017024

TUBE NUT,1/2"-24

NUT - flex tube

1шт.

14

L16575

HOSE

- lubrication, 17" long (432 mm)

1шт.

15

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male, straight

1шт.

16

217-152

FITTING,1/2" Hose Barb x 3/8" Male NPTF

1шт.

17

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

2шт.

18

L41213

HOSE

- lubrication, compressor return

1шт.

19

217-186

FITTING,45 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

ELBOW - 45 degree, male (Hose stem type)

1шт.

20

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - 90 degree, male

1шт.

21

L58528

AIR HOSE,0.50" ID x 26.50", SAE 100R1

1шт.

22

L12586

VALVE

- check, air pressure

1шт.

23

221-1414

ELBOW,90 Degree, 1/2"-14, NPT

- street, 90 degree (1/2" NPT)

1шт.

24

L14823

TANK

RESERVOIR - air, brake system

1шт.

25

221-1411

ELBOW,90 Degree, 1/8"-27, NPT

- street, 90 degree (1/8" NPT)

1шт.

26

L47886

HOSE

- 27" long (686 mm)

1шт.

27

L48131

FITTING

TEE - special

1шт.

28

L48992

VALVE,1/4"

ASSEMBLY - safety

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

31

92-6

LOCK WASHER,3/8"

1шт.

32

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

33

221-1190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - pipe, 1/2" NPT x 2"

1шт.

34

221-1377

ELBOW,90 Degree, 1/2" NPT

FITTING - 90 degree, female

1шт.

35

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

- hose barb

1шт.

36

L47888

HOSE

- 5/8" I.D. x 37" (15.7 mm x 940 mm)

1шт.

37

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - worm screw type

2шт.

38

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

39

REF

INSTRUCTION

BASE - air cleaner

1шт.

40

217-1064

TEE,1/2" - 14 Female x 1/2" - 14 Male Run

- pipe, tire inflation kit

1шт.

41

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

Bushing, Tire inflation kit 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

42

L13978

VALVE

CHECK - air, tire inflation kit

1шт.

43

L13979

COUPLING

COUPLER - adapter, tire inflation kit

1шт.

44

L15274

HOSE

- inflation, tire kit

1шт.

45

L13983

FAN

CHUCK - air, tire inflation kit

1шт.

46

L13977

GAUGE ASSY.

GAUGE - tire pressure, inflation kit

1шт.
