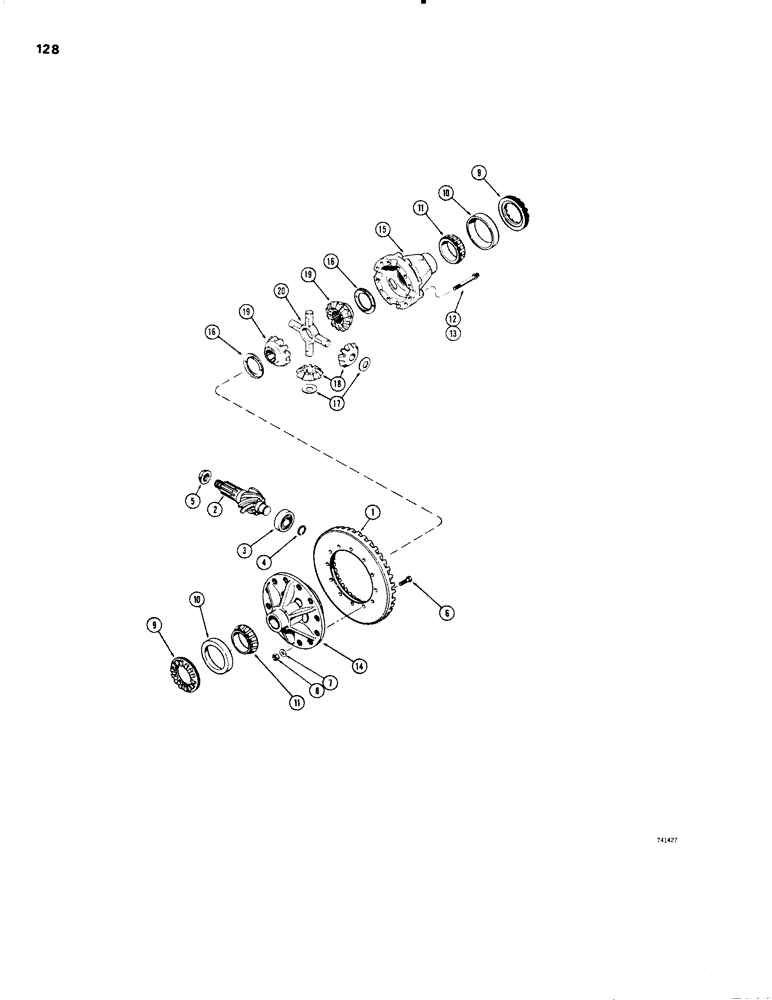

Запчасти Case W20 (128) - L58844 FRONT AND REAR AXLE DIFFERENTIAL, SPIDER AND BEVEL GEAR (06) - POWER TRAIN

L36107

DIFFERENTIAL ASSEMBLY, Includes: Ref. 1 - 20

1шт.

L36018

RING GEAR

BEVEL GEAR SET, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion

1шт.

3

L30387

ROLLER BEARING

BEARING - spigot

1шт.

4

A15442

LOCK

RING - lock

1шт.

5

L35091

NUT

NUT - flange retaining

1шт.

6

L35919

BOLT

- bevel gear mounting

12шт.

7

D47366

WASHER

- special

12шт.

8

131-1138

LOCK NUT,1/2"-13, GC

NUT - hex., lock (1/2" - 13 NC)

12шт.

9

A12942

GASKET

RING - adjusting, differential bearing

2шт.

10

A12946

BEARING CUP

CUP - bearing, differential

2шт.

11

A12944

ROLLER BEARING,2.8125" ID x 1.1875"

CONE - bearng, differential

2шт.

L30670

DIFFERENTIAL

CASE AND GEAR ASSEMBLY - axle, Includes: Ref. 12 - 20

1шт.

12

L34063

BOLT

- special, differential case (Long)

8шт.

13

L34062

BOLT

- special, differential case (Short)

4шт.

14

NSS

NOT SOLD SEPARAT

CASE - differential, flange half

1шт.

15

NSS

NOT SOLD SEPARAT

CASE - differential, plain half

1шт.

16

A12979

WASHER

- thrust, side gear

2шт.

17

A12976

WASHER

- thrust, pinion

4шт.

18

A12975

GEAR

- pinion

4шт.

19

A12978

GEAR

- side

2шт.

20

A12974

U-JOINT SPIDER

SPIDER - differential

1шт.
