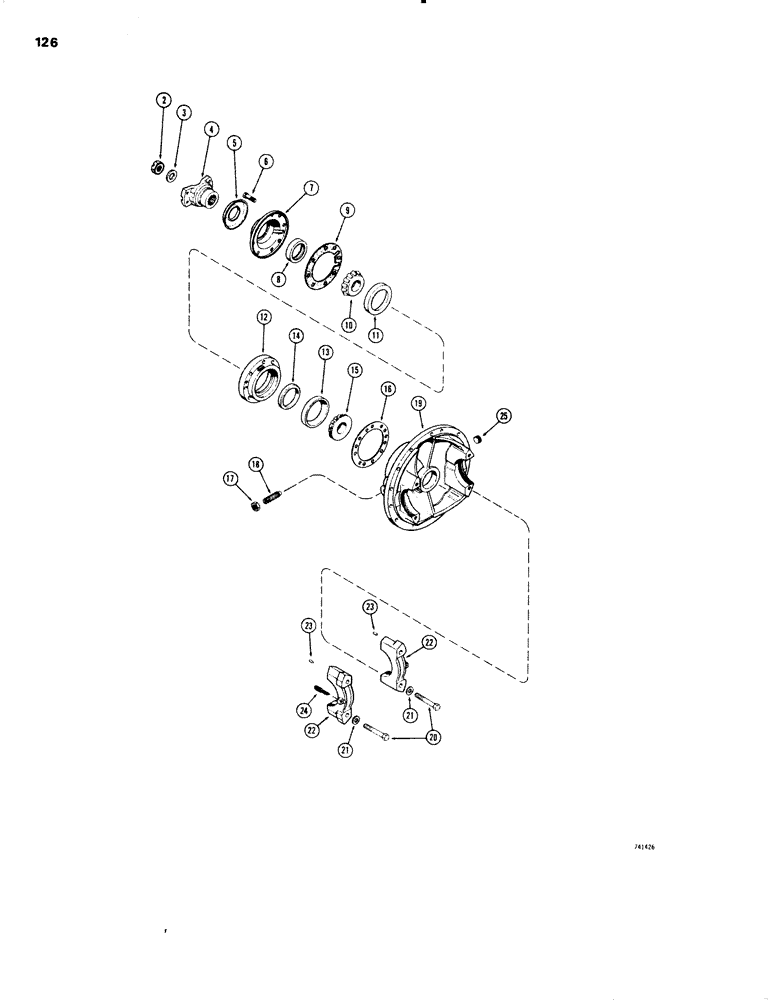

Запчасти Case W20 (126) - L58844 FRONT AND REAR AXLE DIFFERENTIAL, CARRIER, COVER AND YOKE (06) - POWER TRAIN

L36107

DIFFERENTIAL ASSEMBLY, Includes: Ref. 2 - 25

1шт.

2

L35091

NUT

NUT - hex., self-locking (Yoke mountng)

1шт.

3

A13124

WASHER

- yoke retaining

1шт.

L32491

YOKE

ASSEMBLY - rear axle drive shaft, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

YOKE - rear axle drive shaft

1шт.

5

A12952

CYLINDER END CAP

SLINGER - oil

1шт.

6

26-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

HHCS - 7/16" - 14 NC x 1-3/4"

8шт.

A12954

COVER ASSY

COVER ASSEMBLY - pinion shaft, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - pinion shaft

1шт.

8

L34024

SEAL,60.33mm ID x 85.27mm OD x 11.53mm Thk

- oil

1шт.

9

A12955

GASKET

-, Serial Range: cover-cage

1шт.

10

L35493

CONE

- bearing, cage (Outer)

1шт.

A12959

CAGE

ASSEMBLY - pinion shaft, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - bearng, cage (Outer)

1шт.

12

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

13

NSS

NOT SOLD SEPARAT

CUP - bearing, cage (Inner)

1шт.

14

A12960

SPACER

- bearing, .219" thick (5.56 mm)

1шт.

14

A12961

SPACER

- bearing, .220" thick (5.59 mm)

1шт.

14

A12962

SPACER

- bearing, .221" thick (5.61 mm)

1шт.

14

A12963

SPACER

- bearing, .222" thick (5.64 mm)

1шт.

14

A12964

SPACER

- bearing, .223" thick (5.66 mm)

1шт.

14

A12965

SHIM,.224" Thk

SPACER, , Bearing (5.69 mm) .224" Thk

1шт.

14

A12966

SPACER

- bearing, .230" thick (5.84 mm)

1шт.

14

A12967

SPACER

- bearing, .236" thick (5.99 mm)

1шт.

14

A12968

SPACER

- bearing, .224" thick (6.15 mm)

1шт.

14

A12969

SPACER

- bearing, .248" thick (6.30 mm)

1шт.

14

A12970

SPACER

- bearing, .254" thick (6.45 mm)

1шт.

15

L35488

ROLLER BEARING,47.638 mm ID x 30.365 mm

CONE - bearing, cage (Inner)

1шт.

16

A12958

SHIM,.003" Thk

Cage (.076 mm) .003" Thk

1шт.

16

A12956

SHIM,.005" Thk

Cage (.127 mm) .005" Thk

1шт.

16

A12957

SHIM,.010" Thk

Cage (.254 mm) .010" Thk

1шт.

17

129-179

NUT,Hex, 3/4" - 16, Gr 5

1шт.

18

L30949

SCREW

- adjusting, drive gear

1шт.

L36113

CARRIER AND CAP ASSEMBLY - differential

1шт.

L30220

CARRIER

AND CAP - differential, Includes: Ref. 19 - 24

1шт.

19

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

20

L34037

BOLT

- special

4шт.

21

L30737

WASHER

- bolt

4шт.

22

NSS

NOT SOLD SEPARAT

CAP ASSEMBLY - differential

2шт.

23

A15443

DOWEL

- cap

2шт.

24

A18196

HARDWARE

PIN - lock, bearing adjusting nut (When lock pin is removed for repairs, replace with new pin)

2шт.

25

221-835

PLUG

- filler

1шт.
