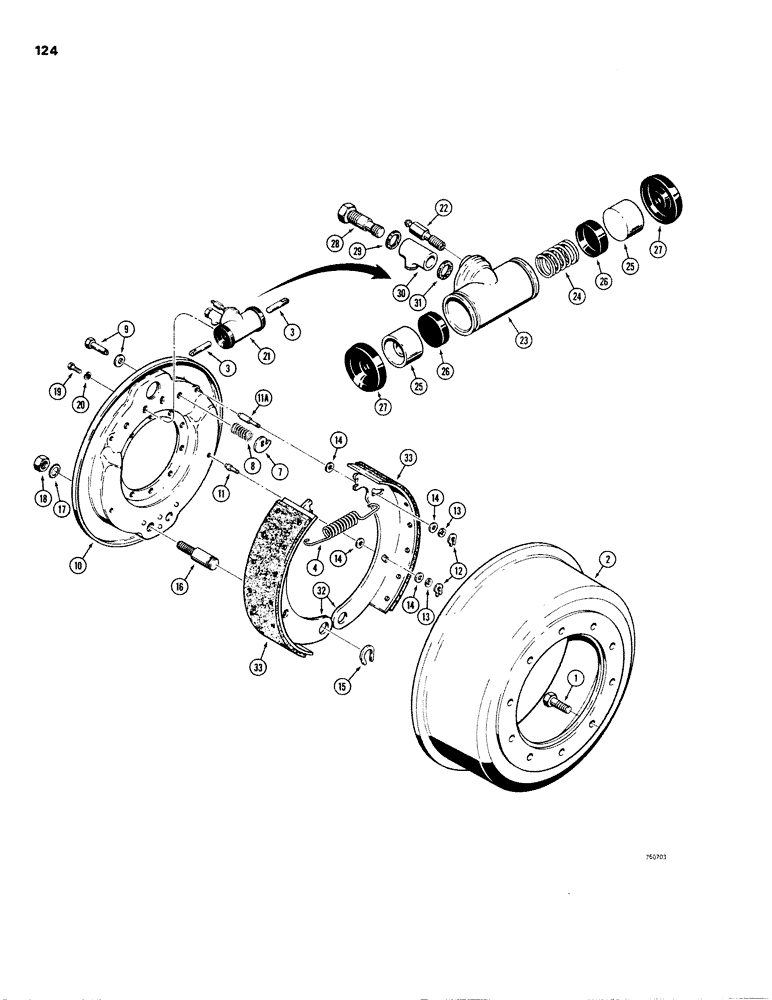

Запчасти Case W20 (124) - FRONT AND REAR AXLE BRAKES (06) - POWER TRAIN

1

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- brake drum to wheel hub

20шт.

2

L33894

DRUM

- brake

2шт.

L33863

BRAKE

ASSEMBLY - axle, Includes: Ref. 3 and 4

2шт.

3

A12983

ROD

- push, brake cylinder

2шт.

4

A13002

SPRING

- shoe return

1шт.

L35951

LARGE PLATE

PLATE ASSEMBLY - backing, brake, Includes: Ref. 7 - 11A

1шт.

7

A13201

SHOE

CAM - brake adjusting

2шт.

8

A13023

SPRING

- adjusting cam

2шт.

9

A12997

CAPTIVE WASHER SCREW

BOLT AND WASHER - adjusting cam

2шт.

10

NSS

NOT SOLD SEPARAT

PLATE - backing

1шт.

11

NSS

NOT SOLD SEPARAT

PIN - shoe guide (Short)

2шт.

11a

NSS

NOT SOLD SEPARAT

PIN - shoe guide (Long)

2шт.

12

A13127

WASHER

RETAINING - guide pin

4шт.

13

A13128

WASHER

- spring, guide pin

1шт.

14

A13129

WASHER

- plain, guide pin

1шт.

15

A13126

RING, SNAP,22.23mm ID x 33.34mm OD x 2.278mm Thk

RING - retaining, anchor pin

2шт.

16

A13024

PIN,29.39mm OD x 68.25mm L

- anchor, brake

2шт.

17

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER - Shakeproof (5/8") ( replaced 193-50 )

2шт.

18

A13134

NUT

- hex., special

2шт.

19

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

L33875

CYLINDER

ASSEMBLY - brake, Includes: Ref. 22 - 34

1шт.

22

A12924

SCREW,7/16" - 20

- bleeder, brake

1шт.

A12985

CYLINDER

ASSEMBLY - brake, Includes: Ref. 23 - 31

1шт.

23

NSS

NOT SOLD SEPARAT

BODY - brake cylinder

1шт.

24

A13043

SPRING

- piston return

1шт.

25

A13044

PISTON ASSY.

PISTON - cylinder

2шт.

A12865

KIT

- cylinder repair, Includes: Ref. 26 and 27

1шт.

26

NSS

NOT SOLD SEPARAT

CUP - piston

2шт.

27

NSS

NOT SOLD SEPARAT

BOOT - cylinder

2шт.

28

A12926

BOLT

-, Serial Range: fitting-cylinder

1шт.

29

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

-, Serial Range: bolt-fitting

1шт.

30

A12925

FITTING

- swivel, inlet

1шт.

31

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - swivel, Serial Range: fitting-cylinder

1шт.

D72855

SHOE

AND LINING - brake, upper and lower, Includes: Ref. 32 and 33

2шт.

Part of Lining kit, P/N L33876

1шт.

32

NSS

NOT SOLD SEPARAT

SHOE - brake

2шт.

33

NSS

NOT SOLD SEPARAT

LINING - brake (See note below)

2шт.

34

A12910

GASKET,0.4mm Thk

- cover to spider (Illustrated on figure 120)

1шт.

L33876

LINING

KIT - lining, 4 shoes (Completes one axle)

1шт.
