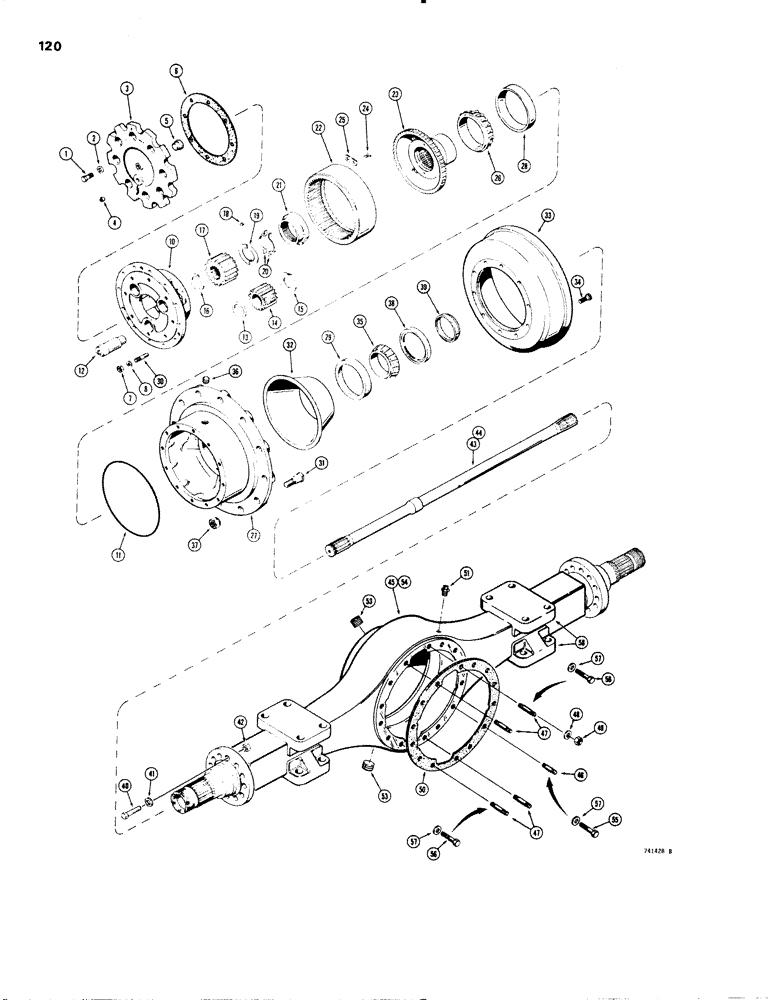

Запчасти Case W20 (120) - AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

1

26-718

BOLT,Hex, 7/16" - 14 x 1-1/8", Gr 8

HHCS - 7/16" - 14 NC x 1-1/8"

16шт.

2

D47367

WASHER

- special lock (7/16")

16шт.

3

L33952

COVER

- planetary spider

2шт.

4

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, oil leve (3/4" NPT)

2шт.

5

A12980

BUTTON

- thrust, drive shaft (Included in L33952 cover)

2шт.

6

A12910

GASKET,0.4mm Thk

-, Serial Range: cover-spider

2шт.

7

129-545

NUT,1/2"-20, G8

24шт.

8

92-8

LOCK WASHER,1/2"

24шт.

10

A12909

U-JOINT SPIDER

SPIDER - planetary

2шт.

11

A18218

O-RING,10.125" ID x 10.312" OD x 0.103"

SEAL - "O"ring, spider to hub

2шт.

12

A40146

SHAFT

- planetary pinion

6шт.

13

A12904

WASHER

- pinion thrust, outer

6шт.

14

A12901

GEAR

PINION - planetary

6шт.

15

A40145

WASHER

- pinion thrust, inner

6шт.

16

A12907

O-RING,1.74" ID x 0.1205"

RING - retainer, sun gear to shaft

2шт.

17

A12905

GEAR

- sun

2шт.

A13103

WASHER

AND PIN ASSEMBLY - thrust, Includes: Ref. 18 and 19

2шт.

18

A13137

AXLE PIN

PIN - thrust washer

2шт.

19

NSS

NOT SOLD SEPARAT

WASHER - thrust, sun gear

1шт.

20

A12953

RETAINER

LOCK - bearing nut

4шт.

21

A13104

BEARING LOCK NUT

NUT - hub bearing

2шт.

22

A12911

GEAR

- ring, pinion

2шт.

23

L33735

HUB

- ring gear

2шт.

24

26-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- 5/16" - 18 NC x 3/4" (Grade 8)

16шт.

25

A12914

LOCK ASSY

PLATE - lock

8шт.

26

L33737

BEARING ASSY,110 mm ID x 119 mm OD x 35 mm

CONE - hub bearing, outer

2шт.

NSS

NOT SOLD SEPARAT

HUB AND DRUM ASSEMBLY - axle, Includes: Ref. 27 - 34

2шт.

L36112

HUB

AND CUP ASSEMBLY - axle, Includes: Ref. 27 - 31

1шт.

27

NSS

NOT SOLD SEPARAT

HUB - drive wheel

1шт.

28

L33732

BEARING CUP,149 mm ID x 159 mm OD x 26.5 mm

CUP - bearing, outer

1шт.

29

L33731

BEARING CUP,154.9 mm OD x 27.9 mm

CUP - bearing, inner

1шт.

30

L30951

STUD

-, Serial Range: spider-hub

12шт.

31

A13112

STUD

- drive, Serial Range: wheel-hub

12шт.

32

L33728

BRACKET

SLINGER - oil

1шт.

33

L33894

DRUM

- brake

1шт.

34

26-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

HHCS - brake drum to wheel hub (5/8" - 11 NC x 1-1/2") Grade 8

10шт.

35

L33736

ROLLER BEARING

CONE - hub bearing, inner

2шт.

36

221-678

DRAIN PLUG,Sq Soc, 3/4" NPT

PLUG J- pipe, magnetic (3/4" NPT)

2шт.

37

A12522

WHEEL NUT

- drive wheel bolt (Not included in axle assembly)

24шт.

38

D47371

SEAL

OIL SEAL AND RETAINER - hub bearing

2шт.

39

D51467

SLEEVE

- oil seal

2шт.

40

28-830

BOLT,Hex, 1/2" - 20 x 1-7/8", Gr 8

HHCS - 1/2" - 20 NF x 1-3/4"

24шт.

41

L33864

WASHER

- special

24шт.

42

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex., lock (1/2" - 20 NF)

24шт.

43

L32497

SHAFT

- axle, 42.88" long (1089 mm)

1шт.

44

L36110

HALF SHAFT

SHAFT - axle, 40.62" long (1032 mm)

1шт.

L36109

HOUSING

ASSEMBLY - rigid axle, use D75505 housing, Includes: Ref. 45 - 47

1шт.

45

NSS

NOT SOLD SEPARAT

HOUSING - axle and differential

1шт.

46

L30951

STUD

- 2-1/2" long (64 mm)

10шт.

47

A13130

STUD

- 2-5/8" long (67 mm)

4шт.

48

D47366

WASHER

- special flat (1/2")

14шт.

49

232-4618

LOCK NUT,1/2"-20, GC

NUT - hex. (1/2" - 20 NF) Self-locking

14шт.

50

L36108

GASKET

- differential, Serial Range: carrier-housing

1шт.

51

A12928

BREATHER

- oil, differential

1шт.

52

A19909

SPRING SEAT

SEAT - lower spring (Not illustrated)

2шт.

53

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

- pipe, drain and fill (3/4" NPT)

2шт.

54

D75505

HOUSING

- axle and differential

8шт.

55

26-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

10шт.

56

26-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

57

D47366

WASHER

- hardened

14шт.
