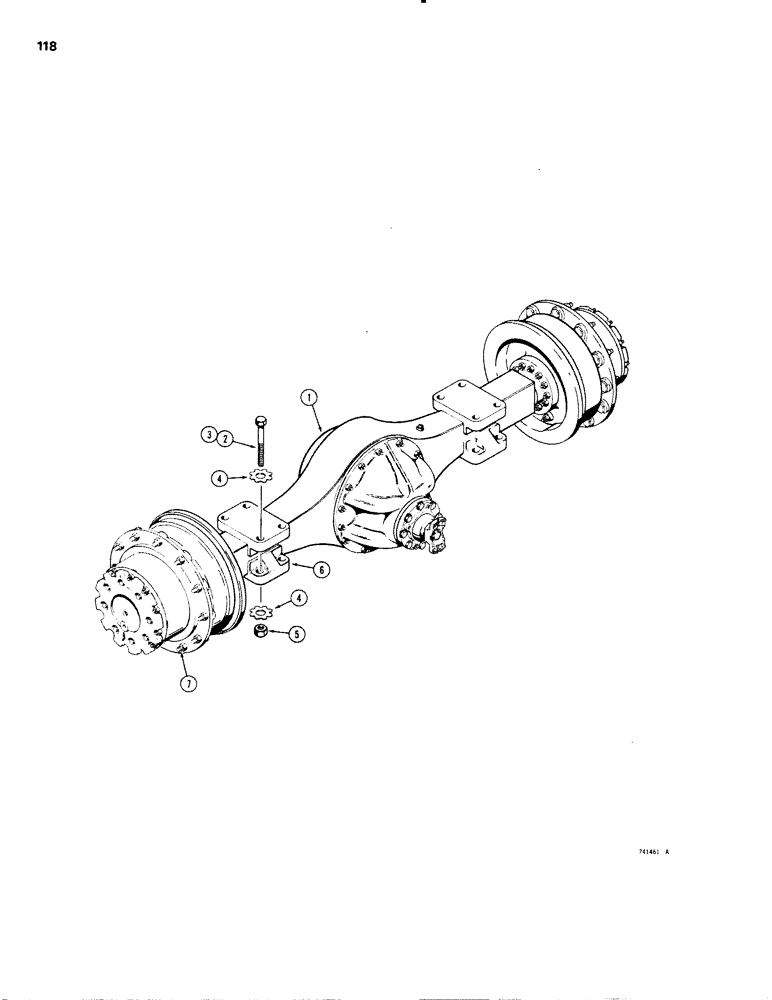

Запчасти Case W20 (118) - AXLE ASSEMBLIES (06) - POWER TRAIN

1

L58844

AXLE ASSEMBLY - Rockwell Standard PR-120-HX-1, front and rear (Parts list figures 120 thru 128)

2шт.

2

L57180

BOLT

BOLT - 1" - 14 NF x 11"

8шт.

3

L57180

BOLT

BOLT - 1" - 14 NF x 11"

8шт.

4

L74506

WASHER

- special

32шт.

5

131-188

LOCK NUT,1"-14, GB

NUT - hex. lock, 1" - 14 NF

16шт.

6

A19909

SPRING SEAT

PAD - axle

4шт.

7

A12522

WHEEL NUT

- wheel

48шт.
