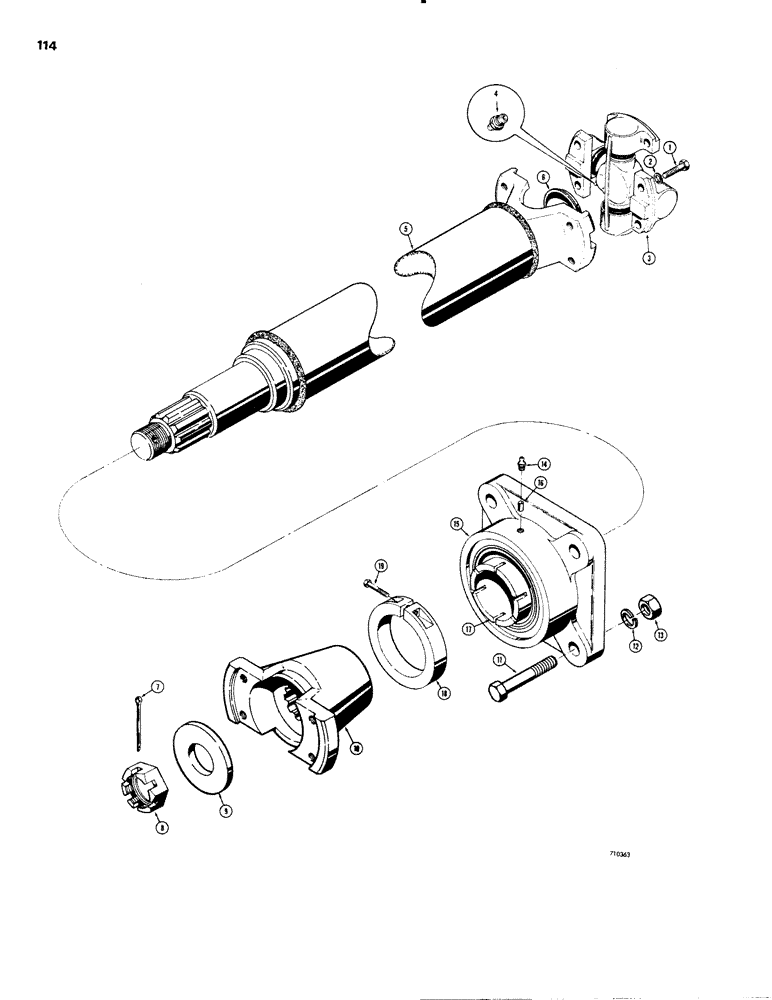

Запчасти Case W20 (114) - FRONT AXLE DRIVE SHAFT, (AXLE END) (06) - POWER TRAIN

L58852

SHAFT ASSEMBLY - drive, front axle, Includes: Ref. 1 - 9

1шт.

1

L31781

BOLT

BOLT - special, spider and bearing to drive shaft yoke and front axle flange

8шт.

2

192-161

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

L31776

SPIDER

SPIDER AND BEARING ASSEMBLY - drive shaft

1шт.

3

NSS

NOT SOLD SEPARAT

SPIDER AND BEARING - drive shaft

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

L36066

SHAFT

TUBE AND YOKE - L58852 drive shaft

1шт.

6

41-20

PLUG,Exp, 1 1/4"

- expansion (1-1/4")

1шт.

7

132-59

PIN

- cotter, 1/8" dia. x 2-1/2"

1шт.

8

L33629

SPECIAL NUT

- hex., slotted (Special)

1шт.

9

D28266

WASHER

- plain (Special)

1шт.

10

L48916

YOKE

- front drive shaft to center drive shaft

1шт.

11

13-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

HHCS - 9/16" - 12 NC x 1-3/4", L47724 drive shaft support bearing

4шт.

12

92-9

BEARING WASHER,9/16"

L47724 drive shaft support bearing 9/16"

4шт.

13

25-109

NUT,9/16"-12, G5

- hex. (9/16" - 12 NC), L47724 drive shaft support bearing

4шт.

L47724

HOUSING, BEARING,2" ID x 4.5625" OD x 2.21875"

BEARING SUPPORT ASSEMBLY - front drive shaft, L47724 drive shaft support bearing, Includes: Ref. 14 - 19

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT), L47724 drive shaft support bearing

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - bearing, L47724 drive shaft support bearing

1шт.

16

L33788

AXLE PIN

PIN - lock, L47724 drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, L47724 drive shaft support, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING AND SEAL ASSY. - center bearing, L47724 drive shaft support

1шт.

18

L33789

COLLAR

- bearing, L47724 drive shaft support

1шт.

19

61-416

HEX SOC SCREW,1/4"-20 x 1"

CAP SCREW - hex. socket head (1/4" - 20 NC x 1") ( replaced 61-48 ), L47724 drive shaft support bearing

1шт.
