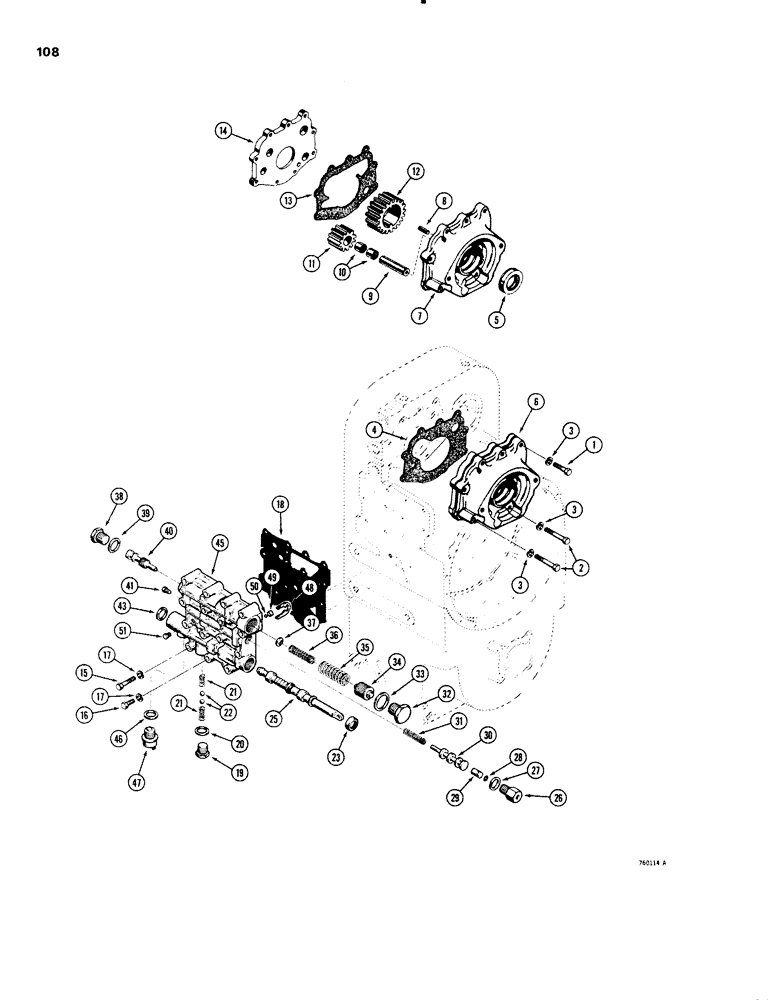

Запчасти Case W20 (108) - L55661 TRANSMISSIONS, CHARGING PUMP (06) - POWER TRAIN

1

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

6шт.

2

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

3шт.

3

92-6

LOCK WASHER,3/8"

9шт.

4

L31081

GASKET

-, Serial Range: pump-housing

1шт.

5

A13262

SEAL

- oil

1шт.

6

D72786

PUMP

- transmission and torque converter charging, Includes: Ref. 7 - 14

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - pump

1шт.

8

L31168

PIN

- dowel, pump, Serial Range: housing-cover

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT - driven gear

1шт.

10

L31166

NEEDLE BEARING

- roller type

2шт.

11

NSS

NOT SOLD SEPARAT

GEAR - driven, pump

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - drive, pump

1шт.

13

P0031037L

BALL

- pump, Serial Range: housing-cover

1шт.

14

D72787

COVER

- pump

1шт.

15

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2", transmission control valves

15шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Transmission control valves Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

transmission control valves 3/8"

16шт.

18

L31187

GASKET

- valve to housing, transmission control

1шт.

D71463

VALVE

- transmission control, Includes: Ref. 19 - 46

1шт.

19

L31048

PLUG

- lower, transmission control valves

1шт.

20

L31034

WASHER

GASKET - trimmer valve plug, transmission control

1шт.

21

D72774

VALVE SPRING

SPRING - detent, transmission control valves

2шт.

22

211-13

BALL,1/2" Dia

- detent, transmission control valves 1/2" Dia

2шт.

23

D72773

SEAL,19.05mm ID x 35.08mm OD x 7.26mm Thk

- oil, transmission control valves

1шт.

25

L36061

VALVE

SPOOL - valve, transmission control

1шт.

26

L31030

PLUG

- clutch cutoff valve, transmission control

1шт.

27

L31034

WASHER

GASKET - plug, Transmission control valves

1шт.

28

A12666

O-RING,0.359" ID x 0.73"

SEAL - ring type, clutch cut off valve, Transmission control valves

1шт.

29

L31025

PLUG

- clutch cut off valve, Transmission control valves

1шт.

30

D72775

VALVE

- clutch cut off, Transmission control valves

1шт.

31

L31169

SPRING

- clutch cut off valve, Transmission control valves

1шт.

32

L31044

PLUG

- valve, Transmission control valves

1шт.

33

L31043

GASKET

- trimmer valve plug, Transmission control valves

1шт.

34

D51472

PLUG

- trimmer valve, Transmission control valves

1шт.

35

L31183

SPRING

- trimmer valve, Transmission control valves

1шт.

36

L35241

SPRING

- regulator valve, Transmission control valves

1шт.

37

L32743

RETAINER

- spring, Transmission control valves

1шт.

38

L31045

PLUG

- regulator valve, Transmission control valves

1шт.

39

L31016

GASKET

- plug, Transmission control valves

1шт.

40

L31189

VALVE

- regulator, Transmission control valves

1шт.

41

221-661

PLUG,Hex Hd, 1/8"-27

- valve, Transmission control valves

1шт.

43

L31016

GASKET

- plug, Transmission control valves

1шт.

45

L36060

BODY

HOUSING - valve, Transmission control valves

1шт.

46

D72772

SEALING WASHER

GASKET - seal, Transmission control valves

1шт.

47

REF

INSTRUCTION

SWITCH - not part of Transmission, Includes: Ref. 48 - 51, Transmission control valves

1шт.

48

L31040

STOP

- valve, Transmission control valves

1шт.

49

L31046

PLUG

- ball retainer, Transmission control valves

1шт.

50

L31019

BALL

- valve, Transmission control valves

1шт.

51

221-661

PLUG,Hex Hd, 1/8"-27

- valve, Transmission control valves

1шт.
