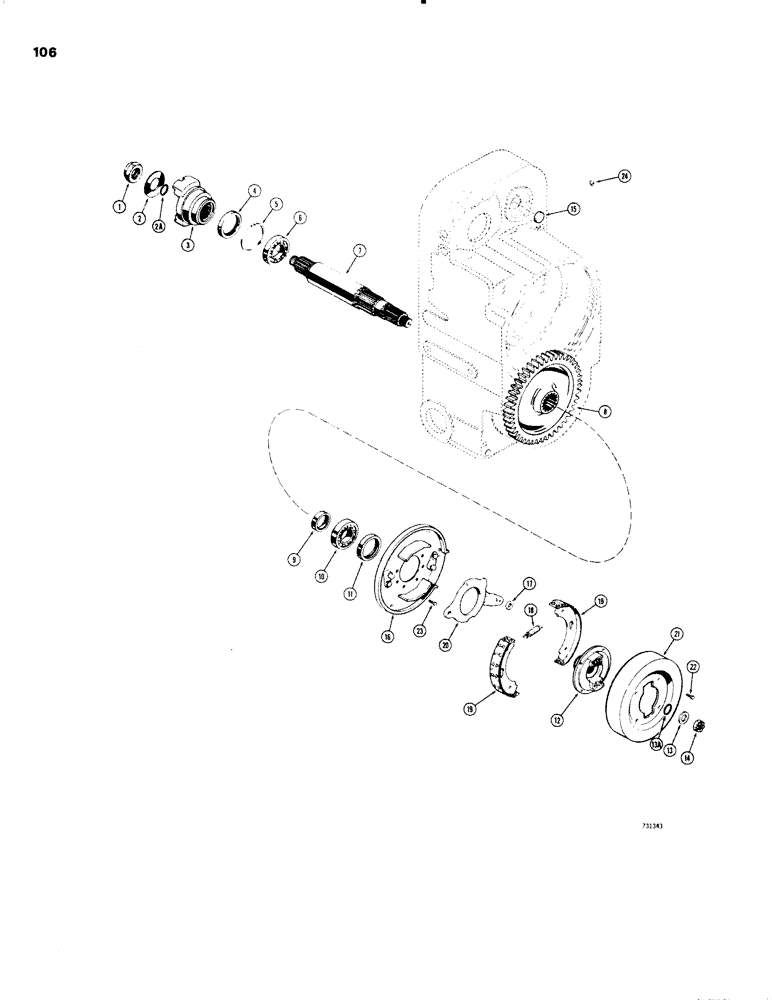

Запчасти Case W20 (106) - L55661 TRANSMISSIONS, AXLE OUTPUT SHAFT AND PARKING BRAKE (06) - POWER TRAIN

1

L31165

NUT

- flange washer retaining

1шт.

2

D47424

WASHER

- flange and shaft

1шт.

2a

D71437

O-RING,1.475" ID x 1.895" OD

SEAL - "O"ring

1шт.

3

L36064

FLANGE

- transmission to rear axle drive shaft

1шт.

4

D47485

SEAL

- oil

1шт.

5

D47486

SNAP RING

SNAP RING - internal type

1шт.

6

L31013

BALL BEARING

- ball type

1шт.

7

L36058

SHAFT

- output, main (Axle drive)

1шт.

8

D47487

GEAR

- transfer

1шт.

9

D51506

BUSHING

SPACER - bearing

1шт.

10

D47489

ROLLER BEARING

BEARING - ball type

1шт.

11

D47485

SEAL

- oil

1шт.

12

L36055

FLANGE

- transmission to front axle drive shaft

1шт.

13

D47424

WASHER

- flange and shaft

1шт.

13a

D71437

O-RING,1.475" ID x 1.895" OD

SEAL - "O"ring

1шт.

14

L31165

NUT

- flange washer retaining

1шт.

15

L33620

PLUG

- housing

1шт.

L33621

BRAKE

ASSEMBLY - parking, Includes: Ref. 16 - 21

1шт.

16

L33622

PLATE

- backing

1шт.

17

L33579

ROLLER

- brake

1шт.

18

A18134

SPRING

- brake shoe return

2шт.

19

D47524

BRAKE SHOE

SHOE AND LINING ASSEMBLY - brake

2шт.

Part of brake lining kit D47601

1шт.

20

D47526

LEVER

- brake shoe

1шт.

21

D47527

DRUM

- brake

1шт.

22

121-212

LOCK BOLT,Lock Place, Hex, 3/8" - 24 x 5/8", Gr 8

HHCS - 3/8" - 24 NF x 5/8"

4шт.

23

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS - 1/2" - 13 NC x 7/8"

4шт.

24

L33981

PLUG

- cup (If used)

1шт.

D47601

KIT - brake lining, includes 2 linings and 24 L33939 rivets, Includes: Ref. 19

1шт.
