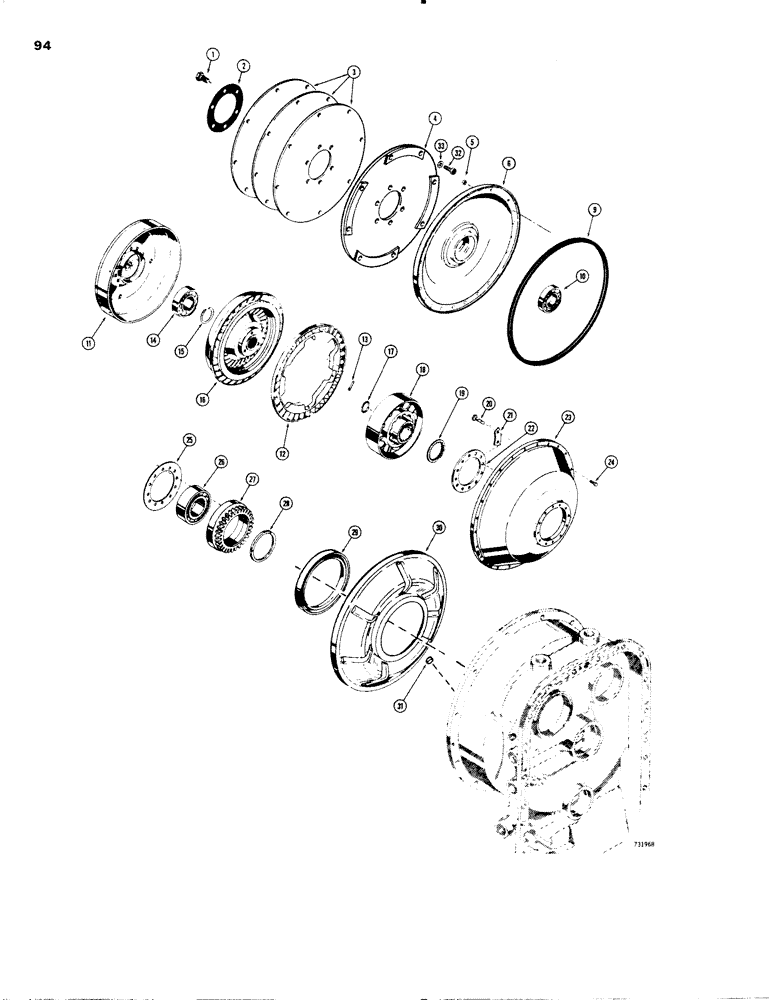

Запчасти Case W20 (094) - L55661 TRANSMISSION, FRONT COVER, INPUT SHAFT AND TORQUE CONVERTER (06) - POWER TRAIN

1

121-402

LOCK BOLT,Lock Place, Hex, 1/2" - 13 x 7/8", Gr 8

HHCS - 1/2" - 13 NC x 7/8" (Grade 8)

6шт.

2

D46334

PLATE

- flex. disc retaining

1шт.

3

D46335

DISC

- flex drive

3шт.

4

L35093

DISC

AND WASHERS - flex plate drive

1шт.

5

131-308

LOCK

NUT - hex., lock (5/16" - 24 NF)

24шт.

6

D46337

COVER

- converter pump

1шт.

9

A12674

RING

- seal

1шт.

10

L33908

BEARING

- ball type

1шт.

L33614

TURBINE

ASSEMBLY - torque converter, first, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

TURBINE HOUSING - torque converter, first

1шт.

12

NSS

NOT SOLD SEPARAT

TURBINE - torque converter, first

1шт.

13

L33615

PIN

- turbine

6шт.

14

L31004

BEARING

- ball type

1шт.

15

D47442

RING

SNAP RING - bearing retaining

1шт.

16

L33932

WHEEL

TURBINE ASSEMBLY - torque converter, second

1шт.

17

D47433

RING

SNAP RING - external type

1шт.

18

L33617

STATOR

- torque converter

1шт.

19

D47435

BUSHING

SPACER - stator

1шт.

20

28-420

BOLT,Hex, 1/4" - 28 x 1-1/4", Gr 8

HHCS - 1/4" - 28 NF x 1-1/4"

12шт.

21

D47436

PLATE, LOCKING

PLATE - locking

6шт.

22

D47437

RETAINER

RETAINING - pump

1шт.

L33931

HOUSING

PUMP ASSEMBLY - torque converter, Includes: Ref. 23 - 26

1шт.

23

NSS

NOT SOLD SEPARAT

PUMP - torque converter

1шт.

24

A12695

BOLT

- special

24шт.

25

D48208

GASKET

- pump

1шт.

26

D47531

BALL BEARING,55mm ID x 100mm OD x 33.34mm W

BEARING - ball type

1шт.

27

L35399

GEAR

- drive

1шт.

28

D47441

SEAL

- ring type, converter housing sleeve

1шт.

L34000

DIAPHRAGM

ASSEMBLY - converter, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

SEAL - oil

1шт.

30

NSS

NOT SOLD SEPARAT

DIAPHRAGM - converter

1шт.

31

L30301

PLUG

- converter housing

1шт.

32

R14979

SCREW

BOLT - special, self locking

8шт.

33

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- special, cupped

8шт.
