Запчасти Case W20 (172) - STEERING HYDRAULIC CIRCUIT, STEERING CONTROL VALVE TO CYLINDERS (05) - STEERING

1

REF

INSTRUCTION

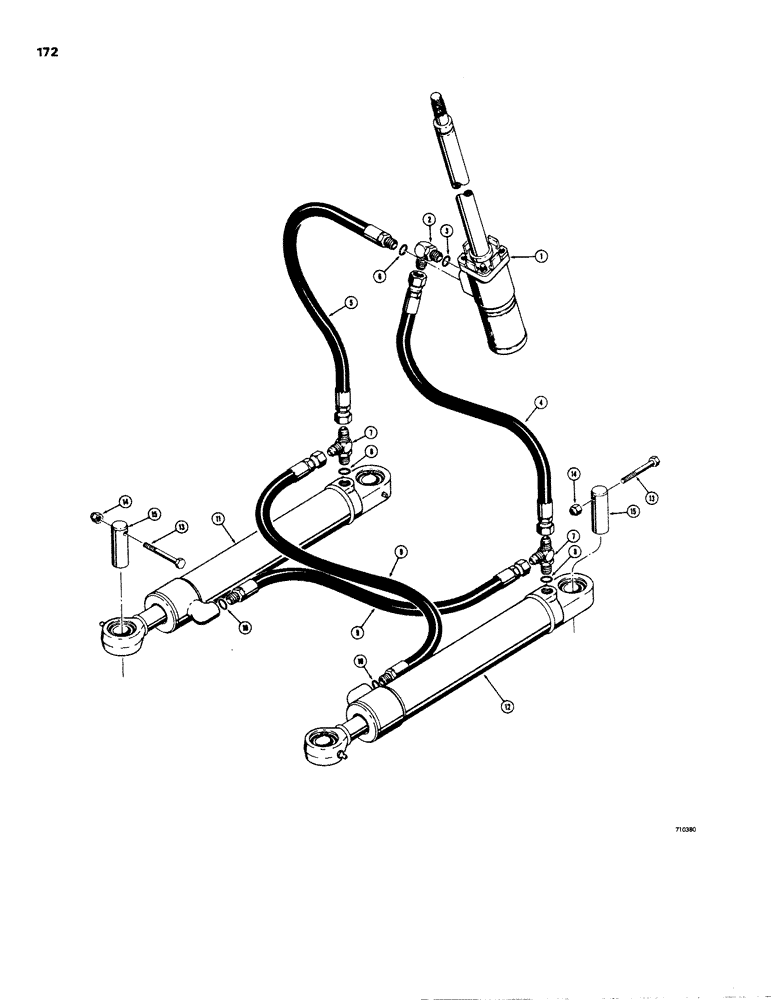

VALVE ASSEMBLY - steering control, parts list figure 168

1шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adjustable, Includes: Ref. 3 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

4

L50016

HOSE

- R.H. steering cylinder, 35" long (889 mm)

1шт.

5

L50015

HOSE

- L.H. steering cylinder, 30" long (762 mm)

1шт.

7

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, hydraulic, Includes: Ref. 8

2шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

L47884

HOSE

- crossover, 35-/12" long (902 mm)

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

11

G34301

STEERING CYLINDER

CYLINDER - L.H. steering, parts list figure 174

1шт.

12

G34300

CYLINDER

- R.H. steering, parts list figure 174

1шт.

13

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

4шт.

14

131-6

LOCK NUT,3/8"-16, GC

NUT - hex., lock (3/8" - 16 NC)

4шт.

15

L47952

PIN,34.91mm OD x 95.25mm L

- cylinder mounting

4шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
