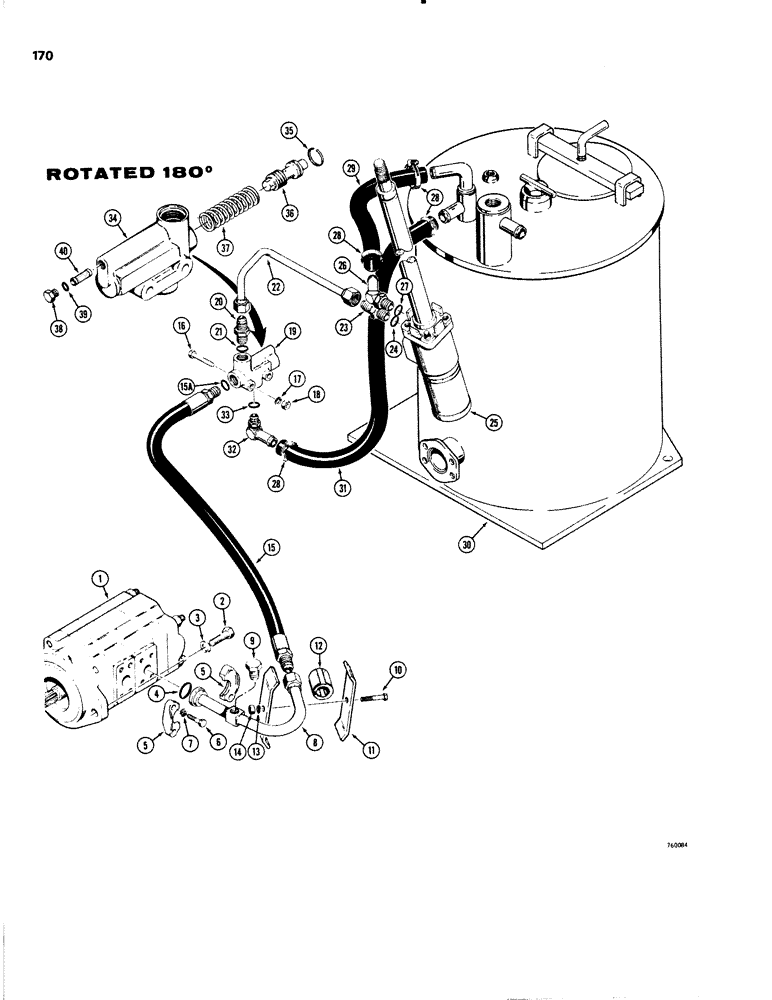

Запчасти Case W20 (170) - STEERING HYDRAULIC CIRCUIT - PUMP TO RESERVOIR (05) - STEERING

1

L26895

PUMP

ASSEMBLY - hydraulic, parts list figure 192

1шт.

L26895R

REMAN-HYD PUMP

W20 CASE WHEEL LOADER W/POD CAB - NEW YORK STATE SPECIAL

1шт.

L26895C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

2шт.

3

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

5

A16961

FLANGE

- split

2шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

L53115

TUBE,4.42, 3.32" L

- pump to flow control valve, at pump

1шт.

9

221-655

PLUG,Hex Hd, 3/4"-14

- 3/4" NPT

1шт.

10

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

11

L47503

BRACKET

CLAMP - tube

2шт.

12

L47487

BUSHING

SPACER - tube clamp

1шт.

13

92-6

LOCK WASHER,3/8"

1шт.

14

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

15

L50010

HOSE

- 36-1/2" long (927 mm)

1шт.

15a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

17

92-5

LOCK WASHER,5/16"

1шт.

18

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

19

L51457

VALVE

ASSEMBLY - flow control (Parts list below)

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - straight, male, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

L50026

TUBE,0.625" OD

- flow divider valve to steering gear

1шт.

23

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , male, straight, Incl. Ref. 24 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

25

REF

INSTRUCTION

VALVE ASSEMBLY - steering control, parts list figure 168

1шт.

26

217-321

FITTING,45 Degree Elbow, 3/4" Hose Barb x 3/4" - 16 Male ORB

STEM - barbed, 45 degree, Includes: Ref. 27

1шт.

28

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

29

L51062

HOSE

- 14" long x 3/4" I.D. (356 mm x 19 mm)

1шт.

30

REF

INSTRUCTION

TANK - hydraulic, parts list figure 180

1шт.

31

L51061

HOSE,0.75" ID x 21.00", SAE 100R3

1шт.

32

217-361

FITTING,90 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

STEM - hose, barbed (90 degree) At valve, Includes: Ref. 33

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

L51457

VALVE

- flow control, L51457, Includes: Ref. 34 - 39

1шт.

34

NSS

NOT SOLD SEPARAT

BODY - flow control valve, L51457

1шт.

35

D46214

CIRCLIP

SNAP RING - spool retaining, L51457 flow control valve

1шт.

36

L33718

VALVE

SPOOL - flow control valve, L51457

1шт.

37

D46216

SPRING

- spool, L51457 flow control valve

1шт.

38

218-5152

PLUG,Hex Hd, 3/8"-24 ORB

Filter access, L51457 flow control valve Hex Hd, 3/8"-24 ORB

1шт.

39

218-5002

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, L51457 flow control valve

1шт.

40

L33959

FILTER, ENGINE OIL

SCREEN - filter, L51457 flow control valve

1шт.

24

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
