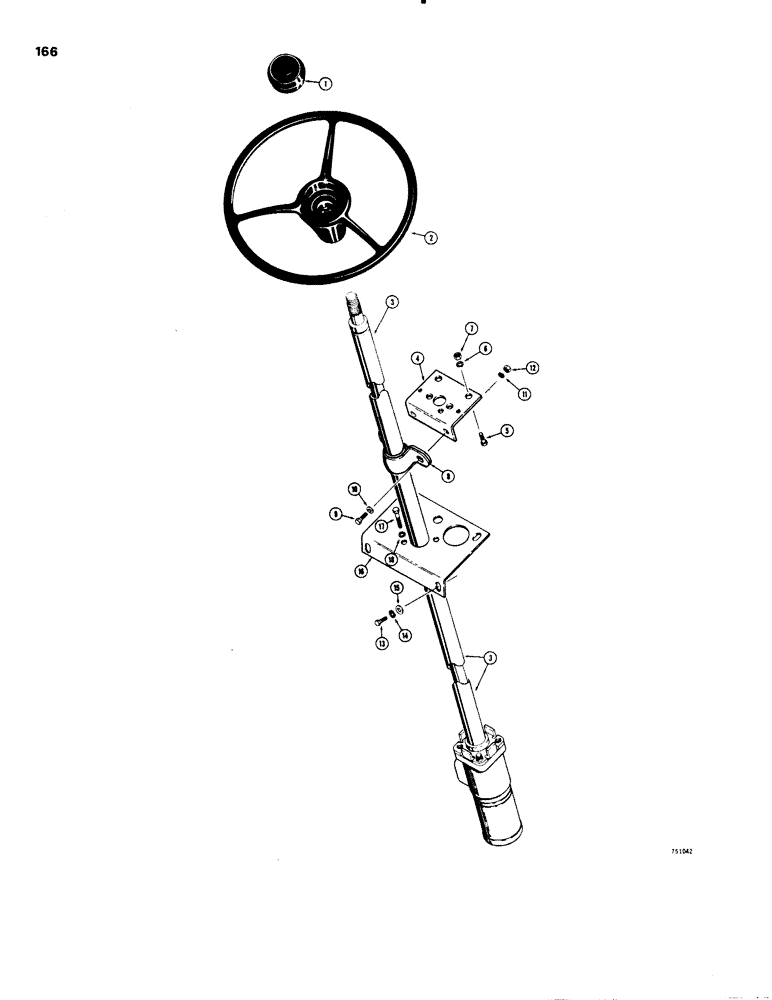

Запчасти Case W20 (166) - STEERING CONTROL VALVE AND RELATED PARTS (05) - STEERING

1

L18519

CAP

- steering wheel

1шт.

2

L47502

WHEEL

- steering

1шт.

3

L50029

PUMP

VALVE ASSEMBLY - steering, control, parts list figure 168

1шт.

4

L76574

SUPPORT - steering column, with window washer

1шт.

5

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

8

L50073

BEARING CARRIER

BEARING - steering column support

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bearing mounting Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

10

195-25

WASHER,3/8"

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Plate mounting Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

15

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

16

L57727

BRACKET

PLATE - floor, steerimg alignment, without window washer

1шт.

16

L76575

PLATE - floor, steering alignment, with window washer

1шт.

17

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Steering gear to plate mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.
