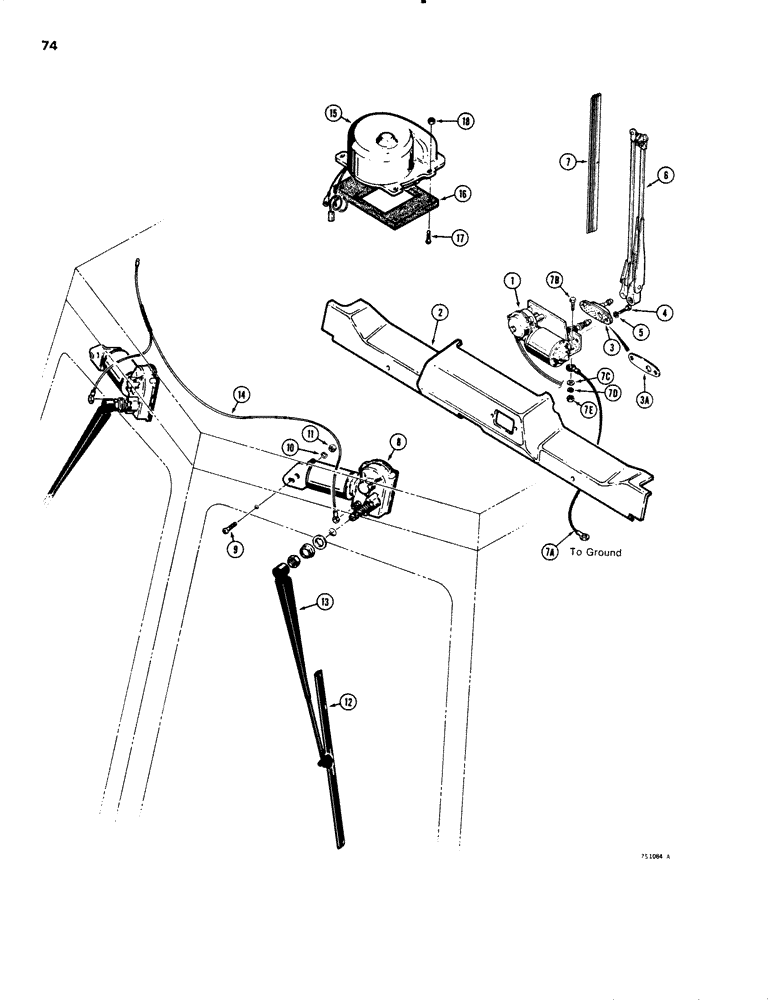

Запчасти Case W20 (074) - CAB WIPERS, FRONT WIPER-INCLUDED IN L71296 CAB (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

MOTOR - wiper, front (Parts list figure 76)

1шт.

2

L71469

COVER

- wiper, motor, without window washer

1шт.

2

L73840

COVER - wiper, motor, with window washer

1шт.

3

L35753

ADAPTER

- panograph wiper

1шт.

3a

D70646

BUSHING

SPACER

1шт.

4

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

6

L35263

ARM

- wiper, 18" long

1шт.

7

F42214

WIPER

BLADE - wiper, 18" long

1шт.

7a

L40793

ELECTRICAL WIRE

WIRE - ground

1шт.

7b

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd

1шт.

7c

95-7

WASHER,7/16"

- flat, 7/16"

1шт.

7d

92-7

LOCK WASHER,7/16"

1шт.

7e

25-107

NUT,7/16"-14, G5

- hex., 7/16" - 14 NC

1шт.

8

F93633

MOTOR, ELECTRIC

MOTOR - wiper, rear, optional

2шт.

9

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- pan head, #10 - 24 NC x 1/2", rear wiper, optional

2шт.

10

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER - med. sect. lock, #10, rear wiper, optional

4шт.

11

129-17

NUT,Hex, #10 - 24

NUT - hex., #10 - 24 NC, rear wiper, optional

2шт.

12

F43517

WIPER BLADE

BLADE - wiper, rear (9" long), optional

2шт.

13

F43516

ARM

- wiper, rear (9" long), optional

2шт.

14

F43518

HARNESS

WIRE - jumper, rear, optional

1шт.

15

F43618

DIFFUSER

DEFOGGER, mounting

1шт.

16

F43619

SEAL

defogger mounting

1шт.

17

182-132

SCREW,Slotted Pan Hd, #10-24 x 1 1/2"

- #10 - 24 NC x 1-1/2", defogger mounting

4шт.

18

86625057

NUT,#10-24, GB

NUT, LOCK, , Defogger mounting #10-24, GB

4шт.
