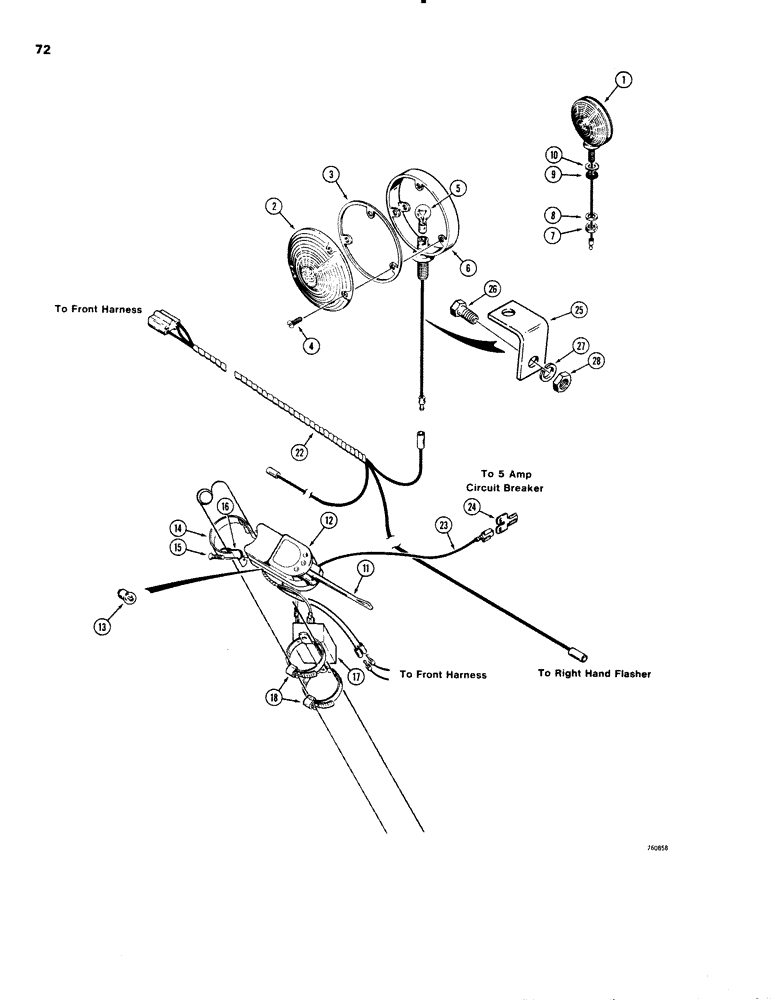

Запчасти Case W20 (072) - TURN SIGNAL AND FLASHER LIGHT (04) - ELECTRICAL SYSTEMS

1

L43738

INTERIOR LIGHT

LIGHT - flasher, double face, Includes: Ref. 2 - 10

2шт.

L32214

LENS

KIT - light, flasher, Includes: Ref. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

LENS - light, flasher

1шт.

3

NSS

NOT SOLD SEPARAT

GASKET - lens

1шт.

4

NSS

NOT SOLD SEPARAT

SCREW - special

3шт.

5

L32257

BULB

- 24V (#307)

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - light, flasher (Double face)

1шт.

7

129-125

NUT,1/2"-20, G5

1шт.

8

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

9

L32256

WASHER

- rubber

1шт.

10

195-105

WASHER,7/16"

- standard wrot (Zinc plated)

1шт.

L73667

SIGNAL

- turn and flasher, 2 wires to harness, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

SWITCH - turn signal

1шт.

13

A14928

BULB

- direction indicator (#356)

1шт.

14

L32658

STRAP

- mounting, signal

1шт.

L32659

KIT

HARDWARE PACKAGE - mounting, turn signal, Includes: Ref. 15 - 16

1шт.

15

169-148

SCREW,Sl Fil Hd, #8 - 32 x 1"

- flat head machine (#8 - 32 NC x 1")

2шт.

16

NSS

NOT SOLD SEPARAT

CLIP - strap mounting

2шт.

17

L59781

FLASHER UNIT

FLASHER - signal

1шт.

18

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

- worm screw #28, 1.31/2.25 Type F Worm

2шт.

22

REF

INSTRUCTION

HARNESS - cab, see figure 68

1шт.

23

L73665

ELECTRICAL WIRE

WIRE - to circuit breaker

1шт.

24

F43508

SPADE TERMINAL

SPADE - electrical connector

1шт.

25

L77023

BRACKET - light mount

2шт.

26

L77028

BOLT - hollow

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.
