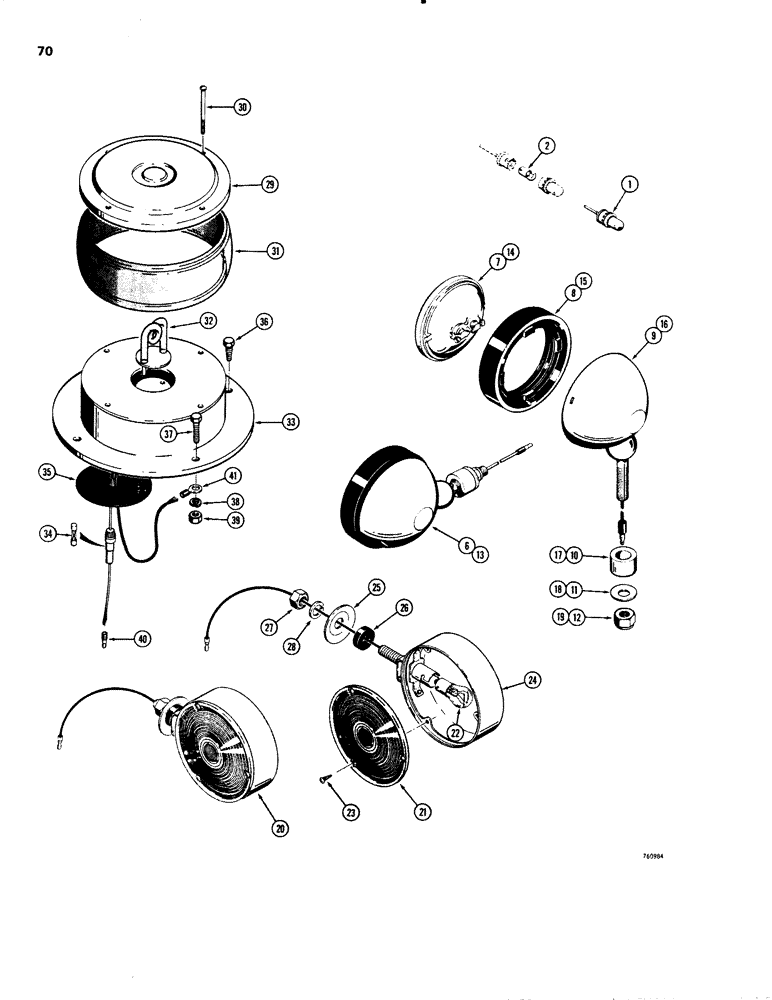

Запчасти Case W20 (070) - LIGHTING EQUIPMENT (04) - ELECTRICAL SYSTEMS

1

L55568

INTERIOR LIGHT

LIGHT ASSEMBLY - instrument panel, 12 volt, Includes: Ref. 2

2шт.

2

A22349

BULB

- #12V (#363), instrument panel light

1шт.

6

L71729

LAMP

LIGHT ASSEMBLY - painted black, 24 volt, front driving, Includes: Ref. 7 - 12

2шт.

7

A25209

LAMP

LIGHT - sealed beam, front driving

1шт.

8

A25210

MOUNTING PARTS

RETAINER - light, front driving

1шт.

9

NSS

NOT SOLD SEPARAT

SHELL - light, front driving

1шт.

10

D37048

BUSHING

- light pivot, front driving

1шт.

11

D37049

WASHER

- special, front driving light

1шт.

12

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), front driving light

1шт.

13

L71730

INTERIOR LIGHT

LIGHT ASSEMBLY - painted black (24 volt), front and rear flood, Includes: Ref. 14 - 19

3-4шт.

14

D37920

LAMP

LIGHT - sealed beam, front and rear flood

1шт.

15

A25210

MOUNTING PARTS

RETAINER - light, front and rear flood

1шт.

16

NSS

NOT SOLD SEPARAT

SHELL - light, front and rear flood

1шт.

17

D37048

BUSHING

- light, front and rear flood

1шт.

18

D37049

WASHER

- special, front and rear flood light

1шт.

19

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - hex., lock (1/2" - 20 NF), front and rear flood light

1шт.

20

L59897

LAMP

- stop and tail (Hobbs) light, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

LENS - light, stop and tail

1шт.

RED LENS IS D82778 AND BLACK LENS IS D82779.

1шт.

22

A15084

LAMP

BULB - 24V, (#1683), stop and tail light

1шт.

23

NSS

NOT SOLD SEPARAT

SCREW, stop and tail light

3шт.

24

NSS

NOT SOLD SEPARAT

BODY - light, stop and tail light

1шт.

25

L30258

WASHER

- crowned, rubber, stop and tail light

1шт.

26

L30259

WASHER

- cushioned, rubber, stop and tail light

1шт.

27

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NC), stop and tail light

1шт.

28

92-8

LOCK WASHER,1/2"

stop and tail light 1/2"

1шт.

L76770

LIGHT

STROBE LIGHT, Includes: Ref. 29 - 41

1шт.

29

D75869

COVER

strobe light, Includes: Ref. 30 - 41

1шт.

30

171-131

SCREW,Sl Flat Hd, #6 - 32 x 2 1/4"

- machine, #6 - 32 NC x 2-1/4" plated, strobe light

4шт.

31

D75870

LENS

- amber, strobe light

1шт.

32

D75871

TUBE

- light (Bulb), strobe

1шт.

33

NSS

NOT SOLD SEPARAT

BODY, strobe light

1шт.

34

223-39

FUSE,7 1/2" Amp, Type MDL

- MDL 3 amp, strobe light

1шт.

35

L76871

SEAL, strobe light

1шт.

36

187-1006

SCREW,Hex Hd, 1/4" x 5/8"

- self tapping, 1/4" - 20 NC x 5/8", strobe light

3шт.

37

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

Strobe light Hex, 1/4"-20 x 1", G5

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Strobe light 1/4"

1шт.

39

25-104

NUT,1/4"-20, G5

Strobe light 1/4"-20, G5

1шт.

40

L10051

TERMINAL CONNECTOR,Male

CONNECTOR - bullet, strobe light Male

1шт.

41

223-52

FUSE

CONNECTOR - eyelet, strobe light

1шт.
