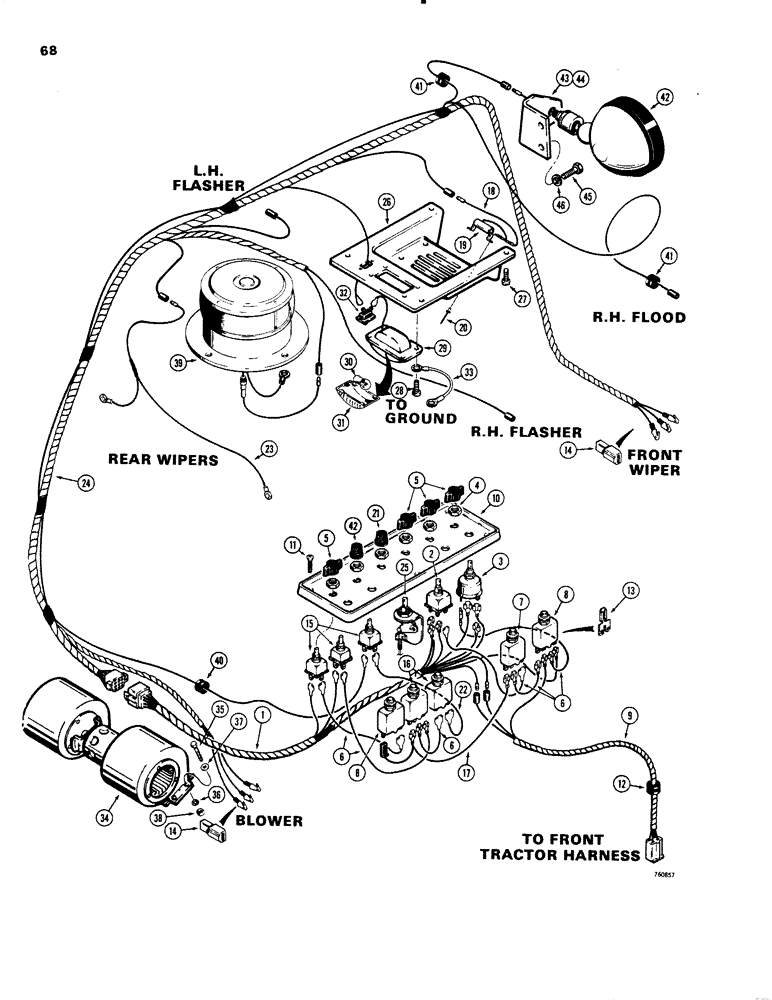

Запчасти Case W20 (068) - ELECTRICAL SYSTEM, OPERATORS COMPARTMENT (04) - ELECTRICAL SYSTEMS

1

F43263

HARNESS

-, Serial Range: panel-cab

1шт.

2

L73617

SWITCH

- blower

1шт.

3

F43359

SWITCH

- wiper

1шт.

4

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switches

6шт.

5

L74694

KNOB

- switches

4шт.

6

F43266

ELECTRICAL WIRE

WIRE - jumper

6шт.

7

L59972

BREAKER

- 15 amp.

1шт.

8

F43509

BREAKER

- 6 amp.

2шт.

9

L73443

HARNESS

- panel power supply

1шт.

10

F43187

PANEL

- accessory

1шт.

11

187-1098

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - oval head, phillips (#10 - 16 NC x 3/4")

6шт.

12

A75994

GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut

1шт.

13

F43508

SPADE TERMINAL

TERMINAL - double spade

4шт.

14

D72845

LATCH

CONNECTOR - electrical, plastic

6шт.

15

L70872

SWITCH

- strobe, defogger and light

3шт.

16

F43509

BREAKER

- 6 amp.

2шт.

17

L71009

ELECTRICAL WIRE

WIRE - jumpers

1шт.

18

F43626

ELECTRICAL WIRE

WIRE -, Serial Range: power-defogger

1шт.

19

F43625

RESISTOR

- defogger

1шт.

20

151-535

RIVET,Pop, 1/8" x .462"

2шт.

21

L76771

KNOB

- lights

1шт.

22

A42624

ELECTRICAL WIRE

WIRE -, Serial Range: blower-switch

1шт.

23

F43518

HARNESS

WIRE - jumper, wiper

1шт.

24

D75875

HARNESS - cab

1шт.

25

L73991

CABLE

ASSEMBLY - heater control

1шт.

26

L74557

COVER

- dome light and defogger

1шт.

27

187-1015

SELF-TAP SCREW,Slotted Flat Hd, #10 x 1/2"

SCREW - pan head, self-tapping (#10 - 32 NC x 1/2")

4шт.

28

187-1051

SCREW - pan head, self-tapping (#8 - 32 NC x 1/2")

4шт.

29

D71519

LAMP

ASSEMBLY - dome, Includes: Ref. 30 and 31

1шт.

30

D71459

LAMP

- 24V, Trade #1591

1шт.

31

D71458

LAMP

LENS

1шт.

32

D75876

IGNITION SWITCH

SWITCH - dome light

1шт.

33

D72842

ELECTRICAL WIRE

WIRE - ground

1шт.

34

D71529

HEATER

BLOWER - cab (Parts list figure 76)

1шт.

35

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

36

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

37

195-102

WASHER,1/4"

- flat, 1/4"

4шт.

38

129-141

JAM NUT,Jam, 1/4"-20, G5

4шт.

39

L76770

LIGHT

STROBE LIGHT - parts list figure 70

1шт.

40

A43211

GROMMET

- (Replaces F37942)

1шт.

41

L35830

GROMMET

3шт.

42

L71730

INTERIOR LIGHT

LIGHT ASSEMBLY - parts list figure 70

2шт.

43

D75873

BRACKET

- RH

1шт.

44

D75874

BRACKET - LH

1шт.

45

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

47

F63575

KNOB

- switch

1шт.
