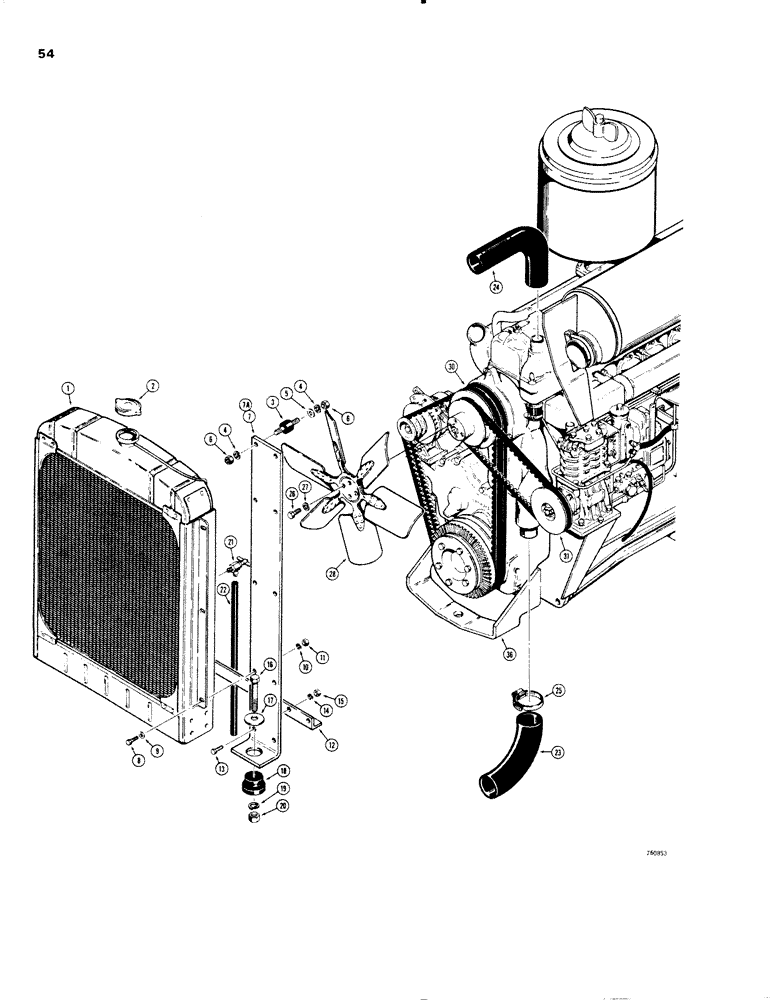

Запчасти Case W20 (054) - RADIATOR, FAN AND FAN BELTS (04) - ELECTRICAL SYSTEMS

1

L46068

RADIATOR

- cooling, Includes: Ref. 2

1шт.

2

D25826

CAP

- radiator

1шт.

3

L11236

BOLT

BOLT - special

2шт.

4

92-5

LOCK WASHER,5/16"

4шт.

5

95-5

WASHER,3/8" x 7/8" x .083"

- standard wrot (5/16")

2шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

7

L48383

SUPPORT

- radiator, R.H.

1шт.

7a

L59192

COUPLING, BREAK AWAY

SUPPORT - radiator, L.H.

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

9

95-6

WASHER,3/8"

- standard wrot () 3/8"

6шт.

10

92-6

LOCK WASHER,3/8"

6шт.

11

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

12

L48387

STABILIZER

- radiator

1шт.

13

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

14

92-5

LOCK WASHER,5/16"

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

16

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

HHCS - 1/2" - 13 NC x 3"

2шт.

17

195-2061

WASHER,5/8" x 1 7/8" x .134"

- flat (1/2")

2шт.

18

L46821

SHOCK ABSORBER

BUSHING - rubber, radiator mount

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

2шт.

21

L74409

LOCK VALVE

VALVE - radiator drain

1шт.

22

L13809

RADIATOR HOSE,6.40 mm ID x 609.60, SAE 30R2 Type I

- Radiator drain 6.40 mm ID x 609.60, SAE 30R2 Type I

1шт.

23

L46256

RADIATOR HOSE,66.50mm ID x 119.40 mm, SAE 20R4

Lower 66.50mm ID x 119.40 mm, SAE 20R4

1шт.

24

L46257

RADIATOR HOSE,2.50" ID x 9.30", SAE 20R4 Class SC or D-1

Upper 2.50" ID x 9.30", SAE 20R4 Class SC or D-1

1шт.

25

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP - hose, radiator

4шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

L73972 fan Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

27

92-6

LOCK WASHER,3/8"

4шт.

28

L73972

FAN

- pusher, radiator cooling

1шт.

30

L48204

SET OF BELTS,0.60" W

V-Belt, Fan and alternator drive 0.60" W

1шт.

31

L57804

BELT,0.50" W

V-BELT , Compressor drive 0.50" W

1шт.
