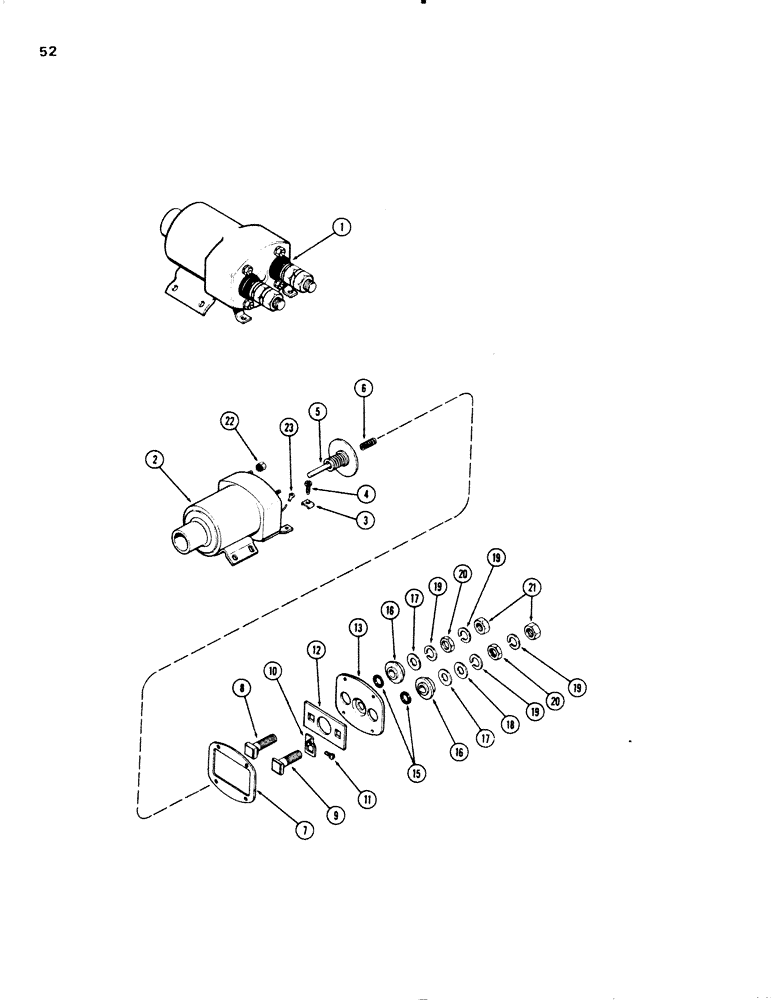

Запчасти Case W20 (052) - A42376 SOLENOID, (401 BD) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

A42376

SWITCH

SOLENOID ASSY. - (Delco-Remy #1119848), Includes: Ref. 2 - 23

1шт.

2

NSS

NOT SOLD SEPARAT

CASE ASSY. - w/coil

1шт.

3

A42407

CLAMP

- terminal

1шт.

4

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clamp

1шт.

5

D32498

CONTACT

ASSY.

1шт.

6

A42411

VALVE SPRING

SPRING - contact return

1шт.

A42412

PLATE

ASSY. - terminal studs, Includes: Ref. 7 - 21

1шт.

7

A42260

GASKET

- terminal plate

1шт.

8

A42413

STUD

- battery terminal

1шт.

9

D32506

STUD

- starter terminal

1шт.

10

D29910

SUPPORT

- coil lead

1шт.

11

175-56

SCREW - wire lead (#6-32 x 3/16" truss hd.) Slotted Truss Hd, #6-32 x 3/16"

1шт.

12

D32507

RUBBER INSULATOR

INSULATOR - terminal plate

1шт.

13

A42410

PLATE

- terminal

1шт.

15

D32510

BUSHING

- rubber, terminal stud

2шт.

16

A43701

BUSHING

INSULATOR - terminal stud

2шт.

17

D30004

WASHER

- insulating, terminal stud

2шт.

18

D30006

WASHER

- terminal stud

2шт.

19

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

4шт.

20

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

D32500

NUT

- plate (Incl. lock washer)

4шт.

23

A42408

ELECTRICAL WIRE

WIRE - ground

1шт.
