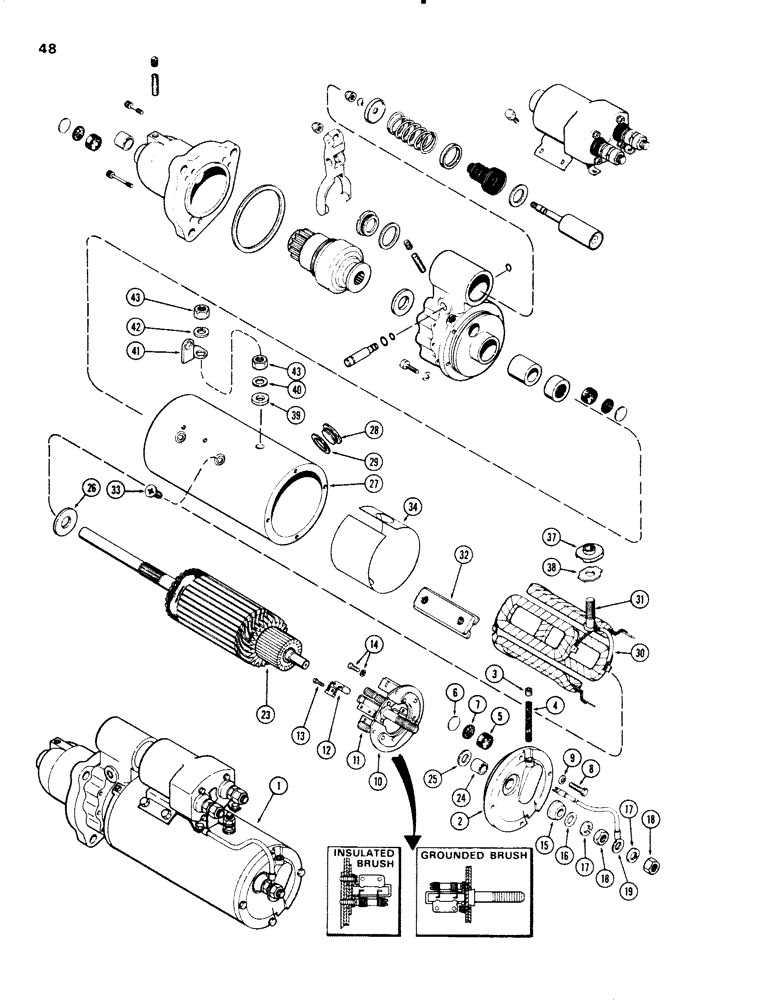

Запчасти Case W20 (048) - R26137 STARTER, (401 BD) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

1

R26137

STARTER MOTOR

STARTER ASSY. - (Delco-Remy #1113998), Includes: Ref. 2 - 43

1шт.

2

A40897

FRAME

ASSY. - commutator end, Includes: Ref. 3 - 7

1шт.

3

221-1041

PLUG

- oil wick hole

1шт.

4

R15023

WICK

- oil

1шт.

5

A41923

PLUG

- oil reservoir (Felt)

1шт.

6

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32" expansion)

1шт.

7

A41973

GASKET

- expansion plug

1шт.

8

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Commutator end Hex, 1/4"-28 x 1", G5

4шт.

9

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

10

A42373

PLATE

ASSY. - brush holder (less brushes)

1шт.

11

A25393

SPRING

- brush tension

8шт.

12

A41456

BRUSH, COMMUTATOR

BRUSH - starter

8шт.

13

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

- brush attach. (#8-32 x 5/16" rd. hd.)

8шт.

14

A43847

SCREW,3/8" - 32 x 1/2"

ASSY. - mtg. plate (w/lockwasher)

3шт.

15

A43701

BUSHING

- termnal stud insulating

1шт.

16

D30006

WASHER

- term. stud (1/2 x 7/8 x 1/32")

1шт.

17

192-113

LOCK WASHER,1/2"

WASHER - term. stud ( lock) 1/2"

2шт.

18

129-105

NUT,Hex, 1/2" - 13, Gr 5

Terminal stud 1/2"-13, G5

2шт.

19

A41978

ELECTRICAL WIRE

WIRE - term., Serial Range: stud-solenoid

1шт.

23

A41458

ARMATURE

1шт.

24

A42323

BUSHING

- armature pilot (in comm. end)

1шт.

25

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- thrust, armature (at comm. end)

1шт.

26

A40892

WASHER

- thrust, armature (at lever hsg.)

1шт.

27

NSS

NOT SOLD SEPARAT

FRAME - starter housing

1шт.

28

R21587

PLUG

- brush inspection

2шт.

29

A41924

GASKET

- inspection plug

2шт.

30

A41590

COIL

ASSY. - field, Includes: Ref. 31

1шт.

31

A40896

STUD

- field terminal

1шт.

32

R15115

SHOE

- pole

4шт.

33

74-610

SCREW,3/8" - 24 x 5/8"

- pole shoes (3/8 x 5/8" N.C. Phillips hd.)

8шт.

34

A44169

INSULATOR

INSULATION - coil

1шт.

A41925

BUSHING

ASSY. - field coil stud insulation, Includes: Ref. 37 and 38

1шт.

37

NSS

NOT SOLD SEPARAT

INSULATOR - field coil stud (inner)

1шт.

38

NSS

NOT SOLD SEPARAT

SUPPORT - stud insulator

1шт.

39

D30005

INSULATOR

- field coil stud (outer)

2шт.

40

D30006

WASHER

- field coil stud (1/2 x 7/8 x 1/32")

1шт.

41

A40894

CONNECTOR, ELEC

CONNECTOR - coil, Serial Range: stud-solenoid

1шт.

42

192-113

LOCK WASHER,1/2"

WASHER - lock 1/2"

1шт.

43

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

R26137

STARTER MOTOR

STARTER ASSY., Includes: Ref. 48 - 92

1шт.

48

R21579

HOUSING

ASSY. - shift lever, Includes: Ref. 49 - 56

1шт.

49

R21580

BUSHING

- housing (7/8 x 1 x 1-1/4")

1шт.

50

R21582

OIL SEAL

- oil (13/16 x 1-3/8 x 7/16")

1шт.

51

R15145

DISC

WASHER - brake starter drive

1шт.

52

A41923

PLUG

- oil reservoir (felt)

1шт.

53

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32" exp.)

1шт.

54

A41973

GASKET

- expansion plug

1шт.

55

221-1041

PLUG

- oil wick hole

1шт.

56

R15023

WICK

- oil

1шт.

57

R21587

PLUG

- shift lever housing

1шт.

58

A41924

GASKET

- housing plug

1шт.

59

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Shift lever housing Hex, 1/4"-28 x 1", G5

5шт.

60

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

5шт.

64

A42397

DRIVE

ASSY. - starter

1шт.

65

D32547

LEVER

- shifter

1шт.

66

A42199

PIN

STUD - pivot, shifter lever

1шт.

67

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

"O" RING - pivot stud (1/4 x 3/8 x 1/16")

1шт.

68

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

"O" RING - pivot stud (3/8 x 1/2 x 1/16")

1шт.

69

G46146

SNAP RING,#37, Ext

Ring, Snap, , pivot stud retaining #37, Ext

1шт.

70

A44168

HOUSING

ASSY. - drive end, Includes: Ref. 71 - 76

1шт.

71

A40893

BUSHING

- armature pilot (5/8 x 3/4 x 3/4")

1шт.

72

A41923

PLUG

- oil reservoir (felt)

1шт.

73

41-57

PLUG,Exp, 1 1/32"

- oil reservoir hole (1-1/32" exp.)

1шт.

74

A41973

GASKET

- expansion plug

1шт.

75

221-1041

PLUG

- oil wick hole

1шт.

76

R15023

WICK

- oil

1шт.

77

R21562

GASKET

- drive end hsg. to shifter lever hsg.

1шт.

78

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive end hsg.(1-5/16 x 7/8" N.C. sckt. hd.)

1шт.

79

D32488

HEX SOC SCREW,5/16" - 18 x 1.50"

SCREW - drive end hsg. (5/16 x 1-1/2" N.C. sckt. hd.)

5шт.

83

A42376

SWITCH

SOLENOID ASSY. - (See Figure 52)

1шт.

84

T15159

SCREW - solenoid mtg. (1/4 x 3/8" N.C. hex.)

4шт.

85

A42309

PLUNGER

- solenoid core

1шт.

86

A42308

BOOT

- plunger

1шт.

87

A41922

WASHER

SEAT - boot (7/8 x 1-3/8 x 1/16")

1шт.

88

A41242

SPRING

- plunger return

1шт.

89

A43380

BACK-UP RING

SEAT - spring (with 1-1/4" hole)

1шт.

90

A43419

SEAT

- spring (with 3/8" hole)

1шт.

91

G46146

SNAP RING,#37, Ext

Ring, Snap, , plunger spring retaining #37, Ext

1шт.

92

131-31

LOCK NUT,5/16"-24, G8

NUT - plunger to shifter lever

1шт.
