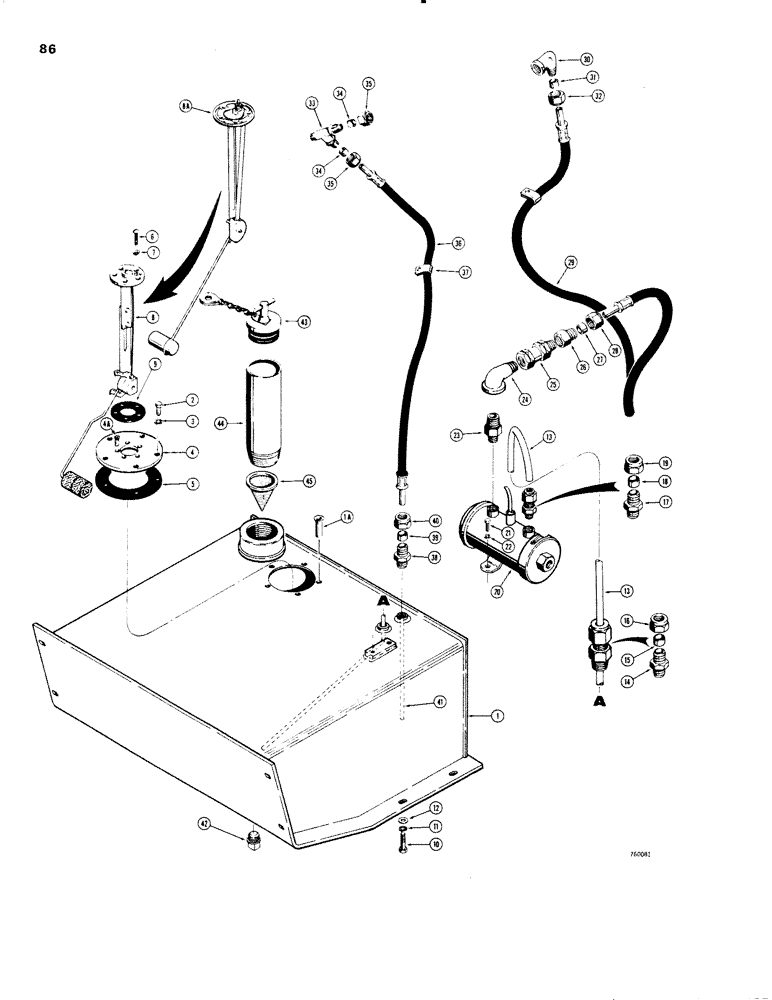

Запчасти Case W20 (086) - FUEL TANK AND RELATED PARTS (03) - FUEL SYSTEM

L74132

TANK

ASSEMBLY - fuel, also includes items 1 - 9 and 42, 43, 44, & 45

1шт.

1

NSS

NOT SOLD SEPARAT

TANK - fuel

1шт.

1a

L13176

NUT

RIVNUT - 1/4" - 20 NC

5шт.

2

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

5шт.

3

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

4

L13193

LARGE PLATE

PLATE ASSEMBLY - hand hole cover

1шт.

4a

L13194

NUT

RIVNUT - #10 - 32 NF

5шт.

5

L13195

GASKET

- hand hole cover

1шт.

6

173-240

RHMS - #10 -32 NC x 3/4"

5шт.

7

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

5шт.

8

L57177

TRANSMITTER

SENDING UNIT - fuel tank

1шт.

9

A11822

GASKET

- fuel sending

1шт.

10

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

11

92-8

LOCK WASHER,1/2"

8шт.

12

195-2061

WASHER,5/8" x 1 7/8" x .134"

- flat (1/2")

8шт.

L46867

FUEL TUBE

TUBE ASSEMBLY - fuel intake, Includes: Ref. 13 - 16

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE - intake

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ASSEMBLY - straight through, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

15

222-654

FERRULE,3/8" Tube, Comp

- fitting

1шт.

16

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - fitting

1шт.

222-606

FITTING,9/16"-24 x 1/8" NPT, Comp

CONNECTOR ASSEMBLY - straight, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

18

222-654

FERRULE,3/8" Tube, Comp

- connector

1шт.

19

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - connector

1шт.

20

REF

INSTRUCTION

PUMP - fuel, part list figure 90

1шт.

21

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

22

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

23

217-60

REDUCER,1/4" - 18 NPT x 1/8" - 27 NPT

NIPPLE - hex., pipe (Reducing)

1шт.

24

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- street, 90 degree

1шт.

25

L17627

VALVE

CHECK VALVE - fuel (If used)

1шт.

222-14

FITTING,5/8"-24 Inv Fl x 1/4" NPT Fem

CONNECTOR ASSEMBLY - female, tube, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

27

222-104

SLEEVE,3/8" Tube

- connector

1шт.

28

222-114

NUT,5/8"-24

NUT - connector

1шт.

29

L47879

HOSE

- fuel pump to primary filter, 22" long (559 mm)

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - tube, 90 degree, Includes: Ref. 30 - 32

1шт.

30

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

31

222-104

SLEEVE,3/8" Tube

- elbow

1шт.

32

222-114

NUT,5/8"-24

NUT - elbow

1шт.

222-642

TEE,3/8"-24 x 1/8" NPT Run x 3/8"-24 BR

ASSEMBLY - male, Includes: Ref. 33 - 35

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - tee

1шт.

34

222-102

SLEEVE,1/4" Tube

Tee 1/4" Tube

2шт.

35

87017024

TUBE NUT,1/2"-24

NUT - tee

2шт.

36

L48042

HOSE

- fuel return

1шт.

37

214-101

HOSE CLAMP,#6, 3/8", Spring

CLAMP - self-tightening

1шт.

222-639

FITTING,7/16"-24 x 1/4" NPT, Comp

ASSEMBLY - tube, fuel return, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - fitting

1шт.

39

222-102

SLEEVE,1/4" Tube

1шт.

40

87017024

TUBE NUT,1/2"-24

NUT - fitting

1шт.

41

L48035

FUEL TUBE

TUBE - fuel return

1шт.

42

221-35

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG - square socket head (3/4")

1шт.

43

L74929

FILLER CAP

CAP, FILLER - fuel tank

1шт.

44

L53397

PIPE

- fuller extension

1шт.

45

L52650

STRAINER ELEMENT

STRAINER - fuel

1шт.
