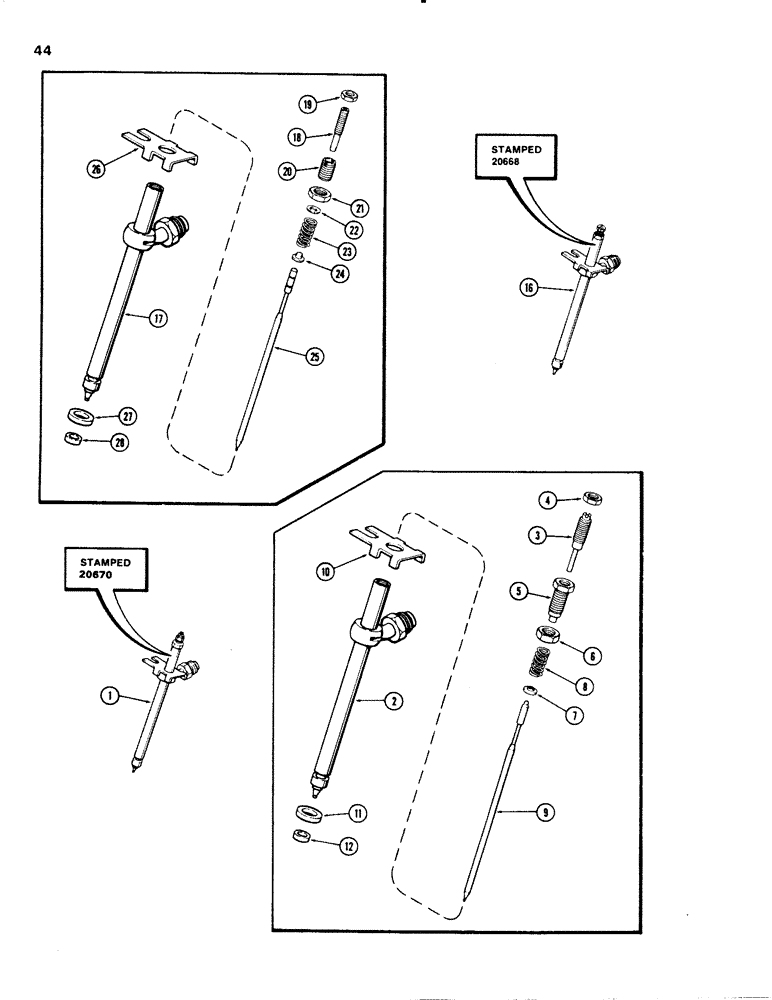

Запчасти Case W20 (044) - A140840 INJECTION NOZZLE, (401 BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

A140840

NOZZLE ASSY. - injector (stamped 20670 on body) (blue color code) (Order A138322) (See Ref. 16), production nozzle, Includes: Ref. 2 - 12

6шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle production

1шт.

3

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, production nozzle

1шт.

4

A43602

NUT

- lock, lift adjusting screw, production nozzle

1шт.

5

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, production nozzle

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw, production nozzle

1шт.

7

A44369

SEAT

- pressure spring, production nozzle

1шт.

8

A43733

SPRING

- pressure adjusting (9/16" free length w/red stain color code), production nozzle

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE - nozzle, production

1шт.

10

A41768

PLATE

- nozzle locating, production

1шт.

11

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, production

1шт.

12

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

WASHER - carbon stop, production nozzle

1шт.

16

A138322

NOZZLE CAP

NOZZLE ASSY. - injector (See Note) (stamped 20668 on body) (red color code), repair, Includes: Ref. 17 - 28

6шт.

Whenever nozzle is removed from head, the seal A41402 and washer A41403 must be replaced before nozzle is installed back in head

1шт.

A138322R

REMAN-INJECT NOZZLE

W20 W/POD CAB - NEW YORK STATE SPECIAL

6шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - nozzle, A138322 injector, repair

1шт.

18

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting, A138322 injector, repair nozzle

1шт.

19

A43602

NUT

- lock, lift adjusting screw, A138322 injector nozzle, repair nozzle

1шт.

20

A45292

SCREW

- pressure adjusting, A138322 injector nozzle, repair nozzle

1шт.

21

A42424

LOCK NUT

- lock, pressure adjusting screw, A138322 injector nozzle, repair nozzle

1шт.

22

A45291

SHIM

SEAT - pressure spring, upper, A138322 injector nozzle, repair nozzle

1шт.

23

A45290

SPRING

- pressure adjusting (11/16" free length w/green color code), A138322 injector nozzle, repair nozzle

1шт.

24

A45289

SEAT

- pressure spring, lower, A138322 injector nozzle, repair nozzle

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A138322 injector, repair

1шт.

26

A41768

PLATE

- nozzle locating, A138322 injector, repair

1шт.

27

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, A138322 injector, repair

1шт.

28

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A138322 injector nozzle, repair nozzle

1шт.
