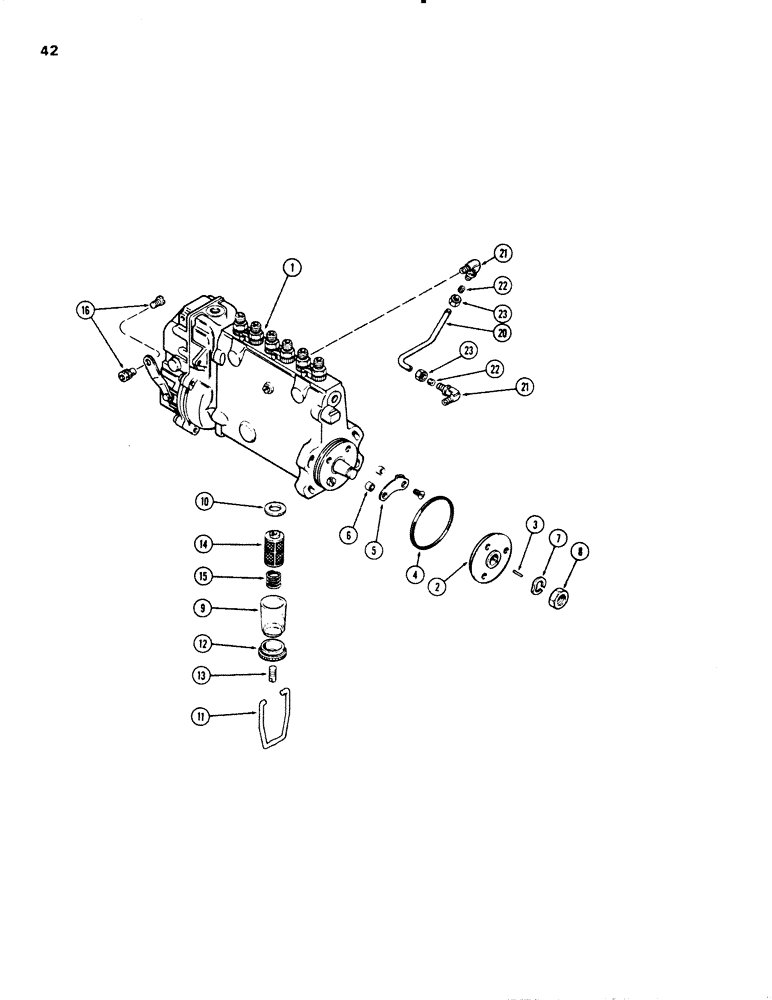

Запчасти Case W20 (042) - A138031 INJECTION PUMP, (401 BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

A138031

PUMP

ASSY. - fuel injection, Includes: Ref. 2 - 15

1шт.

2

A41853

HUB

- pump drive

1шт.

3

A20933

KEY

-, Serial Range: hub-shaft

1шт.

4

A41856

O-RING,3mm Thk x 75mm ID

"O" RING - hub (3 x 3-1/4 x 1/8")

1шт.

5

A41854

INDICATOR

POINTER - pump adjustment

1шт.

6

A41855

BUSHING

SPACER - pointer

2шт.

7

A42312

LOCK WASHER

- lock, hub nut

1шт.

8

A42313

NUT

- hub retaining

1шт.

9

A43347

BOWL

- filter (glass)

1шт.

10

A43346

GASKET

- bowl

1шт.

11

A43350

CLAMP

BAIL - bowl

1шт.

12

A43348

NUT

- bail retaining

1шт.

13

A43349

STUD

- lock, bail nut

1шт.

14

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

15

A43345

SPRING

- element tension

1шт.

16

A59101

PIVOT

- stop control cable

1шт.

20

A136903

TUBE

- lube line

1шт.

21

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSY. - lube line, Includes: Ref. 22 and 23

2шт.

22

222-102

SLEEVE,1/4" Tube

1шт.

23

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

1шт.
