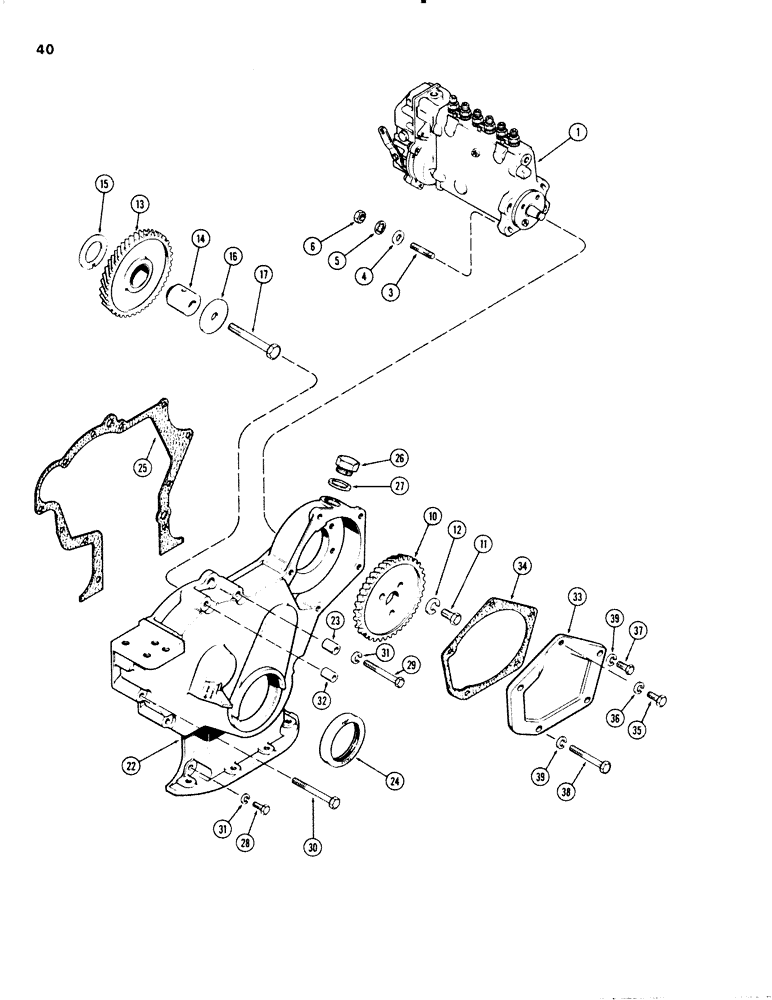

Запчасти Case W20 (040) - INJECTION PUMP DRIVE, (401 BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See figure 42)

1шт.

3

A58689

STUD

- pump mtg. (3/8" N.C. x 1-7/8")

3шт.

3

A142092

STUD

- pump mtg. (3/8" N.C. x 1-7/8") (Drilled for anti-tamper wire)

1шт.

4

A57470

WASHER

- 13/32 x 11/16 x 16 ga.

4шт.

5

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex. (use w/A58689 stud)

3шт.

6

25-126

SLOTTED NUT,3/8"-16, G5

NUT - 3/8" N.C. hex. sltd.(use w/A142092 stud)

1шт.

10

A58693

GEAR

- drive, inj. pump (48 teeth)

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Gear to pump hub Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

A62542

GEAR

ASSY. - idler, w/bushing (53 teeth)

1шт.

14

A58690

SHAFT

- idler gear

1шт.

15

A58691

WASHER

- thrust (1-3/4 x 2-11/16 x 1/16")

1шт.

16

A58692

PLATE

- thrust (1/2 x 2-1/4 x 1/16")

1шт.

17

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Idler shaft Hex, 1/2"-13 x 4 1/4", G5

1шт.

22

A58609

COVER

ASSY - timing gears, Includes: Ref. 23

1шт.

23

A58611

PIN

DOWEL - cover locating (3/8 x 5/8 x1"), timing gear

2шт.

24

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2"), timing gear cover

1шт.

25

A58612

GASKET

- cover to block, timing gear

1шт.

26

A21140

PLUG

- timing window, gear cover

1шт.

27

A58613

SEALING WASHER

GASKET - (1 x 1-1/4 x 1/16" Nylon), timing gear cover

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover, timing gear Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

29

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- cover (3/8 x 2-1/2" N.C. hex.), timing gear

2шт.

30

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" N.C. hex.), timing gear

1шт.

30

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- cover (3/8 x 3-1/4" N.C. hex.), timing gear

2шт.

31

92-6

LOCK WASHER,3/8"

timing gear cover 3/8"

9шт.

32

A19774

BUSHING

SPACER - alternator pry point (3/8" pipe x 1"), timing gear cover

1шт.

33

A61053

COVER

- inj. pump drive gear, timing cover

1шт.

34

A58615

GASKET

- cover, timing gear

1шт.

35

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Cover, timing gear Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

36

92-5

LOCK WASHER,5/16"

timing gear cover 5/16"

1шт.

37

A148253

BOLT

- cover (3/8 x 1-1/4" N.C. hex.) (head drilled for anti-tamper wire), timing gear

2шт.

38

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- cover (3/8 x 3-1/2" N.C. hex.), timing gear

2шт.

39

92-6

LOCK WASHER,3/8"

timing gear cover 3/8"

4шт.
