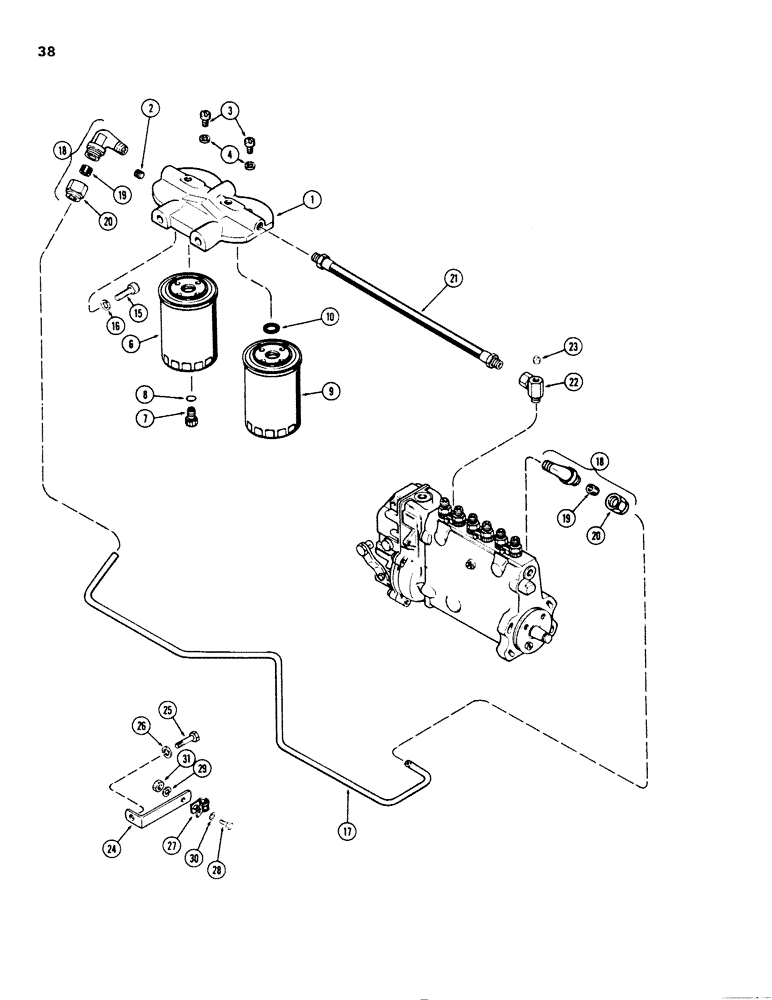

Запчасти Case W20 (038) - FUEL FILTER SYSTEM, (401 BD) DIESEL ENGINE (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
A62347
FILTER
ASSY. - fuel, Includes: Ref. 1 - 10
1шт.
1
A62339
HEAD
ASSY. - filter, Includes: Ref. 2
1шт.
2
221-1849
PLUG
- (1/8" P.T., hex. sckt. hd.)
1шт.
3
A20663
SCREW,Fil Hd, #10 - 32 x 5/16"
- bleed (#10-32 x 5/16" sltd. hd.)
2шт.
4
A66619
WASHER
- bleed screw (3/16 x 3/8 x 1/16")
2шт.
CASA41745
FUEL FILTER
FILTER KIT, Includes: Ref. 6 - 8
1шт.
6
NSS
NOT SOLD SEPARAT
FILTER ASSY. - 1st stage, Includes: Ref. 7 and 8
1шт.
7
G49080
PLUG
- (3/8" P.T., 12 pt. hd., plastic)
1шт.
8
A27891
O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro
"O" RING - plug (3/8 x 9/16 x 3/32")
1шт.
9
NSS
NOT SOLD SEPARAT
FILTER ASSY. - 2nd stage, Includes: Ref. 10
1шт.
10
A42315
GASKET
GASKT - (15/16 x 1-3/16 x 1/4" rubber)
1шт.
15
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
16
92-6
LOCK WASHER,3/8"
2шт.
17
A62342
TUBE
- inj. pump to 1st stage filter
1шт.
18
222-45
ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF
ASSY. - filter tube, Includes: Ref. 19 and 20
2шт.
19
222-103
SLEEVE,5/16" Tube
1шт.
20
222-113
TUBE NUT,9/16"-24
NUT - (for 5/16" tube)
1шт.
21
A65564
HOSE,9.53mm ID x 390.65mm L, SAE 100R6
- filter to inj. pump (15-3/8" long)
1шт.
22
A20539
FITTING
UNION -, Serial Range: hose-pump
1шт.
SOME NEW YORK STATE MACHINE HAVE A8101 FUEL PRESSURE GAUGE INSTALLED INTO THIS UNION.
1шт.
23
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - union (1/8" P.T., sq. hd.)
1шт.
24
A64856
BRACKET
- filter tube support
1шт.
25
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
Bracket Hex, 3/8"-16 x 5/8", G5, Full Thd
1шт.
26
92-6
LOCK WASHER,3/8"
1шт.
27
A62209
CLAMP,5/16", Insul, 1/4" Bolt
CLIP - filter tube
1шт.
28
13-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
Clip Hex, 1/4"-20 x 3/4", G5, Full Thd
1шт.
29
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
30
193-8
LOCK WASHER,Ext Tooth, 1/4"
WASHER, LOCK, Ext Tooth, 1/4"
1шт.
31
25-104
NUT,1/4"-20, G5
1шт.
Выбрано товаров: 29
