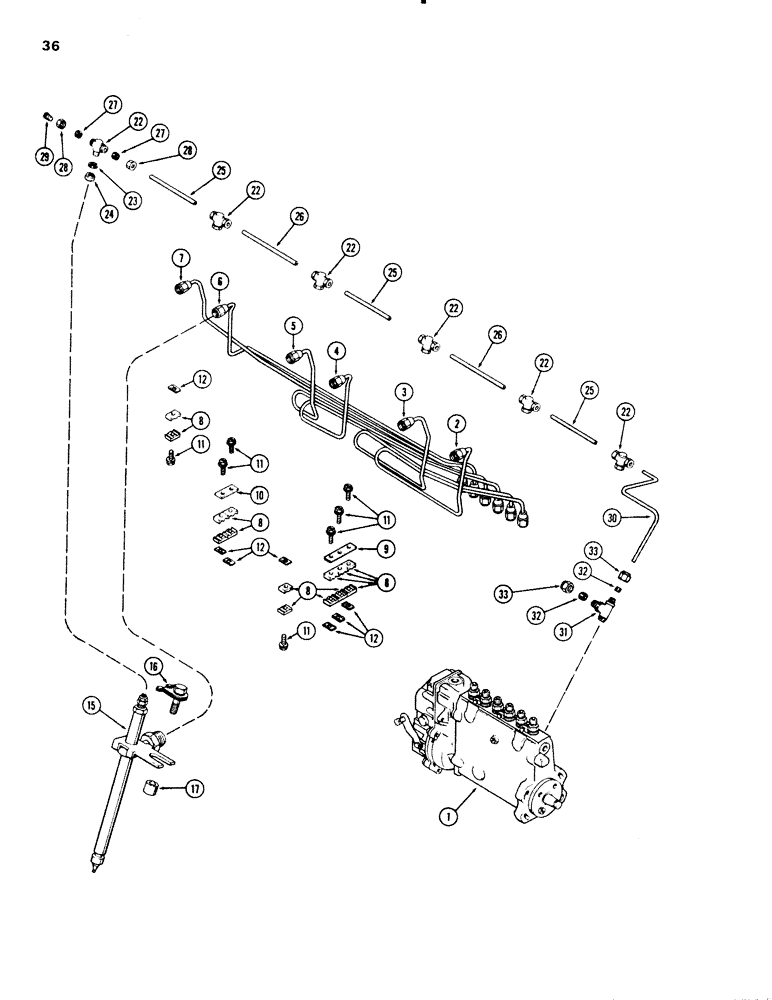

Запчасти Case W20 (036) - FUEL INJECTION SYSTEM, (401 BD) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSY. - fuel injection (See figure 42)

1шт.

2

A58702

TUBE

ASSY. - fuel injection, No. 1 cyl.

1шт.

3

A58703

TUBE

ASSY. - fuel injection, No. 2 cyl.

1шт.

4

A58704

TUBE

ASSY. - fuel injection, No. 3 cyl.

1шт.

5

A58705

TUBE

ASSY. - fuel injection, No. 4 cyl.

1шт.

6

A58706

TUBE

ASSY. - fuel injection, No. 5 cyl.

1шт.

7

A58707

TUBE

ASSY. - fuel injection, No. 6 cyl.

1шт.

8

A58709

BRACKET

- clamp, injection tube

14шт.

9

A58708

PLATE

- clamp, tube bracket (6 tubes)

1шт.

10

A58710

PLATE

- clamp, tube bracket (4 tubes)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- (#10 x 1" N.C. sltd. hex. hd.)

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - speed (#10 Tinnerman)

7шт.

15

REF

INSTRUCTION

NOZZLE ASSY. - injector (See figure 44)

6шт.

16

A58695

CLAMP

ASSY. - nozzle

6шт.

17

A58696

SPACER

- nozzle clamp

6шт.

22

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - fuel leak-off junction

6шт.

23

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: tee-nozzle

6шт.

24

A58961

NUT

-, Serial Range: tee-nozzle

6шт.

25

A58965

TUBE

- fuel leak-off (4-5/8" long)

3шт.

26

A58964

TUBE

- fuel leak-off (5-5/8" long)

2шт.

27

222-102

SLEEVE,1/4" Tube

12шт.

28

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

12шт.

29

47-47

RIVET,FH, 1/4" x 7/16"

- tee (at No. 6 cyl.)

1шт.

30

A58963

TUBE

- fuel leak- off (No. 1 cyl. to inj. pump)

1шт.

31

A59097

VALVE

TEE ASSY. - check valve (one way valve), Includes: Ref. 32 and 33

1шт.

32

222-102

SLEEVE,1/4" Tube

2шт.

33

87017024

TUBE NUT,1/2"-24

NUT - (for 1/4" tube)

2шт.
