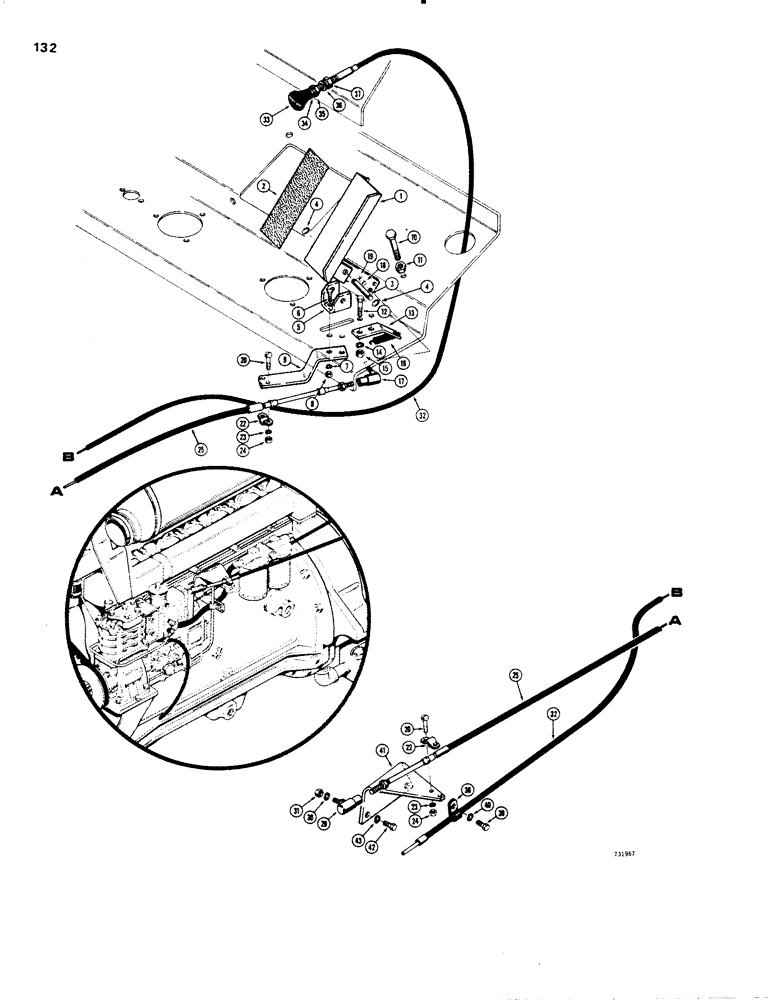

Запчасти Case W20 (132) - ACCELERATOR AND LINKAGE (02) - ENGINE

1

L48004

PEDAL

- accelerator, foot feed

1шт.

2

L48674

PAD

- accelerator, foot feed

1шт.

3

L48003

PIN

- pedal pivot

1шт.

4

A27795

RING

- snap

2шт.

5

L48002

BRACKET

BLOCK - accelerator pedal mounting

1шт.

6

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

7

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

25-104

NUT,1/4"-20, G5

2шт.

9

L48027

BRACKET

- cable mounting, accelerator

1шт.

10

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 16 NC x 2-1/2"

1шт.

11

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex., jam (3/8" - 16 NC)

1шт.

12

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

13

L48024

BRACKET

- accelerator and cable return

1шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

25-104

NUT,1/4"-20, G5

2шт.

16

L48104

SPRING

- return, accelerator

1шт.

17

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball type, accelerator linkage

1шт.

18

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

19

129-37

NUT,#10-32

1шт.

20

177-100

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

- slotted fillister head (#10 - 32 NF x 3/4")

4шт.

22

L12441

CLAMP

- accelerator cable

2шт.

23

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

24

129-37

NUT,#10-32

4шт.

25

L47904

FLEXIBLE CABLE

CABLE - accelerator

1шт.

29

L12437

BALL JOINT,#10 - 32 x 7/8"

JOINT - ball type, at fuel injection pump

1шт.

30

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

31

129-37

NUT,#10-32

1шт.

L50793

PLATE

CABLE ASSEMBLY - fuel shutoff, Includes: Ref. 32 - 37

1шт.

32

NSS

NOT SOLD SEPARAT

CABLE - shutoff

1шт.

33

L33717

KNOB

HANDLE - cable

1шт.

34

219-141

NUT - jam, hex. (1/4" - 20 NC) Zinc plated

1шт.

35

L32866

SEAL

NUT - special ( replaced 129-161 )

1шт.

36

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

37

87016560

JAM NUT,Jam, 3/8"-16, G5

1шт.

38

49859

CLAMP

- cable, shutoff

1шт.

39

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

40

92-6

LOCK WASHER,3/8"

1шт.

41

L48671

BRACKET

- mounting, cable (Rear)

1шт.

42

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

43

92-6

LOCK WASHER,3/8"

1шт.
