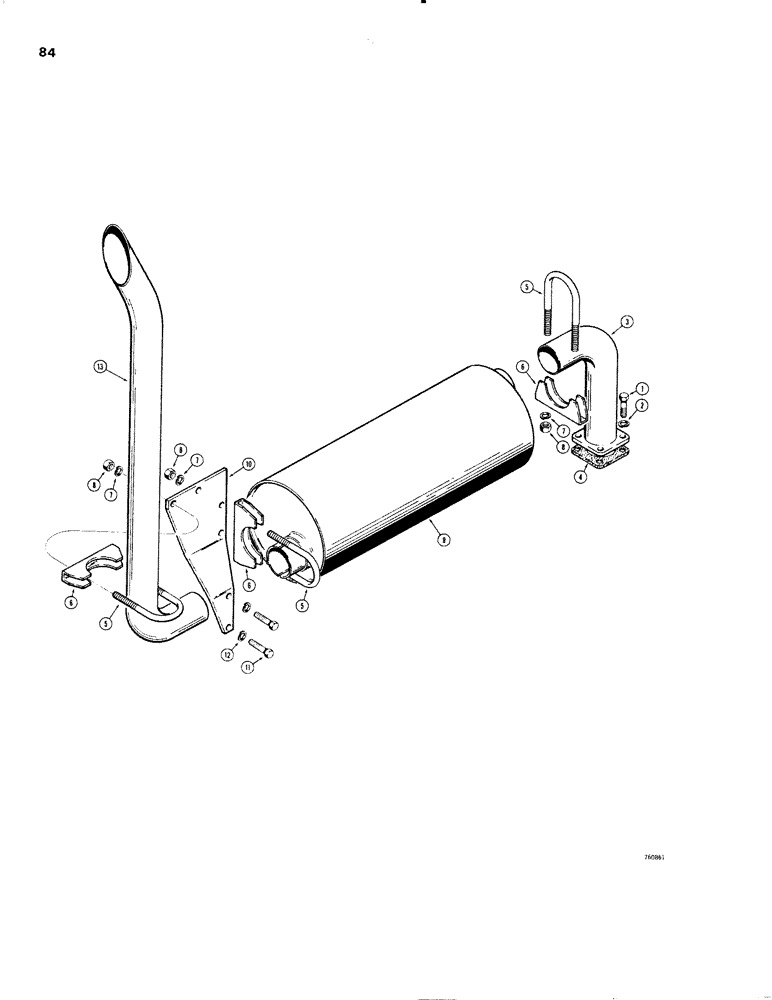

Запчасти Case W20 (084) - EXHAUST SYSTEM (02) - ENGINE

1

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

2

92-6

LOCK WASHER,3/8"

4шт.

3

L14207

ADAPTER

- exhaust, Serial Range: manifold-muffler

1шт.

4

L14218

MANIFOLD GASKET

- adapter to exhaust manifold

1шт.

L73711

CLAMP

ASSEMBLY, Includes: Ref. 5 - 8

3шт.

5

NSS

NOT SOLD SEPARAT

"U" BOLT - muffler clamping

1шт.

6

NSS

NOT SOLD SEPARAT

SADDLE - muffler clamping

1шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

9

L14219

MUFFLER

- engine exhaust

1шт.

10

L48021

SUPPORT

BRACKET - muffler mounting

1шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

L47988

PIPE, EXHAUST SYSTEM

STACK

1шт.
