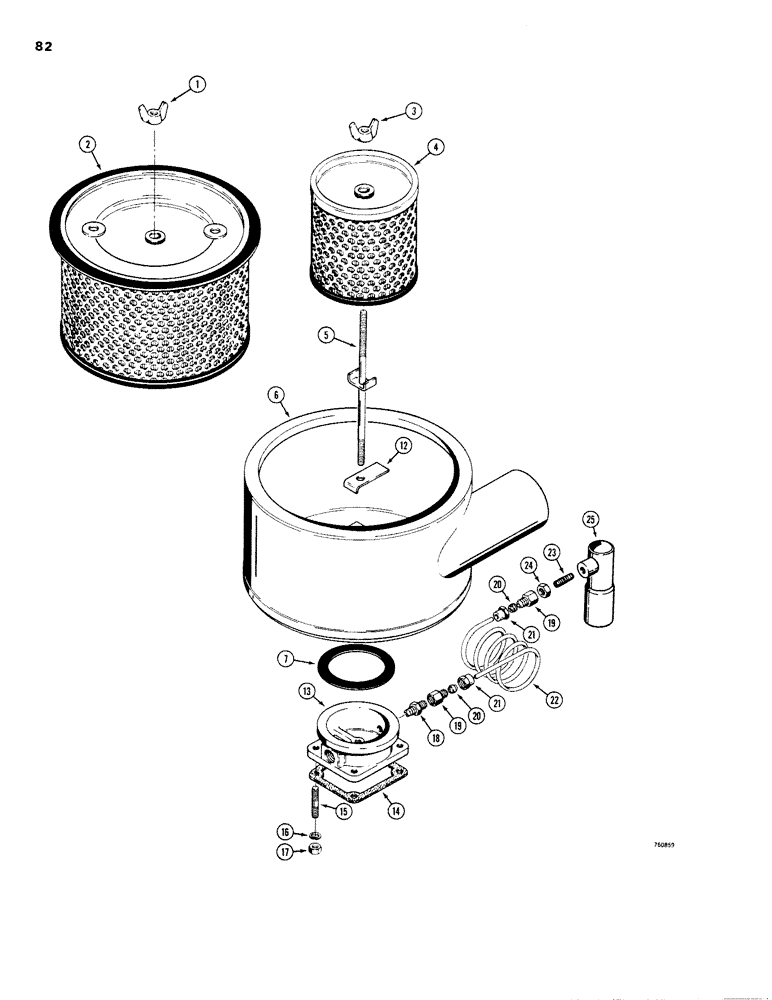

Запчасти Case W20 (082) - AIR CLEANER AND RELATED PARTS (02) - ENGINE

L54055

CLEANER

AIR CLEANER ASSEMBLY - dry type, Includes: Ref. 1 - 7

1шт.

1

129-549

WING NUT,Locking, 3/8"-16

NUT - wing, cover retainer

1шт.

2

A43734

AIR CLEANER

ELEMENT - filter, outer

1шт.

3

129-549

WING NUT,Locking, 3/8"-16

NUT - wing, element retainer

1шт.

4

A43735

AIR CLEANER

ELEMENT - filter, inner

1шт.

5

L35485

BOLT

- special

1шт.

6

A43738

BOWL

BODY - air cleaner

1шт.

7

A43736

GASKET

- air cleaner

1шт.

12

L53838

LOCK ASSY

LOCK - tab

1шт.

13

L53209

ADAPTER

- air cleaner to intake manifold

1шт.

14

A58910

GASKET

- adapter to intake manifold

1шт.

15

L13023

STUD

- special (3/8" - 16 NC)

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

18

D36264

FITTING

CONNECTOR - special

1шт.

222-5150

FITTING,3/8"-24 x 1/8" NPT, Hi-seal

CONNECTOR ASSEMBLY - tube, air cleaner indicator, Includes: Ref. 19 - 21

2шт.

19

NSS

NOT SOLD SEPARAT

BODY - connector

1шт.

20

222-5045

SLEEVE,1/8" Tube

- connector

1шт.

21

222-5058

NUT,3/8"-24

NUT - connector

1шт.

22

D41013

TUBE

- air cleaner indicator

1шт.

23

221-101

PIPE,Nipple, 1/8" NPT x 3/4"

NIPPLE - pipe, at air cleaner indicator

1шт.

24

L13268

LOCK NUT

- special, lock (Indicator mounting)

1шт.

25

A17652

ELECTRICAL GAUGE

INDICATOR - air cleaner filter restriction

1шт.
