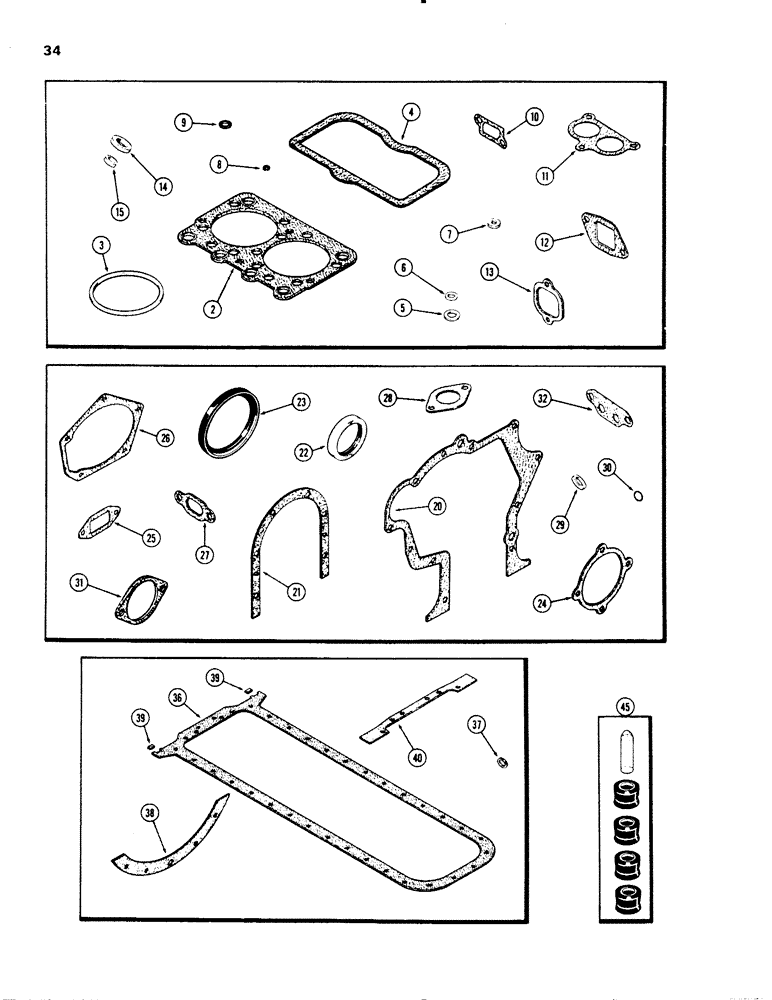

Запчасти Case W20 (034) - ENGINE GASKET KITS, (401 BD) DIESEL ENGINE (02) - ENGINE

A42890

VALVE

GASKET KIT - valve grind, Includes: Ref. 2 - 15

1шт.

For complete engine overhaul order 1-A42890, 1-A42096 & 1-A46005

1шт.

2

A62215

GASKET

- cylinder head to block, valve grind kit

3шт.

3

A34686

RING

- fire, cyl. head (Standard), valve grind kit

6шт.

4

A65734

CYLINDER HEAD GASKET

- cylinder head cover, valve grind kit

3шт.

5

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube, lower (11/16 x1-1/4 x 1/4"), valve grind kit

3шт.

6

A34133

GASKET

- breather tube, upper (9/32 x 1/2 x 1/16"), valve grind kit

3шт.

7

A23684

GASKET

GASKET - cover studs (1/2 x 7/8 x 1/8"), valve grind kit

6шт.

8

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16"), valve grind kit

3шт.

9

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake & exhaust valves (See ref. 45), valve grind kit

12шт.

10

A58637

MANIFOLD GASKET

- water manifold, valve grind kit

3шт.

11

A58639

GASKET

- thermostat housing, valve grind kit

1шт.

12

A58662

MANIFOLD GASKET

- intake manifold, valve grind kit

6шт.

13

A58895

GASKET

- exhaust manifold, valve grind kit

6шт.

14

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle body, valve grind kit

6шт.

15

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

WASHER - injector nozzle carbon stop, valve grind kit

6шт.

A42096

GASKET

KIT - cylinder block, Includes: Ref. 20 - 32

1шт.

For complete engine overhaul order 1-A42890, 1-A42096 & 1-A46005

1шт.

20

A58612

GASKET

- timing gear cover, cylinder block kit

1шт.

21

A32830

GASKET

- rear oil seal retainer, cylinder block kit

1шт.

22

A62049

OIL SEAL

- oil, crankshaft, front (2-5/8 x 3-5/8 x 1/2"), cylinder block kit

1шт.

23

A62050

OIL SEAL

- oil, crankshaft, rear (4-3/4 x 5-3/4 x 1/2"), cylinder block kit

1шт.

24

A58649

GASKET

- water pump to body, cylinder block kit

1шт.

25

A58646

GASKET

- water pump body, cylinder block kit

1шт.

26

A58615

GASKET

- fuel pump cover, cylinder block kit

1шт.

27

A58670

GASKET

- oil cooler water opening, cylinder block kit

1шт.

28

A58680

OIL PAN GASKET SET

- oil cooler tube, cylinder block kit

1шт.

29

A58613

SEALING WASHER

GASKET - timing window plug, cylinder block kit

1шт.

30

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - oil pump (15/16 x 1-1/8 x 3/32"), cylinder block kit

3шт.

31

A58617

GASKET

- (not used this application), cylinder block kit

1шт.

32

A58756

OIL PAN GASKET SET

- (not used this application), cylinder block kit

1шт.

A46005

GASKET

KIT - oil pan , Includes: Ref. 36 - 40

1шт.

For complete engine overhaul order 1-A42890, 1-A42096 & 1-A46005

1шт.

36

NSS

NOT SOLD SEPARAT

GASKET - oil pan kit

1шт.

37

A27968

RING

- oil pan drain plug kit

1шт.

38

A57966

GASKET

- trans. housing, lower, oil pan kit

1шт.

39

A75308

OIL PAN GASKET SET

- (Not used this application), oil pan kit

2шт.

40

A76249

GASKET

- (Not used this application), oil pan kit

1шт.

45

M20614

SEAL KIT

SEAL KIT - valves (Incl. 4 seals & installation sleeve), oil pan kit

1шт.
