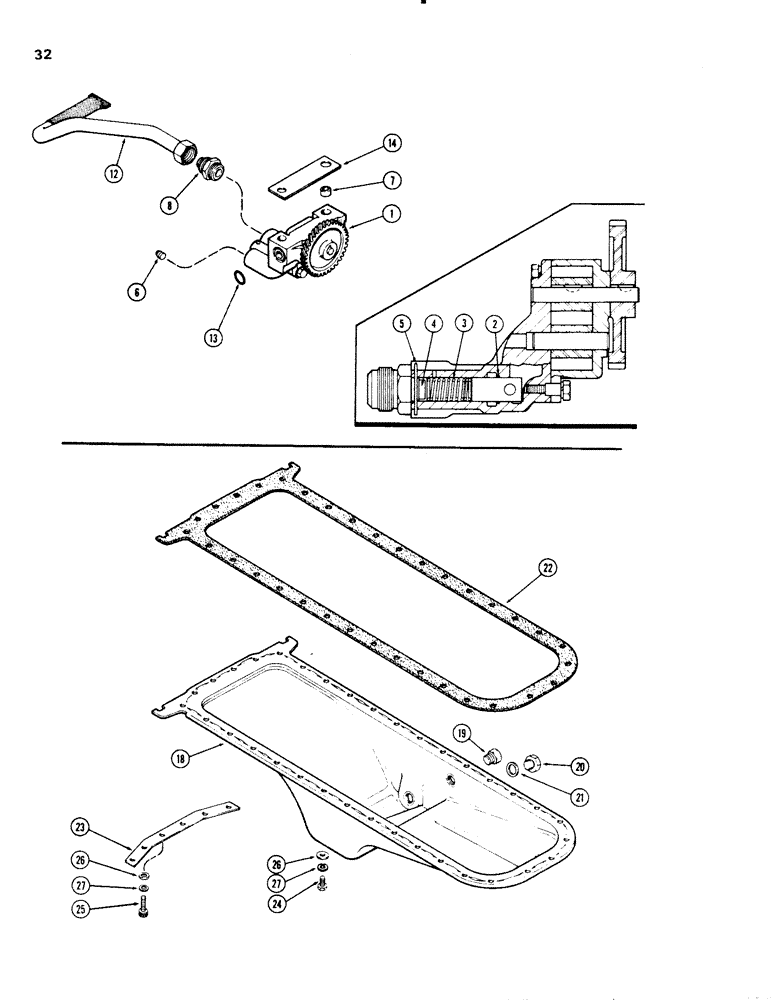

Запчасти Case W20 (032) - OIL PUMP, (401 BD) DIESEL ENGINE (02) - ENGINE

1

A144773

PUMP

ASSY. - oil, Includes: Ref. 2 - 7

1шт.

2

A65083

VALVE

- relief

1шт.

3

A59111

SPRING

- relief valve

1шт.

4

41-1011

PLUG,Cup, 11/16"

- relief valve (11/16" cup type)

1шт.

5

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- (1/2" P.T., hex. sckt. hd.)

1шт.

7

A58915

SLEEVE

- pump body

1шт.

8

A142004

CONNECTOR, ELEC

CONNECTOR - oil tube

1шт.

12

A139711

TUBE

- oil suction (incl. screen)

1шт.

13

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - pump to block (15/16 x 1-1/8 x 3/32")

1шт.

14

A58859

SHIM,.005" Thk

Oil pump to brg. cap .005" Thk

1шт.

18

A62410

PAN

ASSY. - oil, Includes: Ref. 19

1шт.

19

221-664

PLUG,Hex Hd, 1/2"-14

- compressor drain (1/2" P.T. hex. hd.), oil pan

1шт.

20

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

21

A27968

RING

- oil pan drain plug

1шт.

22

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A46005) (See figure 34)

1шт.

23

A58932

STRAP

- oil pan reinforcing

1шт.

24

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

32шт.

25

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - oil pan (3/8 x 1-1/2" N.C. hex. w/washer)

2шт.

26

195-25

WASHER,3/8"

- 7/16 x 13/16 x 1/16", oil pan

40шт.

27

92-6

LOCK WASHER,3/8"

oil pan 3/8"

32шт.
