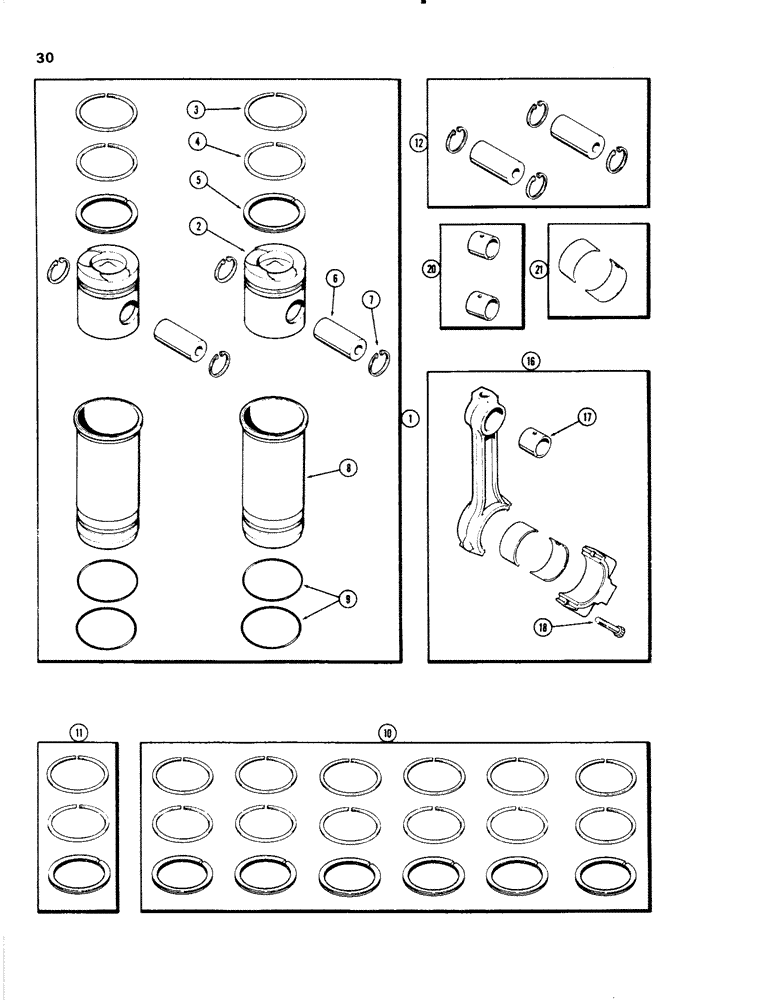

Запчасти Case W20 (030) - PISTONS, (401 BD) DIESEL ENGINE (02) - ENGINE

1

A44069

PISTON

ASSY. - (Set of 2) , Includes: Ref. 2 - 9

3шт.

2

A65127

PISTON

- (4-1/8" dia.)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, 1st groove (Order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, 2nd groove (Order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, 3rd groove (Order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - wrist, piston (Order ref.12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

Ring, Snap, , wrist pin 1.50", Int, #150

4шт.

8

A136009

SLEEVE

- cylinder liner

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing (4-1/4 x 4-1/2 x 1/8")

4шт.

10

A41969

RING

KIT - piston re-ring (Set of 6) , Includes: Ref. 11

1шт.

11

A41967

RING, PISTON

RING KIT - piston re-ring (Set of 1)

6шт.

12

A24517

PIN

KIT - piston (set of 2 w/ret. rings)

3шт.

16

A62952

ROD

ASSY. - connecting, Includes: Ref. 17 and 18

6шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20 ), connecting rods

1шт.

18

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - conn. rod cap (1/2" N.F. x 2-3/16")

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2), connecting rods

3шт.

21

A43173

BEARING LINER

LINER SET - conn. rod brg. (Std.) (Set of 2)

6шт.

21

A43175

BEARING LINER,70.25mm ID x 74.32mm OD x 40.54mm W

LINER SET - conn. rod brg. (-.010") (Set of 2)

6шт.

21

A43176

BEARING LINER,70mm ID x 74.32mm OD x 40.54mm W

LINER SET - conn. rod brg. (-.020") (Set of 2)

6шт.

21

A43177

BEARING LINER

LINER SET - conn. rod brg. (-.030") (Set of 2)

6шт.
