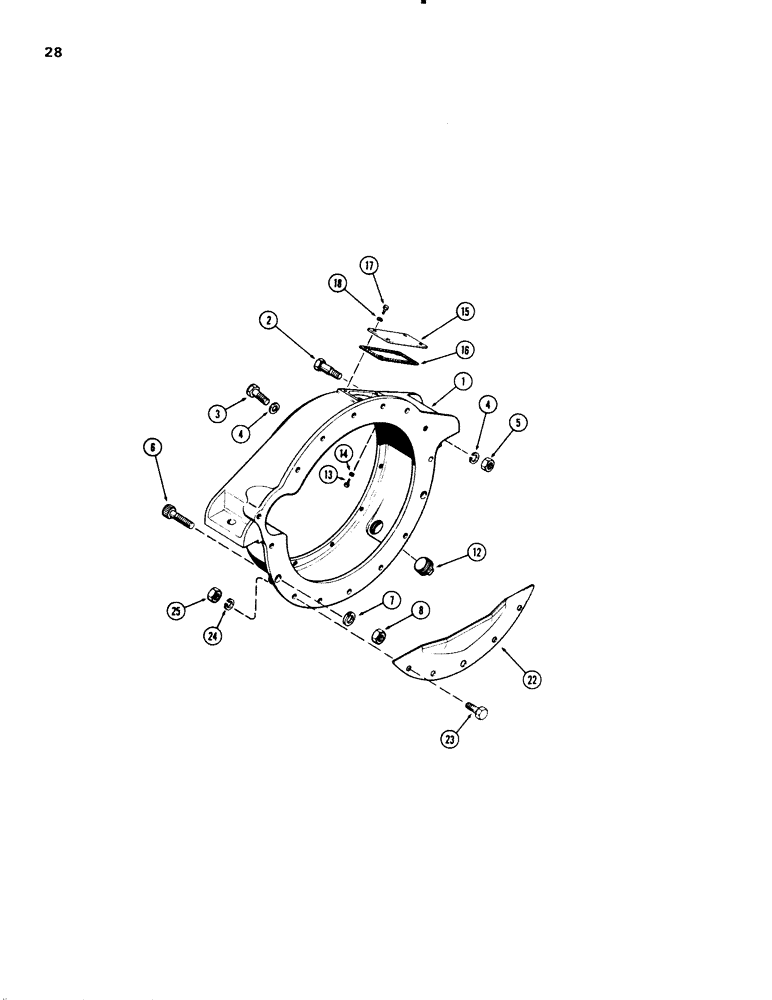

Запчасти Case W20 (028) - FLYWHEEL HOUSING, (401 BD) DIESEL ENGINE (02) - ENGINE

1

A21040

HOUSING

- flywheel

1шт.

2

A61040

STEP BOLT

BOLT - shoulder (1/2" N.C. x 3 '')

1шт.

2

A61041

STEP BOLT

BOLT - shoulder (1/2" N.C. x 2-13/16")

1шт.

3

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

3шт.

3

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

1шт.

3

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- (1/2 x 2-1/4" N.C. hex.)

2шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

- (3/4 x 3" N.C., 12 pt. hd.)

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

25-1012

NUT,3/4"-10, G5

2шт.

12

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - housing (1-1/4" P.T., sq. hd.)

1шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

PLUG - housing (1/4 x 1/2" N.C. hex.)

2шт.

14

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

15

A22584

COVER

PLATE - hand hole

1шт.

16

A22585

GASKET

- hand hole plate

1шт.

17

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

18

92-5

LOCK WASHER,5/16"

WASHER - 5/8" lock

4шт.

22

A58931

GUARD

SHIELD - dust

1шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

24

92-8

LOCK WASHER,1/2"

4шт.

25

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.
