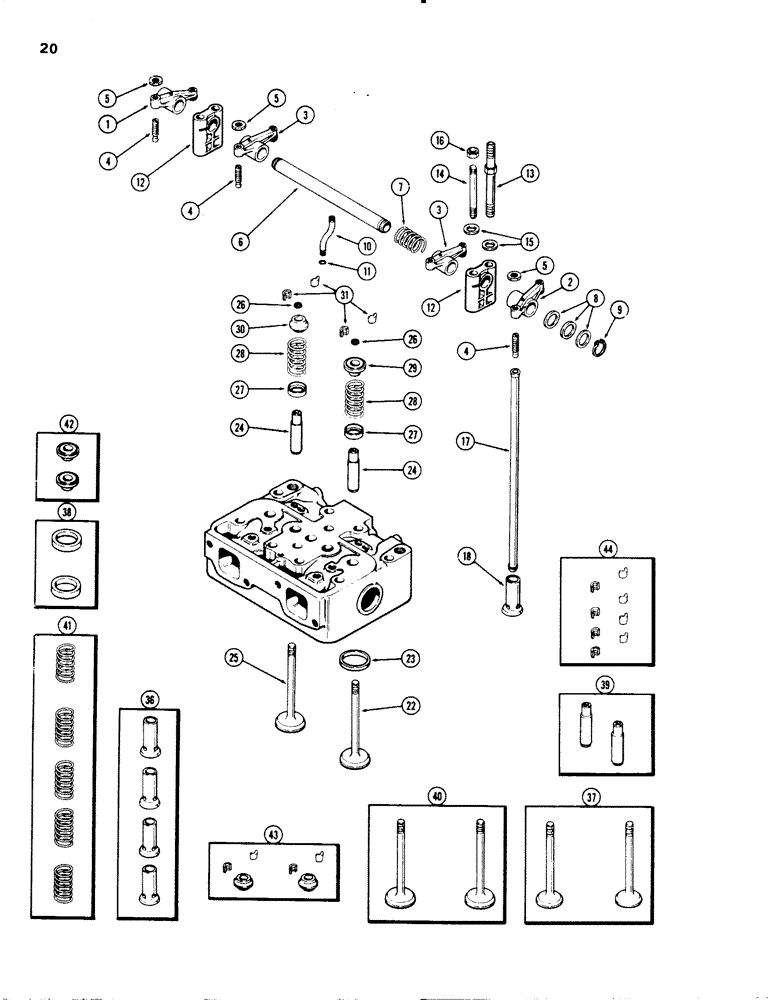

Запчасти Case W20 (020) - VALVE MECHANISM, (401 BD) DIESEL ENGINE (02) - ENGINE

1

A58656

ARM

- rocker, exhaust (1st, 3rd & 5th cyl.) ( reolaced A58655 )

3шт.

2

A58655

ARM

- rocker, exhaust (2nd, 4th & 6th cyl.) ( replaced A58656 )

3шт.

3

A58654

ARM

- rocker, intake

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting, rocker arm

12шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- lock, adj. screw (3/8" N.F. hex., jam)

12шт.

6

A57532

SHAFT

- rocker arm

3шт.

7

A27877

SPRING

- rocker arm

3шт.

8

A27878

WASHER

- thrust, rocker shaft (7/8 x 15/16 x 1/32")

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , thrust washer #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - oil tube (3/16 x 5/16 x 1/16")

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

13

A67121

STUD

- bracket & cover (7/16" N.C. x 6")

6шт.

14

A58659

STUD

- bracket (7/16" N.C. x 4-5/16")

6шт.

15

195-29

WASHER,7/16"

- brkt. studs (1/2 x 1 x 1/16")

12шт.

16

25-107

NUT,7/16"-14, G5

- brkt. studs (7/16" N.C. hex.)

6шт.

17

A58596

ROD

ASSY. - push

12шт.

18

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order Ref. 36)

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 37)

6шт.

23

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 38)

6шт.

24

NSS

NOT SOLD SEPARAT

GUIDE - valves (Order Ref. 39)

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 40)

6шт.

26

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

27

A66328

SEAT

- valve spring

12шт.

28

NSS

NOT SOLD SEPARAT

SPRING - valve (Order Ref. 41)

12шт.

29

NSS

NOT SOLD SEPARAT

ROTOR-COIL - exhaust valve (Order Ref. 42)

6шт.

30

NSS

NOT SOLD SEPARAT

RETAINER - intake valve (Order Ref. 43)

6шт.

31

NSS

NOT SOLD SEPARAT

LOCK - valve spring retainers (Order Ref. 44)

24шт.

36

A21653

KIT

LIFTER KIT - push rod (Set of 4) (Standard) (.810" O.D.)

3шт.

36

A22463

KIT

LIFTER KIT - push rod (Set of 4) (Oversize) (.819" O.D.)

3шт.

37

A41965

VALVE

KIT - exhaust (Set of 2)

3шт.

38

A41985

INSERT

KIT - exhaust valve seat (Set of 2)

3шт.

39

A41781

GUIDE

KIT - valves (Set of 2)

6шт.

40

A41966

VALVE

KIT - intake (Set of 2)

3шт.

41

A42895

SPRING

KIT - valves (Set of 4)

3шт.

42

A44658

COIL

ROTO-COIL KIT - exhaust valve (Set of 2)

3шт.

43

A44645

KIT

RETAINER KIT - w/locks (Set of 2)

3шт.

44

A40352

LOCK

KIT - valve springs (Set of 8)

3шт.
