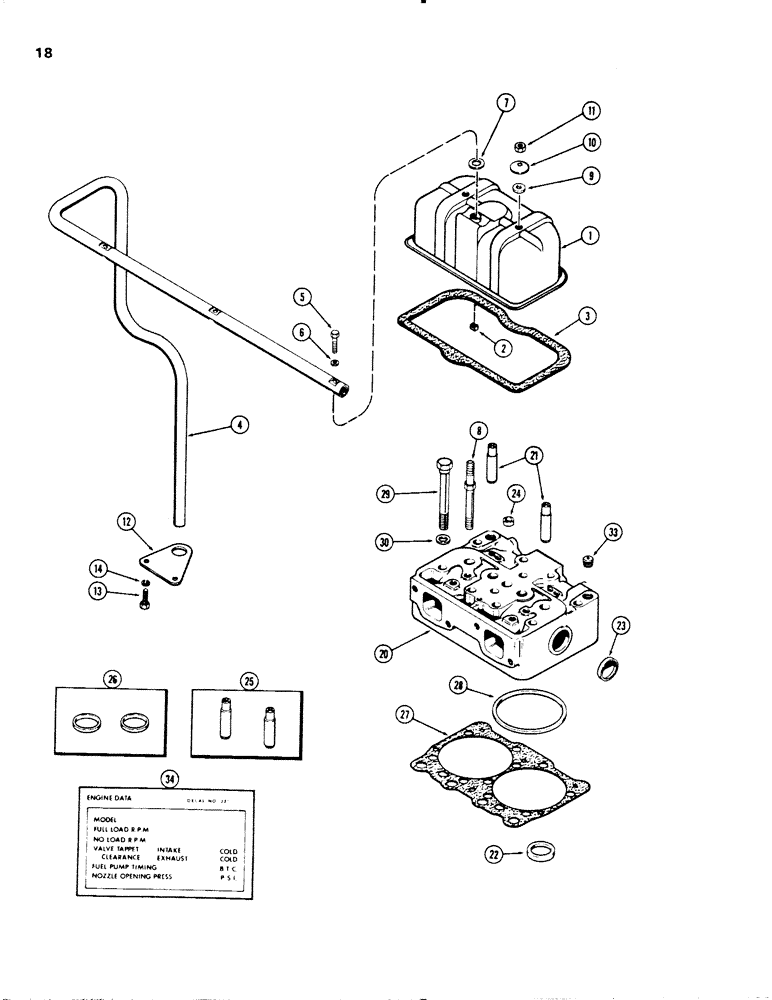

Запчасти Case W20 (018) - CYLINDER HEAD AND COVER, (401 BD) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

ASSY. - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - (1/4" N.C. Tinnerman)

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover

3шт.

4

A62516

TUBE

- breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

Tube Hex, 1/4"-20 x 2 1/2", G5

3шт.

6

A34133

GASKET

- tube, upper (1/4 x 1/2 x 1/16")

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- tube, lower (11/16 x 1-1/4 x 1/4")

3шт.

8

A67121

STUD

- cover & rocker arm brkt. (7/16" N.C. x 6")

6шт.

9

A23684

GASKET

GASKET - cover stud (1/2 x 7/8 x 1/8")

6шт.

10

A23683

WASHER

- cover stud (dome type)

6шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

6шт.

12

A58734

BRACKET

- breather tube (on oil pan)

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - bracket (3/8 x 1-1/2" N.C. nex., sems)

2шт.

14

195-25

WASHER,3/8"

Bracket spacer 3/8"

1шт.

20

A58885

CYLINDER

HEAD ASSY. - cylinder (casting no. A58523), Includes: Ref. 21 - 24

3шт.

21

NSS

NOT SOLD SEPARAT

GUIDE - valve (Order Ref. 25)

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve seat (Order Ref. 26)

2шт.

23

A34124

PLUG,Cup, 1 5/8", Stainless

- (1-5/8" cup type)

2шт.

24

A58620

PLUG,Cup, 3/4", Stainless

- (3/4" cup type)

3шт.

25

A41781

GUIDE

KIT - valves (set of 2)

6шт.

26

A41985

INSERT

KIT - exhaust valve seat (Set of 2)

3шт.

27

A62215

GASKET

- cylinder head

3шт.

28

A34686

RING

- fire (Standard)(no color code)

6шт.

28

A34688

RING

- fire (Oversize) (blue stripe color code)

6шт.

29

A76638

BOLT

- cyl. head to block (5/8 x 6-1/4" N.C. hex.)

30шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - head bolt (5/8 x 1 x 3/16")

30шт.

33

221-1843

PLUG

- (3/8" P.T. hex. sckt. hd.)

6шт.

34

321-2319

DECAL

- engine data (on cyl. head cover)

1шт.
