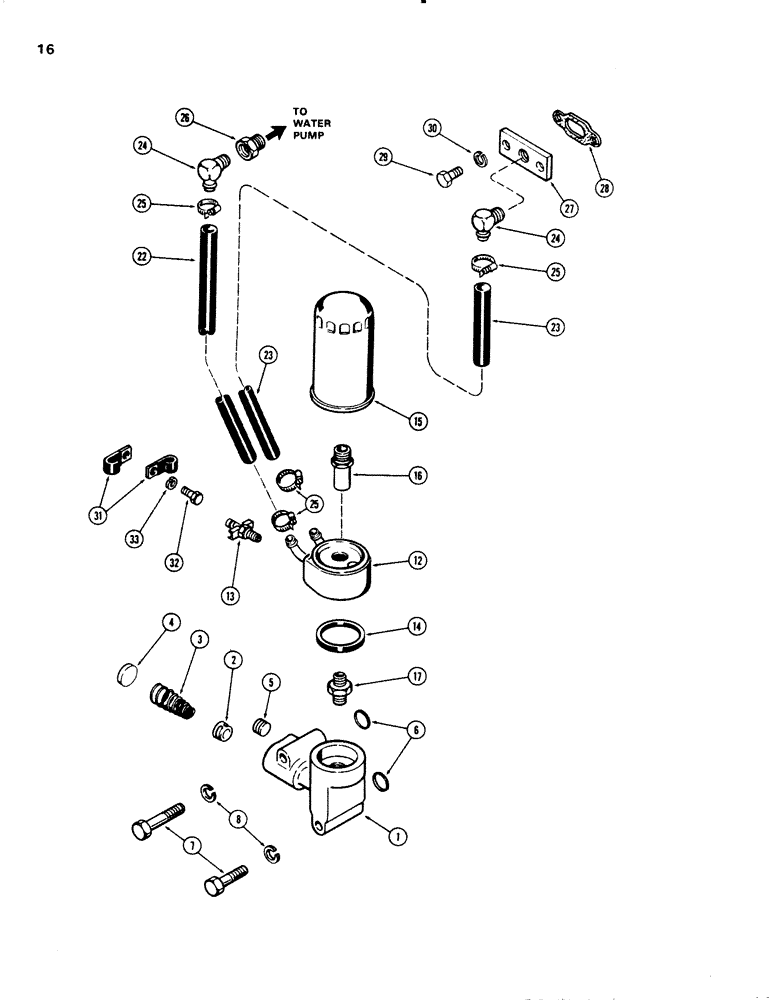

Запчасти Case W20 (016) - OIL FILTER AND COOLER, (401 BD) DIESEL ENGINE (02) - ENGINE

A65849

BASE

ASSY. - oil filter & cooler, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BASE - (Uses A58831 adapter)

1шт.

2

A21090

VALVE

- relief

1шт.

3

A58669

SPRING

- relief valve

1шт.

4

41-1020

PLUG,Cup, 1 1/4"

- relief valve (1-1/4" cup type)

1шт.

5

221-844

PLUG,Hex Soc, 1/2"-14

- 1/2" P.T., hex. sckt. hd.

1шт.

6

A64434

O-RING,0.93" ID x 1.142" x 0.106"

"O" RING - base to block (15/16 x 1-5/16 x 1/8")

2шт.

7

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

Base to block Hex, 1/2"-13 x 3 3/4", G5

2шт.

8

195-33

WASHER,1/2"

- 1/2 x 1 x 1/8"

1шт.

12

A66295

COOLER

- oil

1шт.

13

217-107

VALVE

- drain (discard 1/8" pipe plug in cooler)

1шт.

14

A66410

SEALING RING

- oil, cooler to base (2-5/8 x 3 x 3/16" sq.)

1шт.

15

A75294

ENGINE OIL FILTER

FILTER - oil (Used A66992 adapter)

1шт.

16

A66992

ADAPTER

- upper (1" -12 N.F. external threads & 3/4" -16 N.F. internal threads)

1шт.

17

A58831

ADAPTER

- lower (1" - 8 N.C. external threads & 3/4" - 16 N.F. external threads)

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - water outlet (15" long) (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - water inlet (29" long) (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - (5/8" I.D. x 1" O.D. x 50 ft.) (Cut length req.)

1шт.

24

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (90 degree w/barb. end)

2шт.

25

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose (9/16" to 1-1/16")

4шт.

26

221-93

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducing (to water pump)(3/4" to 1/2")

1шт.

27

A66993

FLANGE

- outlet hose (to block)

1шт.

28

A58670

GASKET

- flange

1шт.

29

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Flange to block Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

NLS

NO LONGER SERVICED

CLIP - hose

2шт.

32

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Clip Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

33

92-6

LOCK WASHER,3/8"

1шт.
