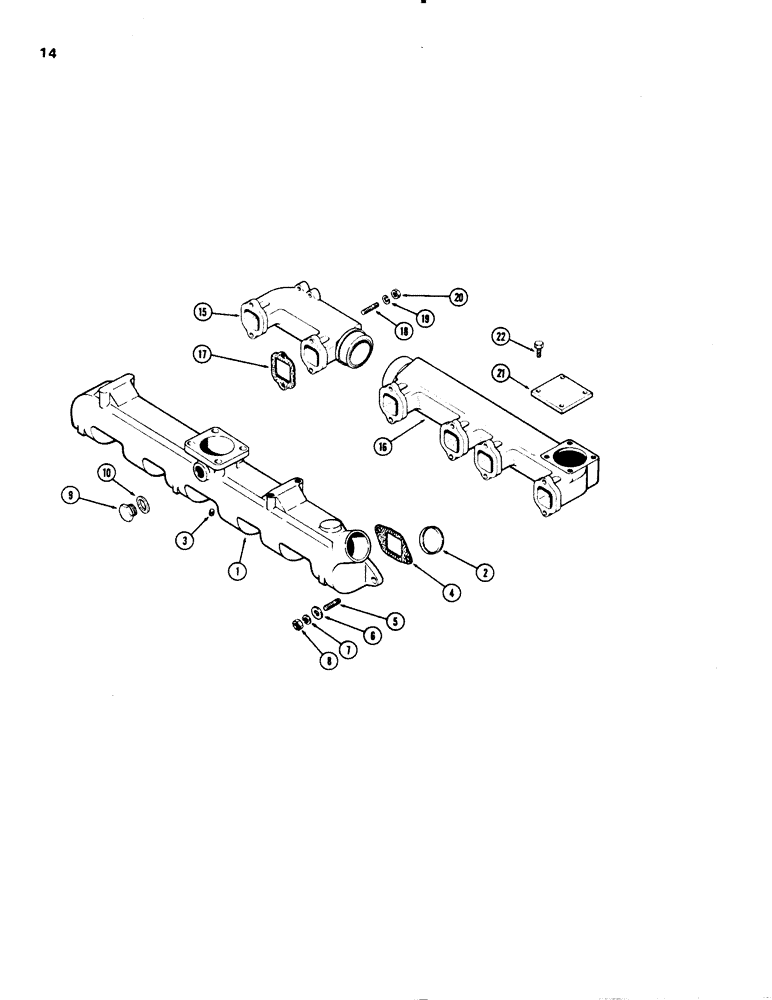

Запчасти Case W20 (014) - MANIFOLDS, (401 BD) DIESEL ENGINE (02) - ENGINE

1

A62845

MANIFOLD

ASSY. - intake, Includes: Ref. 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- (2-5/8" cup type), intake manifold

1шт.

3

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - (1/8" P.T., sq. hd.), intake manifold

1шт.

4

A58662

MANIFOLD GASKET

- intake manifold

6шт.

5

A59077

STUD

- intake manifold (3/8" N.C. x 1-3/4")

12шт.

6

195-25

WASHER,3/8"

- 7/16 x 13/16 x 1/16", intake manifold

12шт.

7

92-6

LOCK WASHER,3/8"

intake manifold 3/8"

12шт.

8

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., intake manifold

12шт.

9

A20917

PLUG

- heater hole, intake manifold

1шт.

10

A20916

MANIFOLD GASKET

GASKET - plug, intake manifold

1шт.

15

A58663

MANIFOLD

- exhaust, rear

1шт.

16

A58664

MANIFOLD

- exhaust, front

1шт.

17

A58666

MANIFOLD GASKET

- exhaust manifold (asbestos faced)

6шт.

18

A59077

STUD

- exhaust manifold (3/8" N.C. x 1-3/4")

12шт.

19

92-6

LOCK WASHER,3/8"

exhaust manifold 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT - 3/8" N.C. Seez-Pruf, exhaust manifold

12шт.

21

A58665

COVER

- exhaust manifold

1шт.

22

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Cover, exhaust manifold Hex, 3/8"-16 x 1", G5, Full Thd

4шт.
