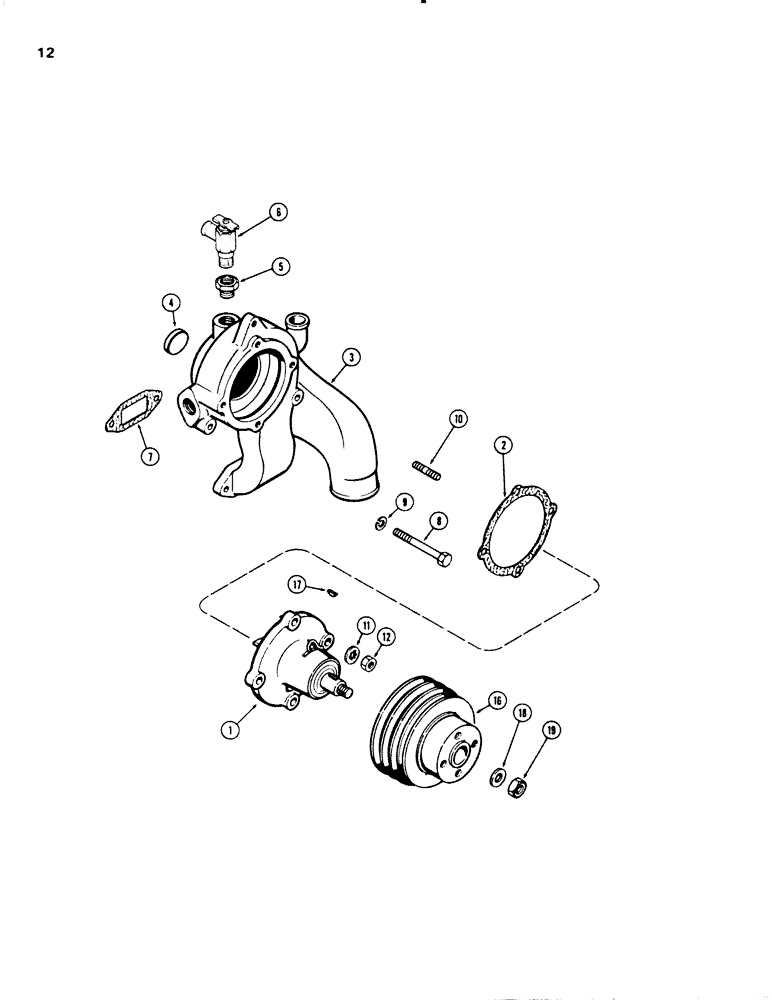

Запчасти Case W20 (012) - WATER PUMP, (401 BD) DIESEL ENGINE (02) - ENGINE

1

A62974

PUMP

ASSY. - water

1шт.

2

A58646

GASKET

-, Serial Range: pump-body

1шт.

3

A136441

HOUSING

BODY ASSY. - water pump, Includes: Ref. 4

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- body (1-3/8" cup type)

1шт.

5

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing (1/2" to 3/8")

1шт.

6

A66821

VALVE

- water shut-off

1шт.

7

A58649

GASKET

- pump body

1шт.

8

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Body to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

8

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

Body to block Hex, 3/8"-16 x 4", G5

2шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

A62234

STUD

- pump to body (3/8" N.C. x 1-5/16")

4шт.

11

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

12

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

4шт.

16

A62731

PULLEY

- drive, water pump & fan

1шт.

17

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

Pulley #9, 3/16" x 3/4", HT

1шт.

18

A58651

WASHER

- pulley (1/2 x 1-1/16 x 1/8")

1шт.

19

131-1106

LOCK NUT,1/2"-20, GB

NUT, LOCK, , Pulley 1/2"-20, GB

1шт.
