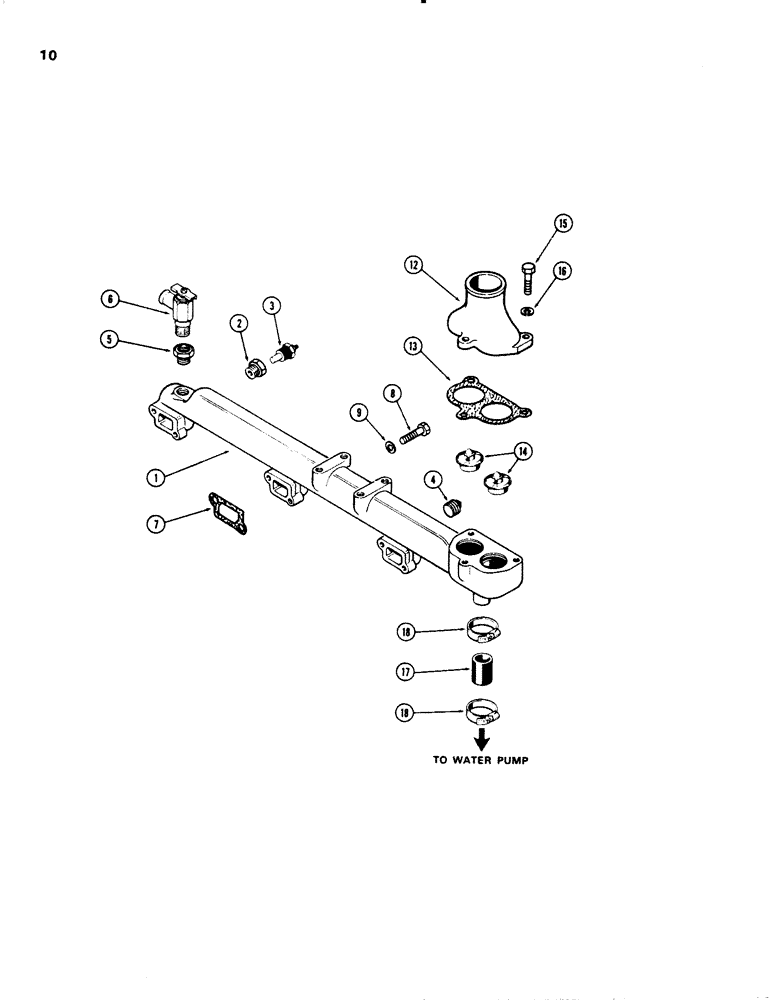

Запчасти Case W20 (010) - WATER MANIFOLD AND THERMOSTAT, (401 BD) DIESEL ENGINE (02) - ENGINE

1

A44088

MANIFOLD

- water

1шт.

2

221-1093

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducer (3/4" to 1/2")

1шт.

3

L56217

UNIT

- temperature sending (1/2" P.T.)

1шт.

4

221-845

PLUG,Hex Soc, 3/4"-14

- (3/4" P.T., hex. sckt. hd.)

1шт.

5

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducing (1/2" to 3/8")

1шт.

6

A16764

VALVE

- water shut-off (3/8" P.T.)

1шт.

7

A58637

MANIFOLD GASKET

- mainfold

3шт.

8

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Manifold Hex, 3/8"-16 x 2", G5

6шт.

9

92-6

LOCK WASHER,3/8"

6шт.

12

A58638

HOUSING

- thermostat

1шт.

13

A58639

GASKET

- thermostat housing

1шт.

14

A57641

THERMOSTAT

- (180 degree)

2шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Housing Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A58640

HOSE

- water by-pass (1-1/4" I.D. x 2-3/8")

1шт.

18

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4")

2шт.
