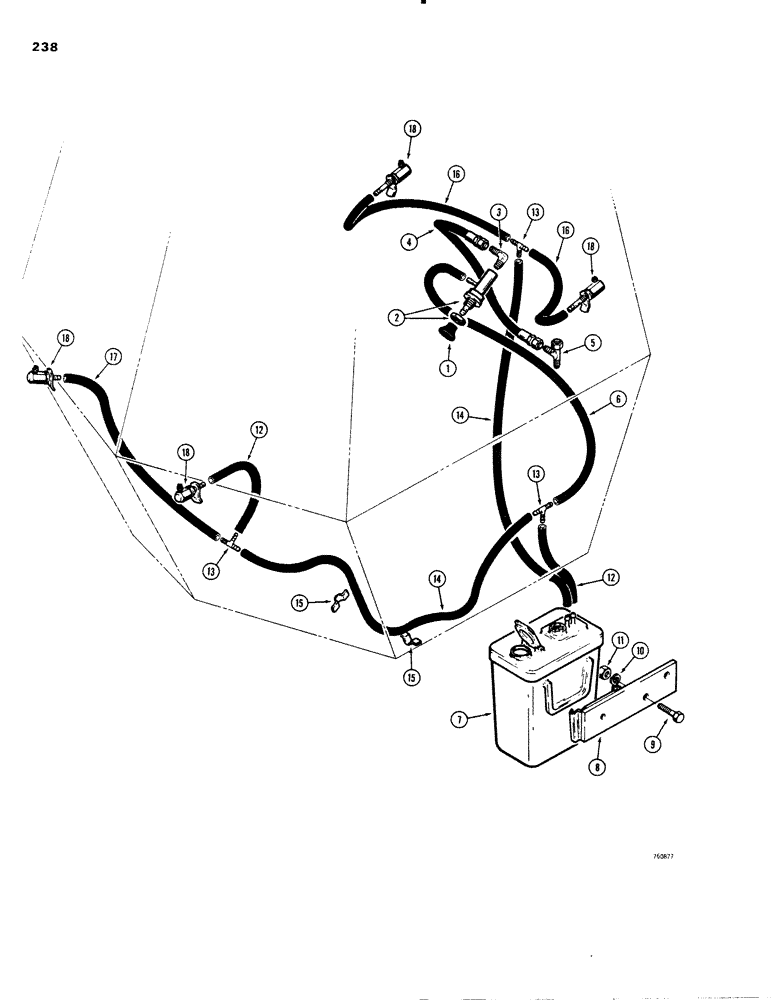

Запчасти Case W20 (238) - WINDOW WASHER (09) - CHASSIS

1

L76570

BUTTON

- valve

1шт.

2

L76569

VALVE

- window washer

1шт.

3

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

FITTING - 90 degree, male

1шт.

4

L51322

HOSE ASSY.

HOSE

1шт.

5

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- adjustable

1шт.

6

L73843

HOSE,0.16" ID x 65.00"

1шт.

7

L76568

TANK

RESERVOIR - washer

1шт.

8

L73842

BRACKET - reservoir mount

1шт.

9

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

2шт.

10

92-6

LOCK WASHER,3/8"

2шт.

11

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC

2шт.

12

L76577

HOSE

- 5/32" I.D. x 7" (40 mm x 150 mm)

2шт.

13

L76572

TEE - male, plastic

3шт.

14

L73844

HOSE

- 5/32" I.D. x 60" (40 mm x 1724 mm)

2шт.

15

L54606

CLIP

- hose stick on

4шт.

16

L73846

HOSE

- 5/32" x 18" (40 mm x 457 mm)

2шт.

17

L76579

HOSE

- 5/32" I.D. x 27" (50 mm x 686 mm)

1шт.

18

L76571

JET

WASHER - jet

4шт.
