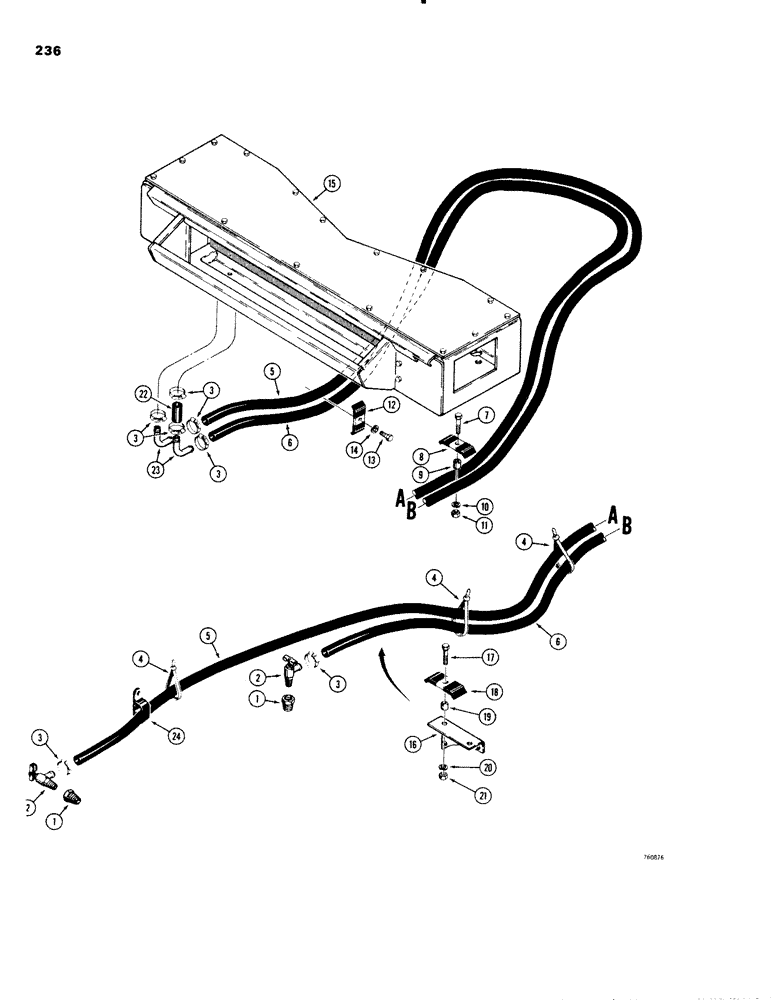

Запчасти Case W20 (236) - HEATER LINES (09) - CHASSIS

1

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING - reducer

2шт.

2

A16764

VALVE

- shut-off

2шт.

3

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - worn screw

7шт.

4

L52721

HOSE,3124.00 mm, SAE 20R3

STRAP - Hose

1шт.

5

L46646

HOSE

- 5/8" I.D. x 158" (16 mm x 4013 mm)

1шт.

6

A19943

HOSE

- 5/8" I.D. x 123" (16 mm x 3124 mm)

1шт.

7

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 5/8" - 16 NC x 2-1/2"

1шт.

8

D40236

CLAMP

- hose

2шт.

9

D29040

BUSHING

SPACER - clamp

1шт.

10

92-6

LOCK WASHER,3/8"

1шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

1шт.

12

D40236

CLAMP

- hose

1шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

14

92-6

LOCK WASHER,3/8"

1шт.

15

REF

INSTRUCTION

PLENUM - see figure 234

1шт.

16

L73911

BRACKET

- hose support

1шт.

17

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

18

D40236

CLAMP

- hose

1шт.

19

33126

BUSHING

SPACER - clamp

1шт.

20

92-6

LOCK WASHER,3/8"

1шт.

21

25-106

NUT,3/8"-16, G5

- hex., 3/8" - 16 NC x 1"

1шт.

22

A42610

LARGE HOSE

HOSE - heater, 5/8" I.D. x 2" (16 mm x 51 mm)

1шт.

23

A60823

ELBOW

FITTING - 90 degree

2шт.
