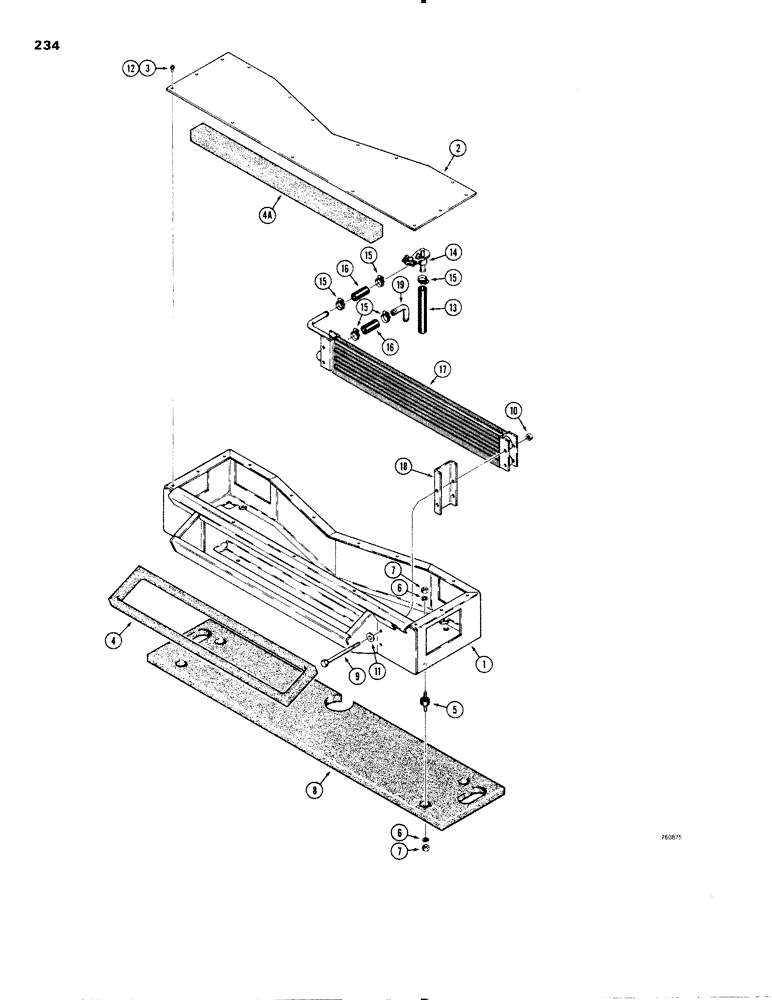

Запчасти Case W20 (234) - HEATER, PLENIUM AND RELATED PARTS (09) - CHASSIS

L71526

AIR TUBE

PLENUM ASSEMBLY - heater, Includes: Ref. 1 - 4A

1шт.

1

F93690

AIR TUBE

PLENUM

1шт.

2

F93689

COVER

- plenum

1шт.

3

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10 - 24 NC x 1/2"

2шт.

4

REF

INSTRUCTION

SEAL - 71" (1803 mm) long, cut from D70610 bulk

1шт.

4a

REF

INSTRUCTION

SEAL - 29-1/2" long (749 mm) Cut from D71366 bulk

1шт.

5

F43229

MOUNTING PARTS

MOUNT - rubber

4шт.

6

95-4

WASHER,1/4"

- med. sect. lock, 1/4"

8шт.

7

25-104

NUT,1/4"-20, G5

8шт.

8

F43529

SEAL - floor

1шт.

9

13-480

CAP,Hex, 1/4" - 20 x 5", Gr 5

HHCS - 1/2" - 20 NC x 5"

4шт.

10

131-2

NUT,1/4"-20, GB

NUT - hex., lock, 1/4" - 20 NC

4шт.

11

95-4

WASHER,1/4"

- flat, 1/4"

4шт.

12

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - #10 - 24 NC x 1/2"

13шт.

13

A42610

LARGE HOSE

HOSE - heater inlet, 5/8" I.D. x 6-1/8" (16 mm x 155 mm)

1шт.

14

F63865

VALVE

- heater temperature control

1шт.

15

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - worm screw

5шт.

16

F43183

HEATER HOSE

HOSE - heater, 5/8" I.D. x 2" (16 mm x 51 mm)

2шт.

17

F63647

CORE

- heater

1шт.

18

L71645

FILLER

- heater core

2шт.

19

A60823

ELBOW

- 90 degree

1шт.

20

D70610

GASKET

FOAM - bulk, 50' roll (15.2 metres) Not shown

1шт.

21

D71366

FOAM

- bulk, 50' roll (15.2 metres) Not shown

1шт.
