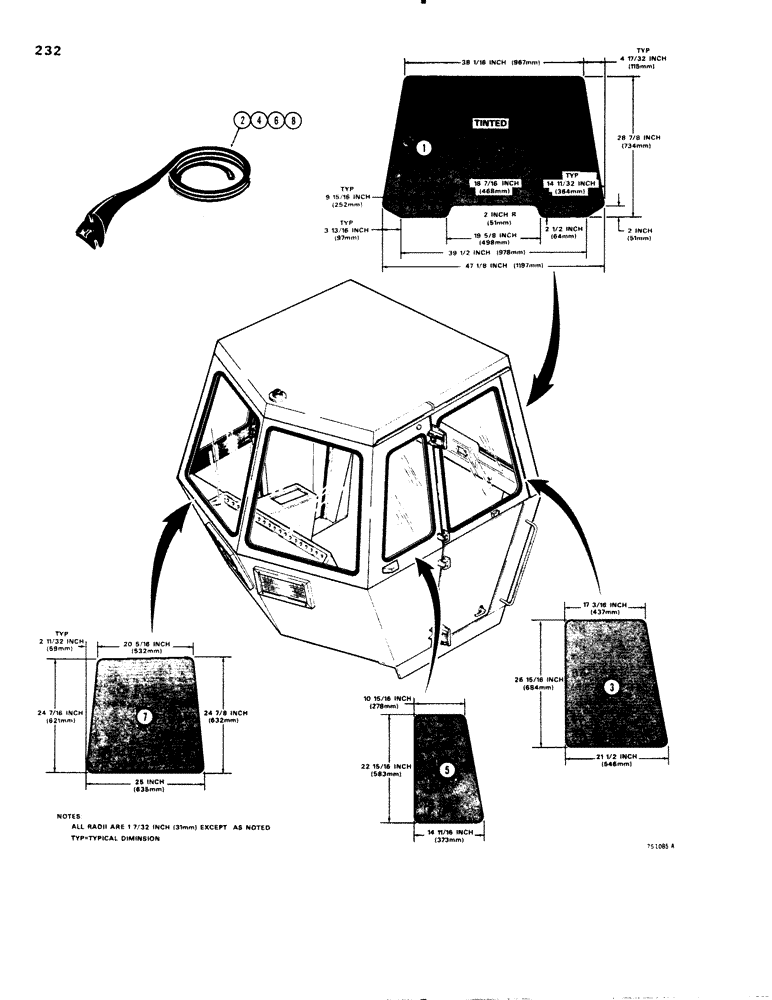

Запчасти Case W20 (232) - CAB GLASS AND MOLDING (09) - CHASSIS

1

REF

INSTRUCTION

GLASS - windshield

1шт.

2

REF

INSTRUCTION

MOLDING - windshield, 149" (3785 mm) long, Cut from D70593 bulk)

1шт.

3

REF

INSTRUCTION

GLASS - door

2шт.

4

REF

INSTRUCTION

MOLDING - door, 96" (2438 mm) long, Cut from D70593 bulk

2шт.

5

REF

INSTRUCTION

GLASS - side panel

2шт.

6

REF

INSTRUCTION

MOLDING - side panel, 73" (1854 mm) long, Cut from D70593 bulk)

2шт.

7

REF

INSTRUCTION

GLASS - rear window

2шт.

8

REF

INSTRUCTION

MOLDING - rear window, 98" (2489 mm) long, Cut from D70593 bulk

2шт.

9

D70593

MOLDING

- bulk, 50' (15.2 metres) roll, Not shown

1шт.
